MikroTIK Antenna D-5G-30D3
Quick setup guide and warranty information
Package contents
A
E
J
K

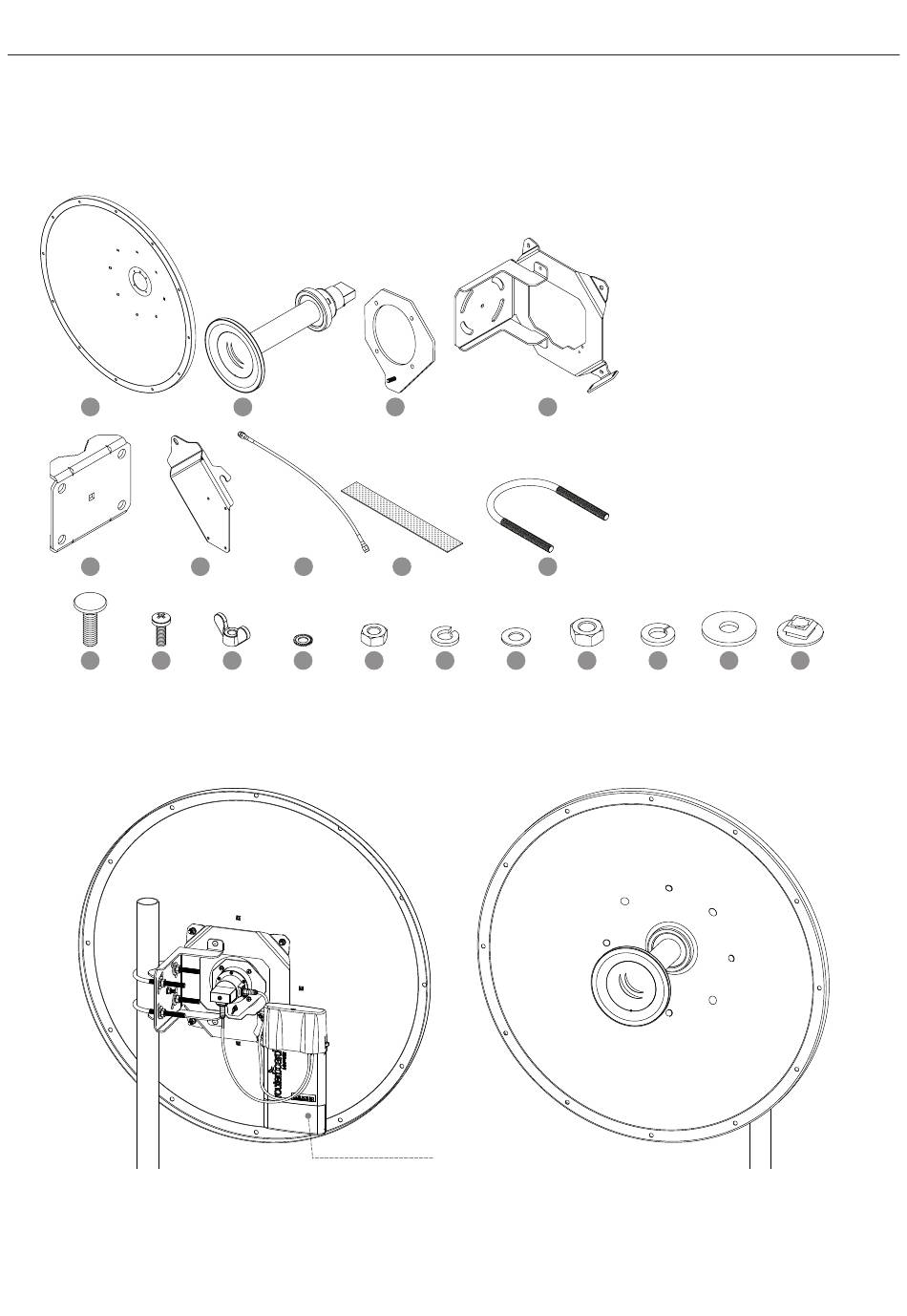

MikroTIK Antenna assembly preview
*The preview is valid if a MikroTIK RB900 series outdoor device
(sold separately) is installed.
B
F
G
L
M
MikroTIK Radio
back*
C
H
N
O
P
ITEM
A
Parabolic Dish
B
Antenna Feed
C
Feed Bracket
D
Back Plate
E
Pole Clamp
F
Case Holder
G
RF Cable
H
Self-Bonding Tape Slice
I
M8 U-Bolt
J
M6x20 Bolt
K
M4x12 Bolt
D
L
M4 Wing Nut
M
M4 Serrated Washer
N
M6 Nut
O
M6 Spring Lock Washer
P
M6 Washer
Q
M8 Nut
R
M8 Spring Lock Washer
S
M8 Fender Washer
T
Square Plug
I
Q
R
front
DESCRIPTION
QTY
1
1
1
1
1
1
2
2
2
5
4
2
5
5
5
5
4
4
4
4
S
T
Advertisement
Table of Contents
Related Manuals for MikroTik D-5G-30D3
Summary of Contents for MikroTik D-5G-30D3
- Page 1 M6 Spring Lock Washer M6 Washer M8 Nut M8 Spring Lock Washer M8 Fender Washer Square Plug MikroTIK Antenna assembly preview MikroTIK Radio back* front *The preview is valid if a MikroTIK RB900 series outdoor device (sold separately) is installed.
- Page 2 4. Attach MikroTik Radio to Back Plate Attach a MikroTik RB900 series outdoor device to Case Holder [F] using: [-] M3x8 Bolt x 4 pcs (Comes with MikroTik Radio) - see Fig. 4.1. Attach Case Holder [F] to Back Plate [D] by tting Case Holder’s hinges into the Back Plate’s ange - see Fig.
- Page 3 • Remove the plastic liner from both sides; • Stretch the tape to 2/3 of its width; • Apply half-lapped layers clockwise. The RF Cable [G] ends which are connected to MikroTIK Radio are insulated by the cover. Fit back the MikroTIK Radio cover.
- Page 4 Hardware. MikroTik warrants all RouterBOARD series equipment for the term of twelve (12) months from the shipping date to be free of defects in materials and workmanship under normal use and service, except in case of damage caused by mechanical, electrical or other accidental or intended damages caused by improper use or due to wind, rain, re or other acts of nature.
