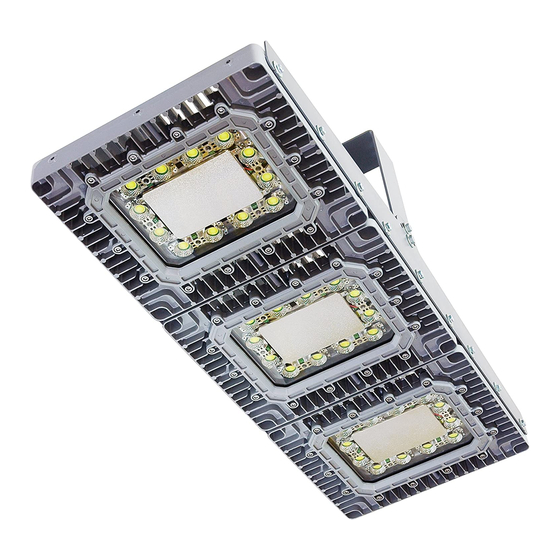

Larson Electronics EPL-HB-3X150LED-RT Instruction Manual

Class 1 Division 1 Explosion Proof 450 Watt High Bay LED Light
This explosion proof light is designed for illumination of industrial locations. It uses the latest in
solid state lighting technology for long life, low maintenance and high efficiency.
The unique design focuses the light where it is needed, giving improved efficiency over a
conventional HID luminaire.
An internal, universal input, power-factor-corrected switch-mode supply allows it to be used from any
nominal 100-277V AC 50/60 Hz power supply without any variation in light output.
WARNING
To avoid the risk of fire, explosion or electric shock, this product should be installed, inspected
and maintained by a qualified electrician only, in accordance with all applicable electrical codes.
To avoid electric shock:
•
Be certain electrical power is OFF before and during installation and maintenance.
•
Luminaire must be connected to a wiring system with an equipment-grounding conductor.
To avoid explosion:
•
Make sure the supply voltage is within the luminaires' voltage rating.
•
Ensure the marked T rating is less than the ignition temperature of the Hazardous
Atmosphere.
•
Do not operate in ambient temperatures above those indicated on the luminaire nameplate.
•
Do not operate if the lens is cracked or damaged. All fasteners should be properly seated.
For supply connections, use wire rated for at least 110°
C Recommended mounting height is 15-25 feet.
MOUNTING
This fixture offers an adjustable mounting system that allows it to be mounted to any
flat surface including walls and ceilings. Three heavy duty bolts are used to mount the fixture to the
surface through predrilled holes on mount. Hole diameter is .563". Fixture is heavy - two people and
capable equipment are required for hanging fixture.
Fixture angle can be adjusted by loosening the set screws on either side of mount. Swap outer bolts
to move mount in opposite direction. Keep center bolt in place! Otherwise fixture will free from mount.
Use appropriate wiring methods for the area following all NEC, local, and state electrical codes.
Conduit attaches to the junction box on the back for wiring.
Larson Electronics, LLC
Fixture - Paint Spray Booth Approved
Instruction Manual
Phone: (800) 369-6671

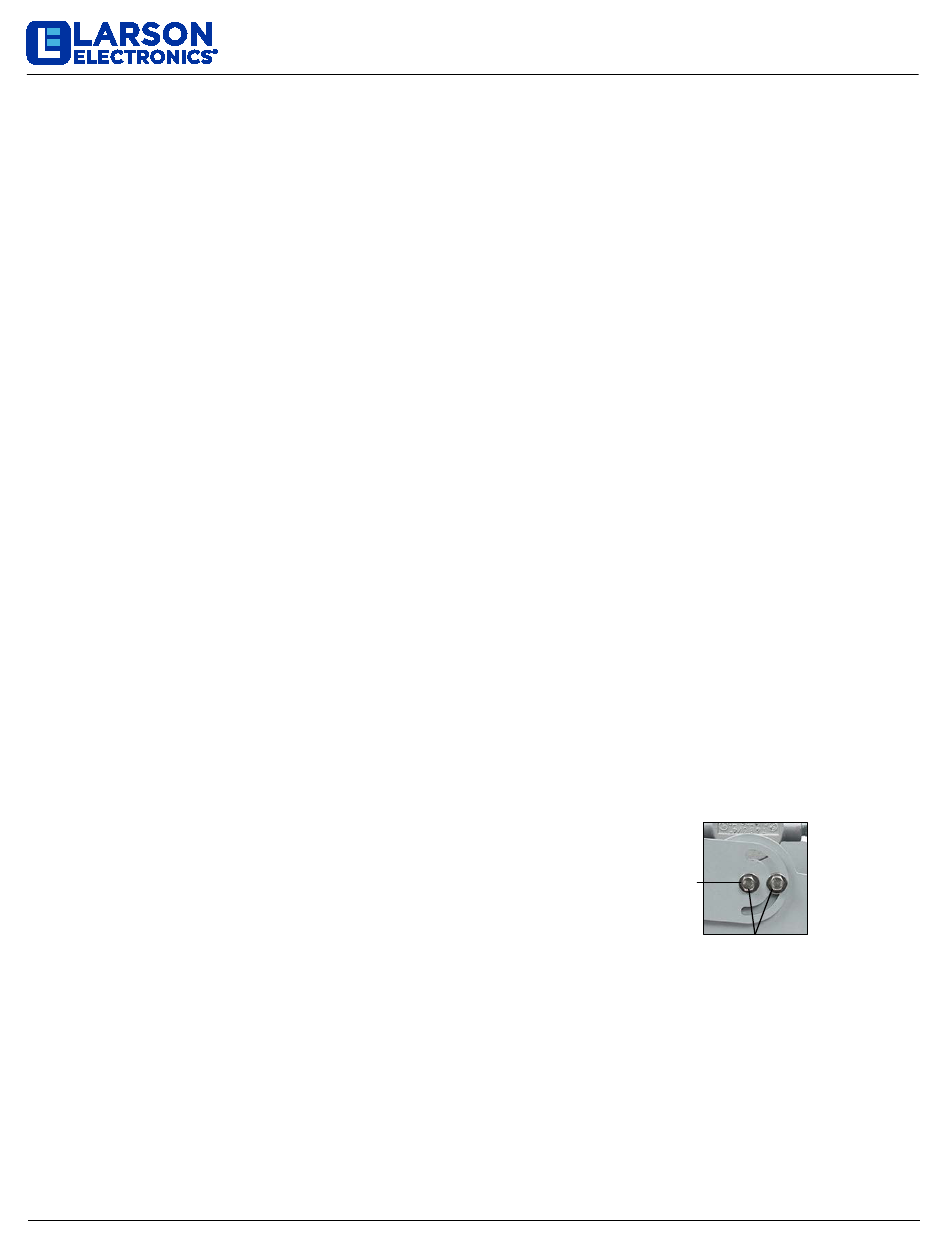

CENTER BOLT
DO NOT REMOVE COMPLETELY
WHILE MOUNTED TO SURFACE
Fax: (903) 498-3364
EPL-HB-3X150LED-RT
ADJUSTMENT BOLTs
www.larsonelectronics.com 1 of 2
