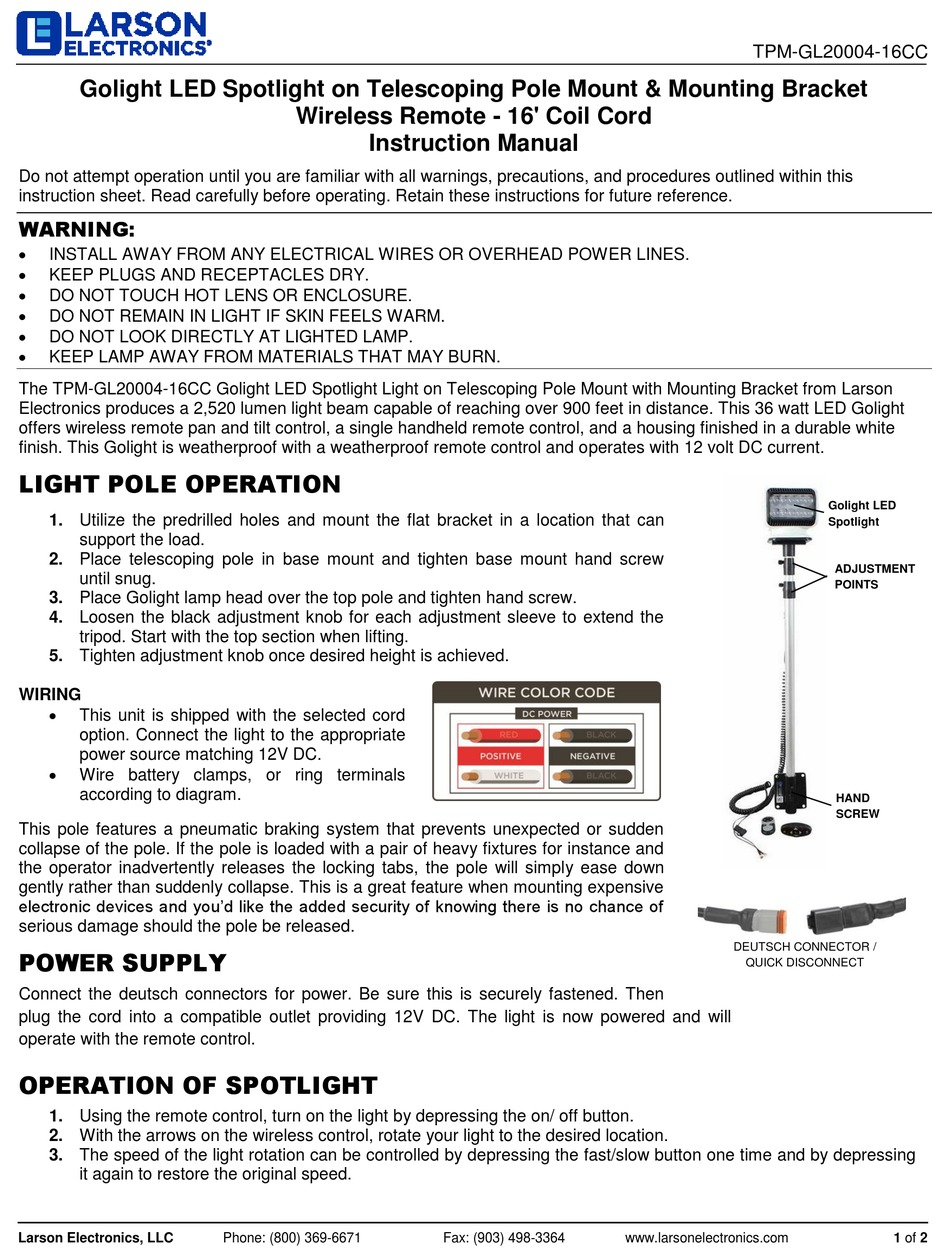

Larson Electronics Golight Instruction Manual

Golight LED Spotlight on Telescoping Pole Mount & Mounting Bracket
Do not attempt operation until you are familiar with all warnings, precautions, and procedures outlined within this
instruction sheet. Read carefully before operating. Retain these instructions for future reference.
WARNING:

INSTALL AWAY FROM ANY ELECTRICAL WIRES OR OVERHEAD POWER LINES.

KEEP PLUGS AND RECEPTACLES DRY.

DO NOT TOUCH HOT LENS OR ENCLOSURE.

DO NOT REMAIN IN LIGHT IF SKIN FEELS WARM.

DO NOT LOOK DIRECTLY AT LIGHTED LAMP.

KEEP LAMP AWAY FROM MATERIALS THAT MAY BURN.

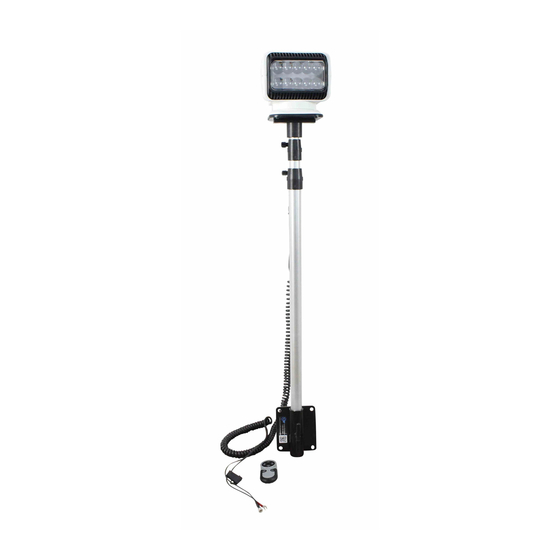

The TPM-GL20004-16CC Golight LED Spotlight Light on Telescoping Pole Mount with Mounting Bracket from Larson
Electronics produces a 2,520 lumen light beam capable of reaching over 900 feet in distance. This 36 watt LED Golight
offers wireless remote pan and tilt control, a single handheld remote control, and a housing finished in a durable white
finish. This Golight is weatherproof with a weatherproof remote control and operates with 12 volt DC current.
LIGHT POLE OPERATION
1. Utilize the predrilled holes and mount the flat bracket in a location that can
support the load.
2. Place telescoping pole in base mount and tighten base mount hand screw
until snug.
3. Place Golight lamp head over the top pole and tighten hand screw.
4. Loosen the black adjustment knob for each adjustment sleeve to extend the
tripod. Start with the top section when lifting.
5. Tighten adjustment knob once desired height is achieved.
WIRING

This unit is shipped with the selected cord
option. Connect the light to the appropriate
power source matching 12V DC.

Wire battery clamps, or ring terminals
according to diagram.
This pole features a pneumatic braking system that prevents unexpected or sudden
collapse of the pole. If the pole is loaded with a pair of heavy fixtures for instance and
the operator inadvertently releases the locking tabs, the pole will simply ease down
gently rather than suddenly collapse. This is a great feature when mounting expensive
electronic devices and you'd like the added security of knowing there is no chance of
serious damage should the pole be released.
POWER SUPPLY
Connect the deutsch connectors for power. Be sure this is securely fastened. Then
plug the cord into a compatible outlet providing 12V DC. The light is now powered and will
operate with the remote control.
OPERATION OF SPOTLIGHT
1. Using the remote control, turn on the light by depressing the on/ off button.
2. With the arrows on the wireless control, rotate your light to the desired location.
3. The speed of the light rotation can be controlled by depressing the fast/slow button one time and by depressing
it again to restore the original speed.
