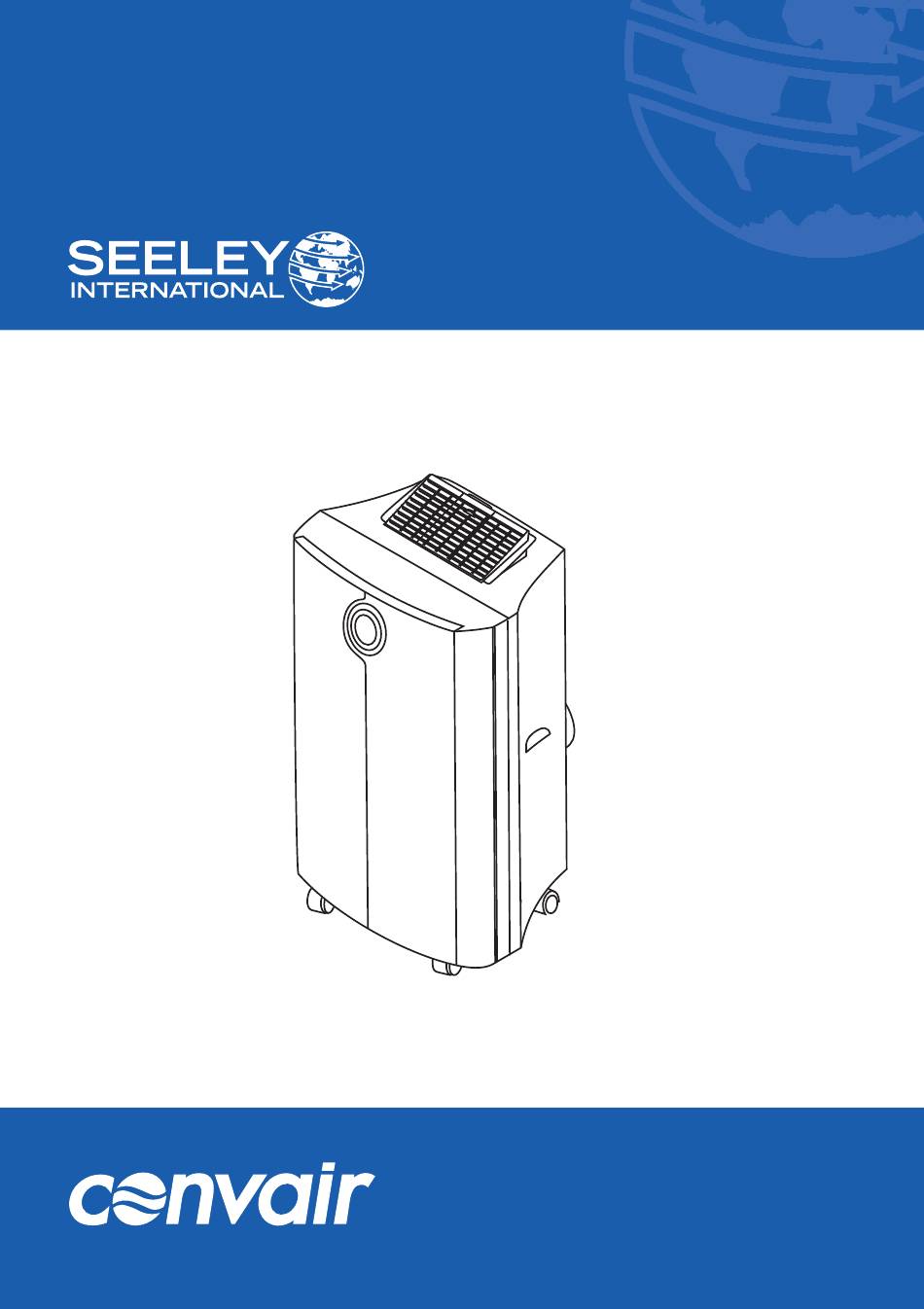

- Page 1 OWNER’S MANUAL Portable Refrigerated Air Conditioner CP15CS1 (English) (CP15CS1) ®...
-
Page 2: Table Of Contents
CONTENTS Introduction ........1 Safety ..........2 Component location......3 Installing the exhaust hose ....4 Control panel ........5 Remote control ........6 Operation........7-8 Maintenance ........9 Troubleshooting ......10 Specifications.........11 Warranty ........12 Please read these instructions prior to using the appliance and save them for future reference. Waste electrical products must not be disposed of with household waste. -
Page 3: Introduction
Personal Cooling Your Convair cooler is a portable air conditioning unit that supplies refrigerated air to a personal area within a room. It is not intended to function as a house or room air conditioner. SEELEY INTERNATIONAL – OWNER’S MANUAL... -
Page 4: Safety
SAFETY Electrical Safety (cont) For indoor use only. Transport the air conditioner in an Caution! before connecting the upright position only, or leave it in an electrical power cord to a power outlet, upright position for at least 2 hours check that the air conditioner voltage before use (Fig 1). -
Page 5: Component Location
Air Outlet Display Panel Control Panel TIMER TIMER Remote Control Window Attachment Air Filter Rating Label Exhaust Fitting (window end) Handle Exhaust Air Outlet Air Intake Cord Exhaust Hose Storage Door Drain Screws (2) Power Cord SEELEY INTERNATIONAL – OWNER’S MANUAL... -
Page 6: Installing The Exhaust Hose
INSTALLING THE EXHAUST HOSE Step 1: Fit the exhaust hose to the rear Note! The minimum distance required panel outlet by screwing the hose in a from the operating air conditioner to clockwise direction. Fit the window adaptor any obstructing objects or walls is onto the hose by rotating the adaptor in a 50cm (Fig 6). -
Page 7: Control Panel
Mode Select button button Press to enter the Press to cycle from timer setting mode Cooling and Fan and time modes. NOTE! To avoid damage to the control panel, do not operate with sharp objects. SEELEY INTERNATIONAL – OWNER’S MANUAL... -
Page 8: Remote Control
REMOTE CONTROL Signal transmission point Power ON / OFF button TIMER TIMER Temperature / Timer adjust buttons Fan Speed button TIMER TIMER TIMER ON button TIMER OFF button Mode buttons Sleep mode button (Cool-Dehumidify-Fan) Battery compartment CLOCK setting button Battery cover SLIDE DOWN TO REVEAL BUTTONS If there are two of the same air... -
Page 9: Operation
Each press will cycle the fan speed between low, medium, high and Auto (when in COOL mode). Auto fan mode selects the fan speed depending on the temperature. Auto mode is not available for FAN mode. SEELEY INTERNATIONAL – OWNER’S MANUAL... - Page 10 OPERATION cont. Air Conditioner Features (flashing bar) will move forward in 30 minute blocks until it reaches the OFF Step 7: Your air conditioner has a SLEEP time (Fig 13). mode, activated by pressing the button on the control panel or remote control. SLEEP Repeat OFF and ON Timer - when unit is mode will change the fan speed to low and increase the set temperature by 1°C each...
-
Page 11: Maintenance
Operate the unit in fan only mode for a few hours, to thoroughly dry the inside. • Clean or change the filters. • Unplug and carefully store the power cord and plug end. • Replace in the original carton or cover for storage. SEELEY INTERNATIONAL – OWNER’S MANUAL... -
Page 12: Troubleshooting
TROUBLESHOOTING Problem Check The air conditioner does not Is the air conditioner plugged in? run. Is there a power failure? Is the "WATER FULL" error code flashing? Drain the tank as shown (Fig 15). Is the room temperature below the set temperature? The air conditioner has little Is there direct sunshine? Remember to close... -
Page 13: Specifications
(width / depth / height) † Based on manufacturer's test results using the Air Enthalpy method WIRING DIAGRAM As a policy of continual product improvement, this manual, its contents and specifications are subject to change without notice. SEELEY INTERNATIONAL – OWNER’S MANUAL... -
Page 14: Warranty
WARRANTY In this warranty: or us means Seeley International Pty Ltd ABN 23 054 687 035, and our contact details are set out at the end of this warranty; means you, the original end-user purchaser of the Goods; Supplier means the authorised distributor or retailer of the Goods that sold you the Goods in Australia;... - Page 15 Convair SUPERCOOL Model CP15CS1 Purchased from ............................Date purchased ../../..Service Department Seeley International Pty Ltd 112 O'Sullivan Beach Road, Lonsdale, South Australia 5160 Customer service centre in Australia: 1300 526 410 Website: www.seeleyinternational.com SEELEY INTERNATIONAL – OWNER’S MANUAL...
- Page 16 It is the policy of Seeley International to introduce continual product improvement. Accordingly, specifications are subject to change without notice. Please consult with your dealer to confirm the specifications of the model selected. Warranty Service Australia 1-300-526-410 seeleyinternational.com convair.net.au 00230901-A...
