Genelec AIC25 Datasheet

AIC25

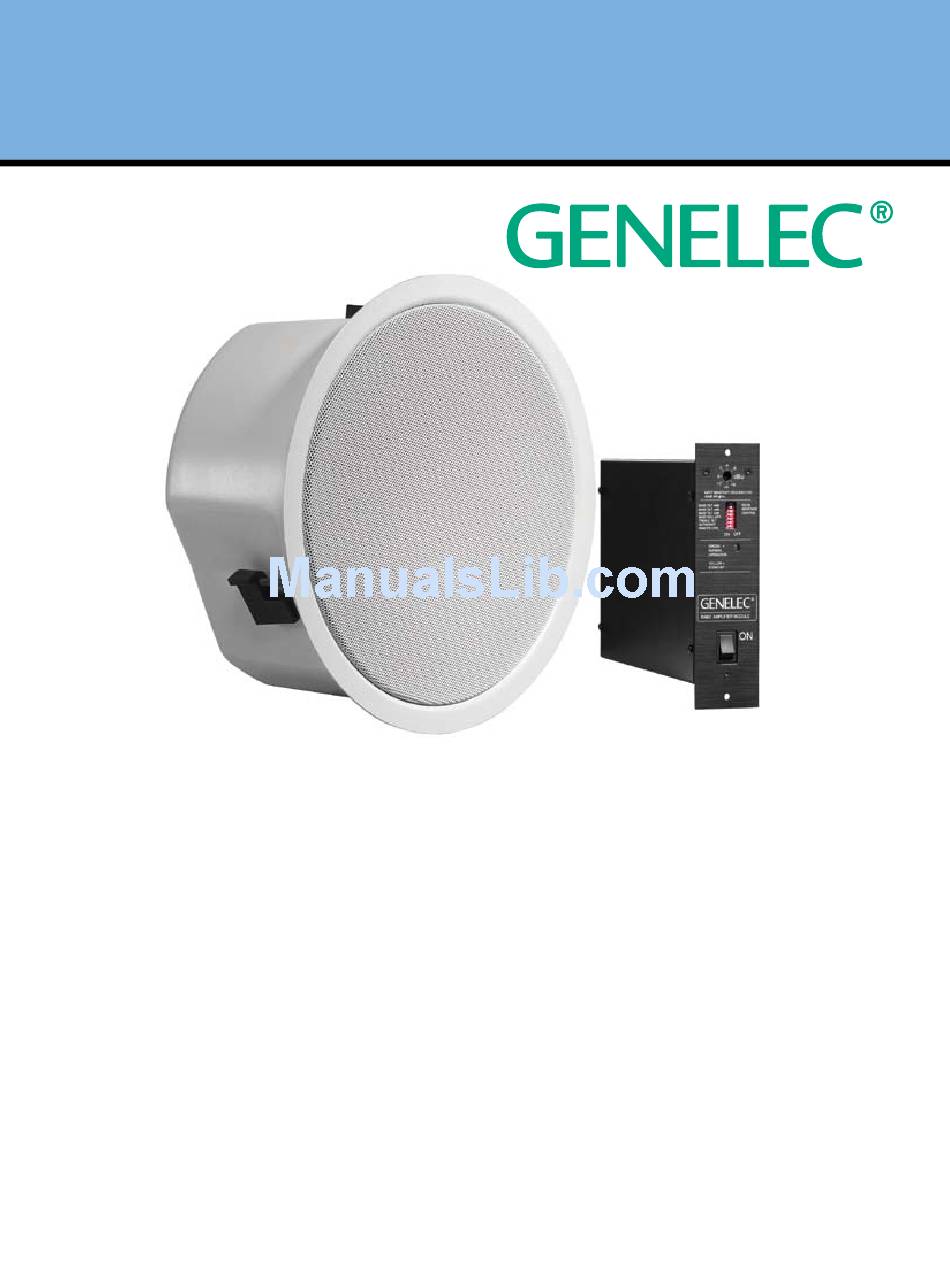

Genelec's new AIC25 Active In-Ceiling
loudspeaker system consists of a two-way
loudspeaker enclosure and a matched
remote amplifier module RAM2. It has
been designed to the same rigorous stan-
dards as Genelec's high-performance HT
series active Home Theater loudspeak-
ers, ensuring that no other in-ceiling loud-
speaker of similar size can match the low
distortion, neutrality and sound pressure
capability of the AIC25.
The AIC25 loudspeaker has a 5" bass
driver loaded with a 4.7 liter enclosure and
a 3/4" treble driver giving a precise and
uncolored acoustic response. The RAM2
remote amplifier module includes an active
crossover circuitry and 40 + 40 W power
amplifiers for the bass and treble driver
Data Sheet
Genelec AIC25
Active In-Ceiling Loudspeaker
respectively. RCA and balanced XLR line
level input connectors and adjustable input
sensitivity ensure convenient connection
to all types of decoders. Connectors for
remote power/standby mode switching are
also provided. The active crossover unit
allows accurate Bass Tilt, Bass Roll-Off
and Treble Tilt adjustments for fine-tuning
the sound balance to suit various acousti-
cal conditions and listener tastes.
The solid, carefully dimensioned enclo-
sure gives far better control of bass
reproduction than typical in-ceiling loud-
speakers. The loudspeaker enclosure
requires only 158 mm (6 / ") of free depth
3
16
inside the ceiling structure and can easily
be retrofitted to existing construction and
the visible parts of the loudspeaker can be
painted to match the colour of the ceiling.
The RAM2 amplifier module can be
rack mounted with its dedicated Rack
Mount Kit (optional) or placed on a shelf
or into a cabinet. The wiring between the
amplifier module and loudspeaker can be
made of standard 18 to 10 gauge 4-con-
ductor wire. Expensive proprietary cables
are not needed. Each loudspeaker/ampli-
fier combination has been carefully tested
and matched together before delivery for
maximum accuracy.
Visit Genelec's Home Theater website
www.genelec-ht.com for more information
of Genelec's Home Theater loudspeaker
line.
