Summary of Contents for Genelec AIC25

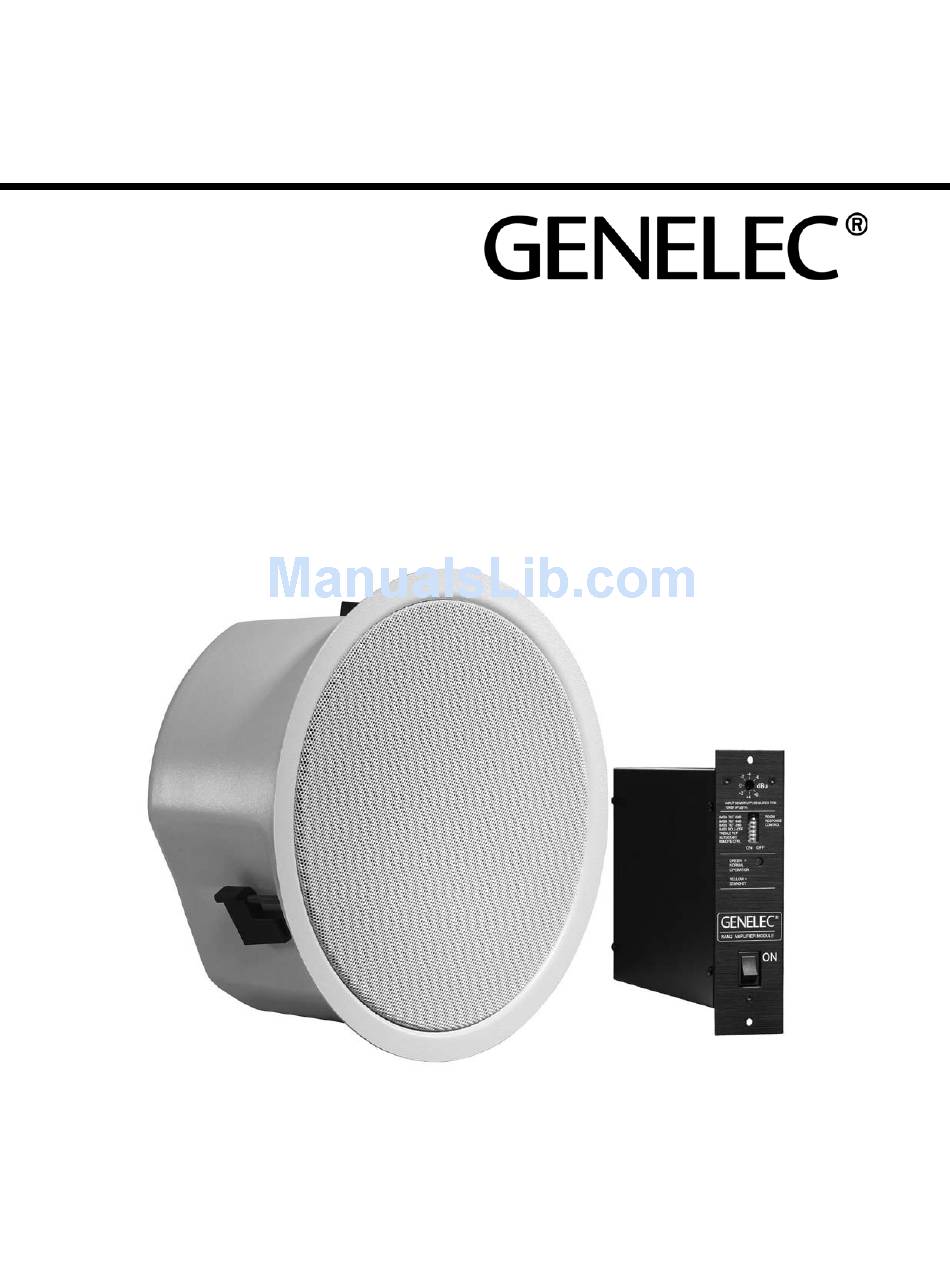

- Page 1 AIC25 Operating Manual Genelec AIC25 Active In-Ceiling Loudspeaker...
- Page 2 Genelec recommends that you use the serv- ices of an authorized installation specialist or other competent and experienced installa- tion company for the installation of the AIC25 system. Ask your local Genelec dealer for recommended installation companies in your region.
- Page 3 Connect the loud- speaker cables as described above in chap- ter “Cabling”. Lift the AIC25 enclosure into the hole and turn the Phillips 2 screws in each corner of the front baffle clockwise so that the mount- ing tabs rotate outwards.
- Page 4 Do not use both inputs at the same time. Consult your Genelec dealer for the choice of signal cables. Space requirement for the RAM2 amplifier...
- Page 5 -2 dB ON 0 dB (All OFF) -4 dB ON 0 dB (All OFF) EC Declaration of Conformity This is to certify that the Genelec AIC25 Active In-Ceiling Loudspeaker conforms to the following standards: Safety: EN / IEC 60065 EMC:...
- Page 6 *Note that the cable connectors require at least 100 mm (4”) of space behind the amplifier Genelec Document D0064R002. Copyright Genelec Oy 11.2006. All data subject to change without prior notice Figure 7. The main dimensions of the RAM2 amplifier AmplIfIeR SectIoN AIc25 ≤...
