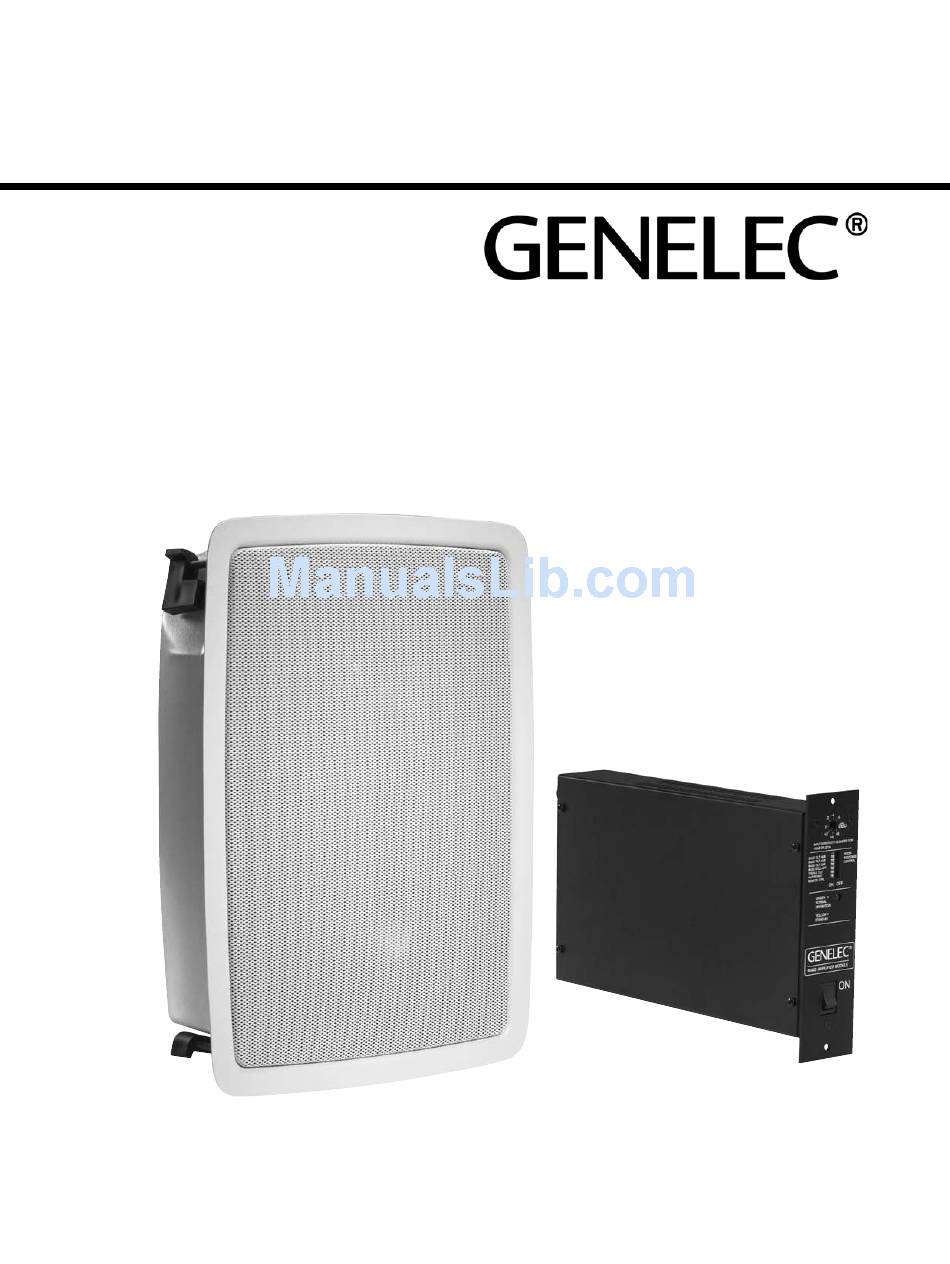

- Page 1 AIW25 Operating Manual Genelec AIW25 Active In-Wall Loudspeaker...
- Page 2 DCW™ is to reduce the off-axis radiated sound energy, thereby minimizing the reflec- tions from the side walls, floor and ceiling. EC Declaration of Conformity This is to certify that the Genelec AIW25 Active In-Wall Loudspeaker conforms to the following standards: Safety: EN / IEC 60065...
- Page 3 See Table 1 for recommended cable gauges. The connectors accept a cable up to 6 mm (9 gauge) thick. If you are installing the AIW25 enclosure to an existing wall, examine the walls thoroughly for the shortest and least obstructed cable route.
- Page 4 ID number as the amplifier it will be driven by. Connect the loudspeaker cables as described above in chapter “Cabling”. Lift the AIW25 enclosure into the hole and turn the Phillips 2 screws in each corner of the front baffle clockwise so that the mount- ing tabs rotate outwards.
- Page 5 “STANDBY” mode. When the amplifier is switched to “ON” mode, the LED changes to green colour. Automatic protection circuits The AIW25 system has protection circuits against loudspeaker driver thermal overload and amplifier overheating. The protection system resets automatically so the user only has to turn the input level down to ensure that it does not reactivate.
- Page 6 *Note that the cable connectors require at least 100 mm (4”) of space behind the amplifier Genelec Document D0064R001. Copyright Genelec Oy 11.2006. All data subject to change without prior notice Figure 8. The main dimensions of the RAM2 amplifier AmplIfIeR SectIoN AIW25 ≤...
