StarTech.com MOD4POWERNA Quick Start Manual

North American Power Module BOX4MODULE | BEZ4MOD

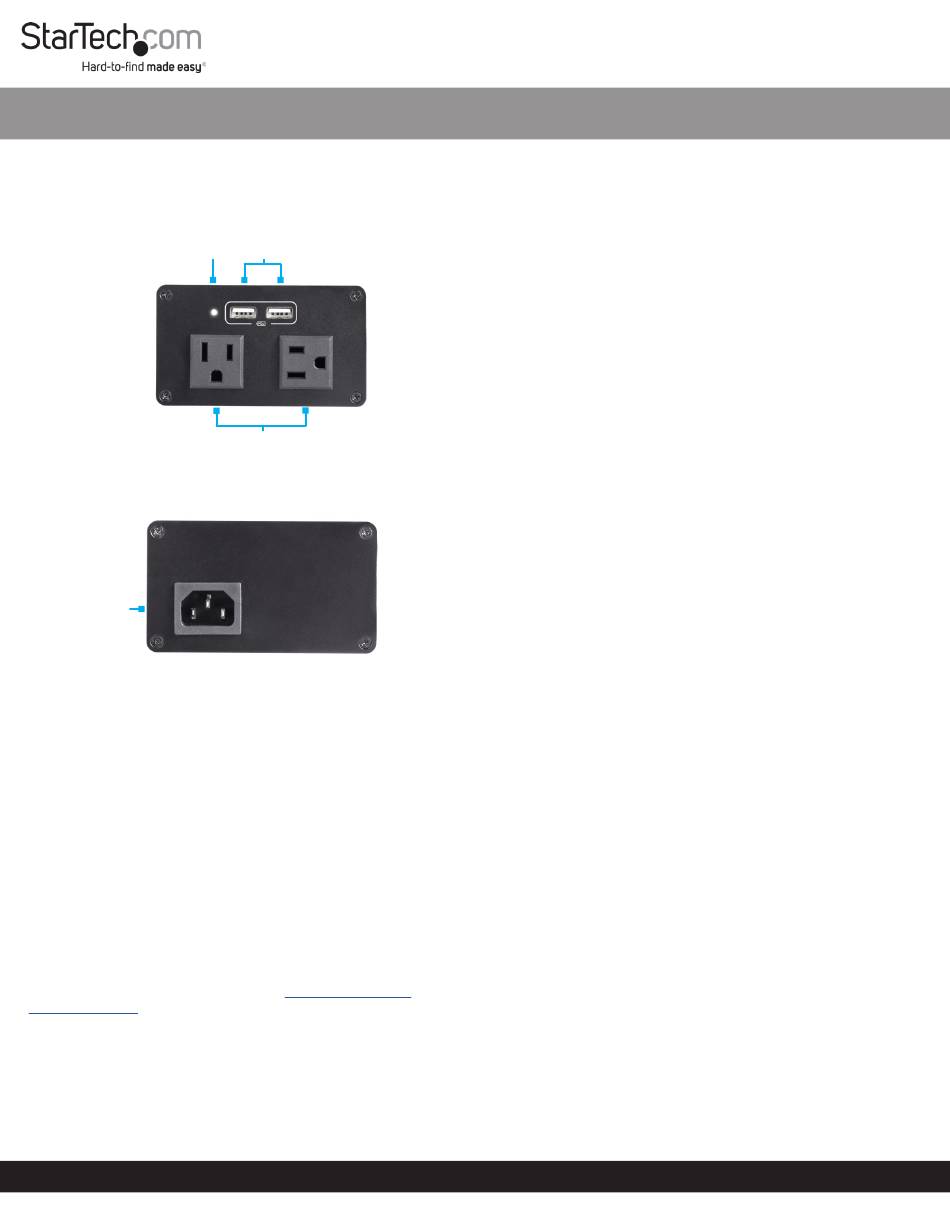

Product Design
Actual product may vary from photos

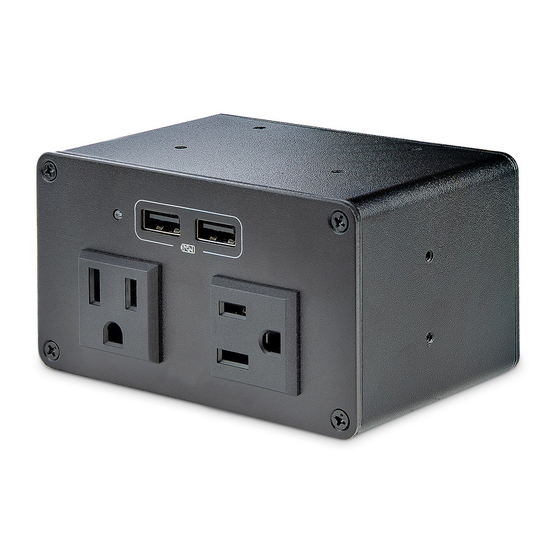

Front View
Indicator
Rear View
C14 Power
Receptacle
Package Contents
• Power Module x 1
• Power Cord x 1
• Installation Kit x 1
• Mounting Bracket x 1
• Mounting Bracket Screws (M5 x 20 mm) x 4
• Module Screws (#6-32 x 3/16) x 8
• User Manual x 1
SKU: BNDBXHDBTPNA, BNDBXDOCKPNA, or BNDBXAVHDPNA
• Conference Table Box x 1
• Installation Kit x 1
• Die Cut Outline x 1
• Wing Nut Bracket
Requirements
For the latest requirements, please visit
MOD4POWERNA.
Installation
See the Installation section in the Modular Table Box
(BOX4MODULE) or Single-Module Table Box (BEZ4MOD) User
Manual for instructions on how to install a module into a table
surface.
For the latest information, specifications, and support visit www.startech.com/MOD4POWERNA.
LED USB A
Ports
AC Electrical
Outlets
www.startech.com/
(Optional) Mounting
Note: StarTech.com is not responsible for any damages related to
the installation of this product.
Installation Requirements:
• Mounting Bracket x 1
• Bracket Screws (M5 x 20 mm) x 4
• Module Screws (#6-32 x 3/16) x 8
• Writing Utensil x 1
• Phillips Head Screwdriver x 1
Note: Before mounting the Module, take into consideration
the mounting orientation of the Module. This will affect the
orientation of the ports (top and bottom).
1. Align the Mounting Bracket with the four Mounting Holes on
the Module.
Note: The Module has four Mounting Holes on each side,
which gives you two different mounting options.
2. Insert the Bracket Screws (x4) through the Mounting Bracket
and into the Mounting Holes.
3. Tighten the Mounting Screws using a Phillips Head
Screwdriver, be careful not to overtighten.
4. Before installing the Mounting Bracket, measure and position
the Mounting Bracket in the desired location. The Module can
be mounted on a vertical or horizontal surface.
Note: Depending on the surface you are using to install the
product, you may need to drill pilot holes prior to installing the
screws into the surface.
5. Mark the location of the Mounting Holes using a Writing
Utensil. These marks can be used as a guide to indicate where
the Mounting Screws will be installed in the surface.
6. Install the Bracket Screws (x4) through the Mounting
Bracket and into the mounting surface, using a Phillips Head
Screwdriver. Be careful not to overtighten.
Warning: To prevent the Mounting Screws from penetrating
the opposite side of the installation surface, be conscious of
the size of the Mounting Screw compared to the depth of the
surface.
Powering the Module
1. Connect the Power Cord to the C14 Power Receptacle, on the
bottom of the Power Module.
2. Connect the other end of the Power Cord to an AC Electrical
Outlet.
Connecting a Device to the Module
USB-A Port
The USB-A Port will charge up to two USB Devices (e.g. Cell
Phone, Laptop, Tablet, etc.).
Note: The USB-A Ports support Smart Charging (Smart IC).
Smart Charging supports a wide variety of charging protocols (e.g.
Battery Charging 1.2, Apple, Samsung™, etc.).
Quick-Start Guide
SKU #: MOD4POWERNA
Manual Revision: 11/09/2018
