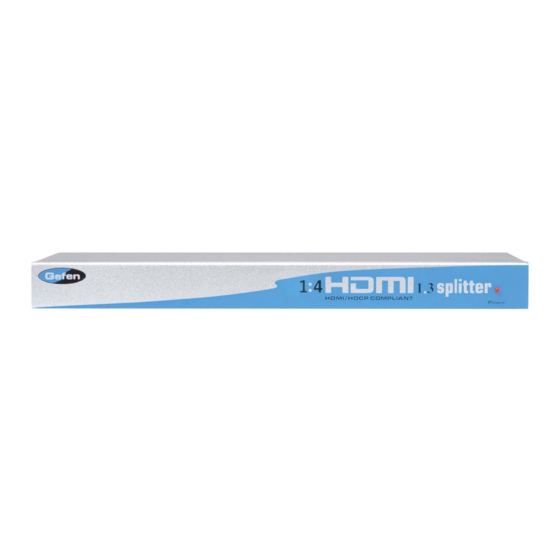

- Page 1 1x4 HDMI Splitter U S E R M A N U A L www.gefen.com...
- Page 2 Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 1x4 HDMI Splitter is a trademark of Gefen Inc. HDMI is a trademark of hdmi.org ©...
-
Page 3: Table Of Contents
Introduction Features Panel Descriptions Connecting and Operating the 1x4 HDMI Splitter Specifi cations Warranty TABLE OF CONTENTS... -
Page 4: Introduction
Our Commitment Gefen will always offer the fi nest quality product at the best possible price. Included in that price is a lifetime support from a team of outstanding engineers. The ex•tend•it 1x4 HDMI Splitter allows one HDTV HDMI device to be distributed easily in to four HDTV HDMI compatible monitors or projectors. -
Page 5: Features
FEATURES Features • Easily distributes HDMI HDTV devices on up to four DVI/HDMI displays with zero signal loss • Allows simultaneous display • Maintains 480p, 720p, 1080i, and 1080p resolutions • Maintains highest HDMI single link video resolution for beautiful HDTV •... -
Page 6: Panel Descriptions
PANEL DESCRIPTIONS... -
Page 7: Connecting And Operating The 1X4 Hdmi Splitter
CONNECTING AND OPERATING THE 1X4 HDMI SPLITTER How to Connect the 1x4 HDMI Splitter to your devices 1 Connect the supplied cable from the HDTV HDMI sources into the 1x4 HDMI Splitter input. HDMI to HDMI cable for HDMI source or HDMI to DVI cable for DVI source. 2 Connect the cables from your displays (monitor or projector) into the HDMI outs of the 1x4 HDMI Splitter. - Page 8 DIP SWITCH GUIDELINES Inside the 1x4 HDMI Splitter is a bank of Dip Switches. Below is a table describing their functions. By default, all switches are set to the Off position. Dip Switch # Name Switching Delay On Board EDID IR Code Dip Switch IR Code Dip Switch Unused...
-
Page 9: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth...2.25 GHz Input Video Signal...1.2 volts p-p Input DDC Signal...5 volts p-p (TTL) Single Link Range...1080p/60 10 bit color depth, 1920x1200 HDMI Connector...type A 19 pin female Power Supply...5VDC Power Consumption...10 watts (max) Dimensions...12”W x 1.25”H x 4.25”D Shipping Weight...5 lbs.
