- Page 1 Customer Service 20600 Nordhoff Street Chatsworth CA 91311 Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. HDTV Splitter is a trademark of Gefen Inc.
-
Page 2: Table Of Contents
Introduction Features Panel Descriptions Connecting and Operating the HDTV Splitter Specifi cations Warranty TABLE OF CONTENTS... -
Page 3: Introduction
DVI cable to regenerate the DVI signal. Our Commitment Gefen will always offer the fi nest quality product at the best possible price. Included in that price is a lifetime of free support from a team of outstanding engineers. -
Page 4: Features
Features • Connects one HDTV DVI output to two HDTV DVI compatible monitors or projectors • Allows two DVI display monitors to be connected at the same time to the same video source • Extends any DVI compliant device by regenerating the DVI signal •... -
Page 5: Panel Descriptions

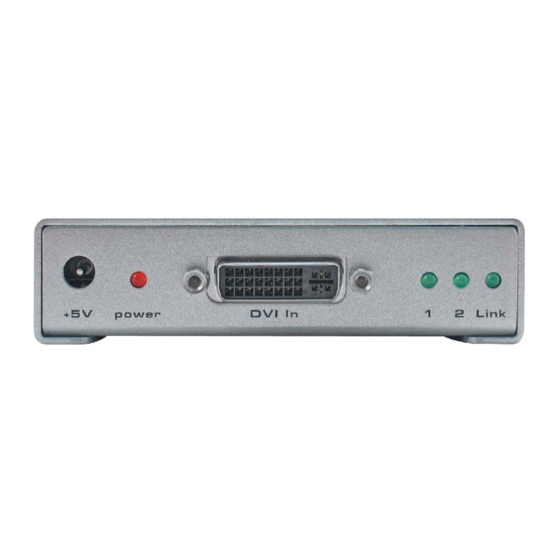

PANEL DESCRIPTIONS 5v Power DVI In Input DVI Out DVI Out... -
Page 6: Connecting And Operating The Hdtv Splitter
Connecting and Operating the HDTV Splitter How to Connect the HDTV Splitter to your devices 1- Connect the supplied DVI cable from the HDTV DVI device into the HDTV Splitter Input. 2- Connect the cable from your fi rst display (monitor or projector) into the DVI Out 1 slot in the back of the HDTV Splitter 3- Connect the cable from your second display (monitor or projector) into the DVI Out 2 slot in the back of the HDTV Splitter... -
Page 7: Specifications
SPECIFICATIONS Video Amplifi er Bandwidth ... 1.65 GHz Input Video Signal ... 1.2 volts p-p Input DDC Signal ... 5 volts p-p (TTL) Maximum Single Link Range ... 1920 x 1200, 1080p DVI Input/Output Connector Type ... DVI-D Power Consumption ... 15 Watts (max.) Power Supply ... -
Page 8: Specifi Cations
If equipment fails because of such defects and Gefen Inc. is notifi ed within one (1) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
