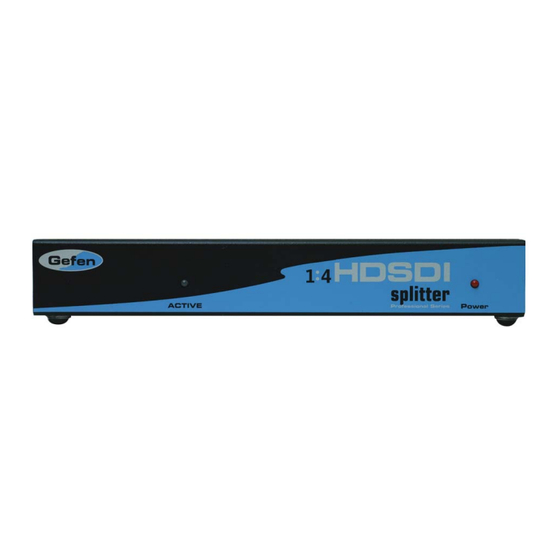

- Page 1 HD-SDI 1x4 Splitter U S E R M A N U A L www.gefen.com...
- Page 2 Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 1x4 HD-SDI Splitter is a trademark of Gefen Inc. © 2007 Gefen Inc., All Rights Reserved...
-
Page 3: Table Of Contents
Introduction Features Panel Descriptions Connecting and Operating the 1x4 HD-SDI Splitter Specifi cations Warranty TABLE OF CONTENTS... -
Page 4: Introduction
INTRODUCTION Congratulations on your purchase of the ex•tend•it 1x4 HD-SDI Splitter. Your complete satisfaction is very important to us. Splits one HD-SDI Source Signal Four Times 1 SDI Input = 4 SDI Outputs for Real-Time Multi-Viewing The 1:4 HD-SDI Distribution Amplifi er is a reliable video splitting device that allows a single SDI video source to send data to four HD-SDI displays at the same time. -
Page 5: Features
FEATURES Features • Easily distribute one HD-SDI source to four HD-SDI displays • Streamlines equipment as unnecessary hardware is eliminated • Distributes video instantaneously Includes: (1) 1:4 HD-SDI Distribution Amplifi er (1) 5v Power Supply (1) Users Manual... -
Page 6: Panel Descriptions
PANEL DESCRIPTIONS Active Video Power LED Indicator Indicator Connects to SDI Inputs 5V Power SDI Outputs Supply... -
Page 7: Connecting And Operating The 1X4 Hd-Sdi Splitter
CONNECTING AND OPERATING THE 1x4 HD-SDI SPLITTER How to Connect the 1x4 HD-SDI Splitter to your devices 1 Connect your HD-SDI input into Input 1 on the 1x4 HD-SDI Splitter. 2 Connect your displays into outputs 1 thru 4. 3 Connect the 5VDC power supply into the 1x4 HD-SDI Splitter. -
Page 8: Specifi Cations
SPECIFICATIONS Input/Output...SDI - SMPTE 259M-C (270Mbps) Input/Output..HD-SDI -SMPTE 292M (1.485, 1.485/1.001 Gbps) Power Supply...5V DC Power Consumption...10 watts (max) Dimensions...7.5”W x 1.1”H x 3.5”D Shipping Weight...4 lbs. -
Page 9: Warranty
If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
