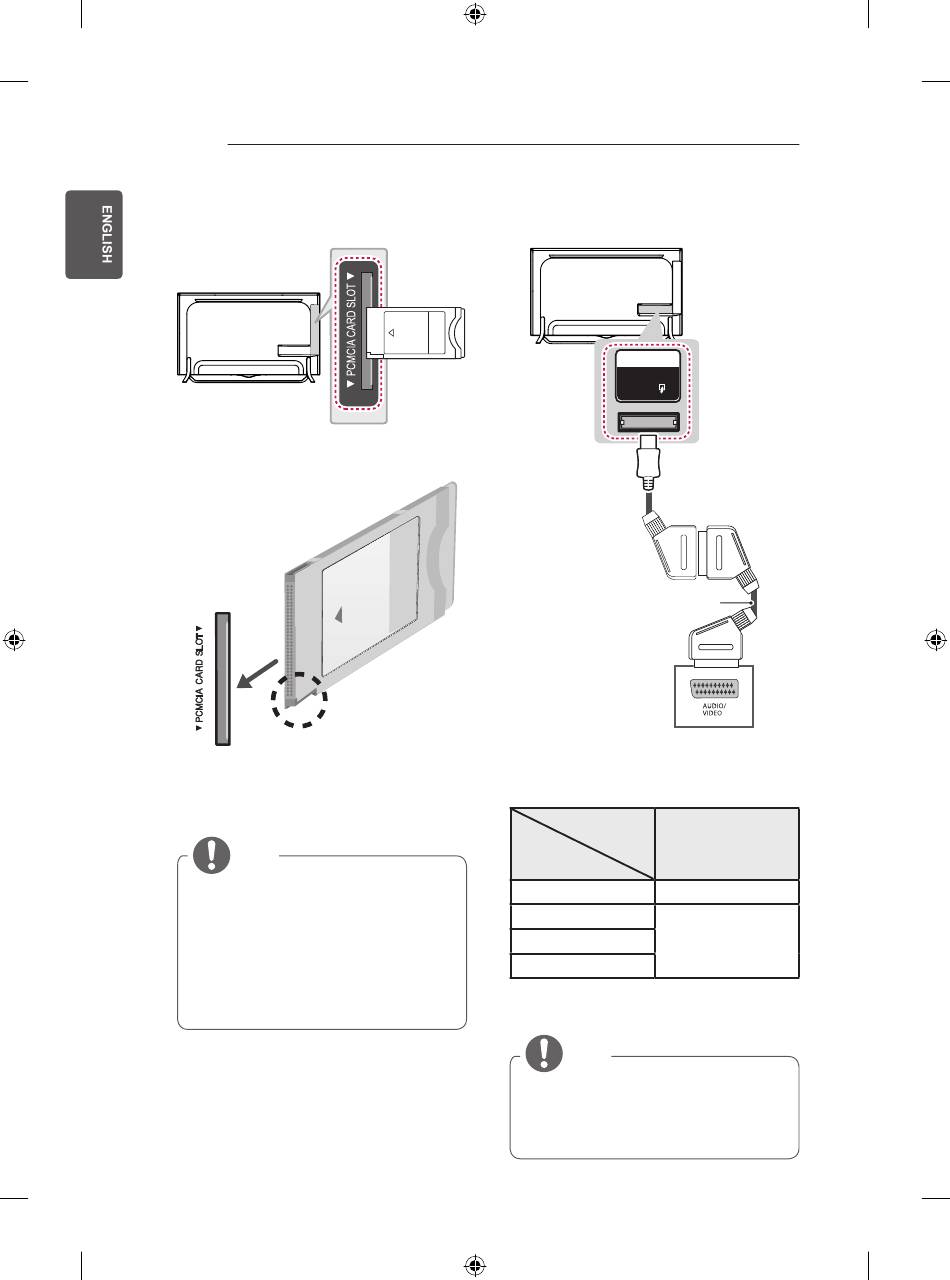

MAKING CONNECTIONS

CI module connection

View the encrypted (pay) services in digital
TV mode. This feature is not available in all
countries.
NOTE
y Check if the CI module is inserted into
the PCMCIA CARD SLOT in the right
direction. If the module is not inserted
properly, this can cause damage to the
TV and the PCMCIA card slot.
y If the TV does not display any video
and audio when CI+ CAM is connected,
please contact to the Terrestrial/Cable/
Satellite Service Operator.

Euro Scart connection

(*Not Provided)
(Use the Scart
gender cable
provided.)
Transmits the video and audio signals from an
external device to the TV set. Connect the external
device and the TV set with the euro scart cable
(or Scart gender cable) as shown.
Current
input mode
Digital TV
Analogue TV, AV
Component
HDMI
1 TV Out : Outputs Analogue TV or Digital TV
signals.
NOTE
y Any Euro scart cable used must be signal
shielded.
y When watching digital TV in 3D imaging
mode, only 2D out signals can be output
through the SCART cable. (Only 3D models)
IN/OUT
AV1
(RGB)
(RGB)
AV 1
(*Not Provided)
Output
Type AV1
(TV Out )
1
Digital TV
Analogue TV
