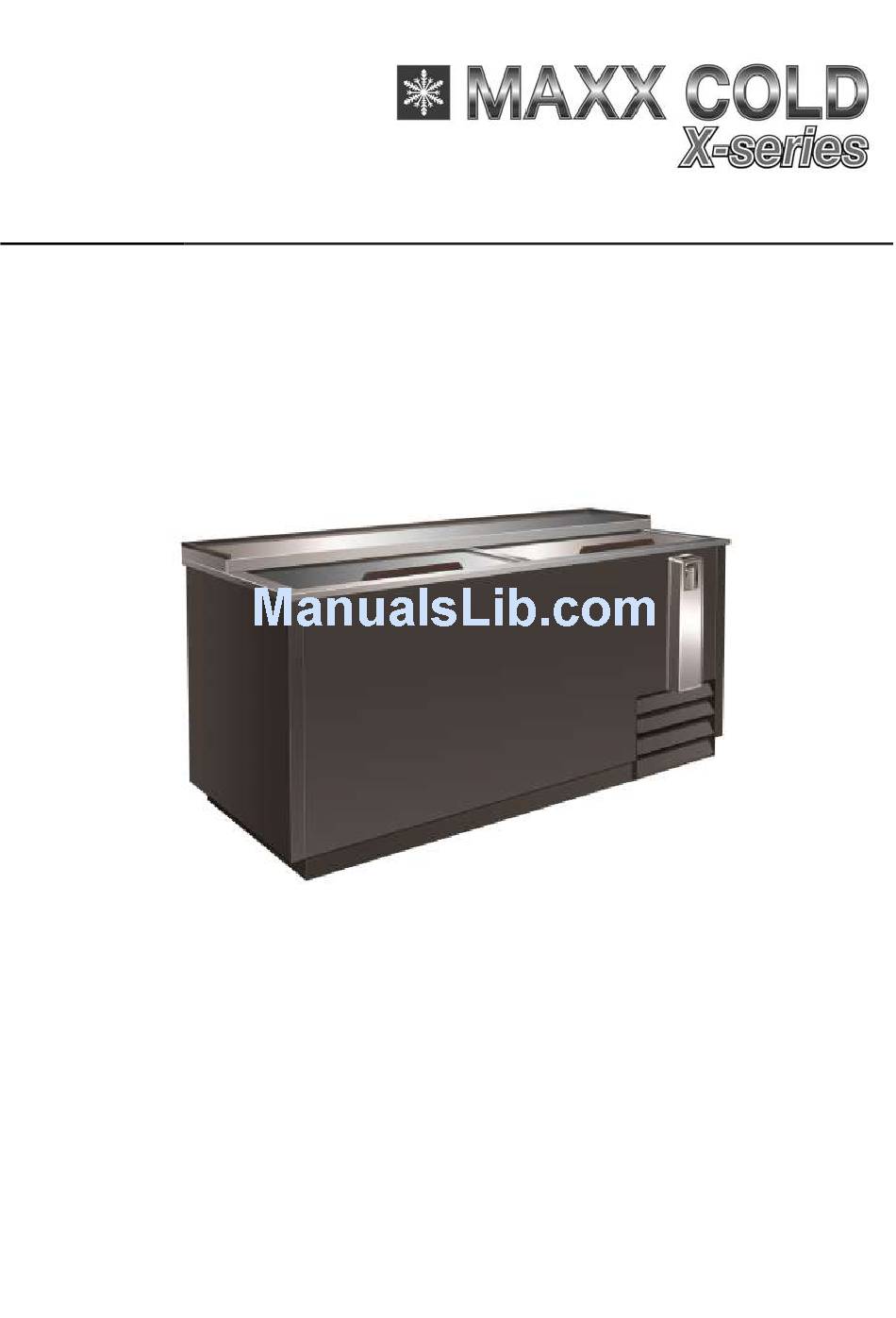

- Page 1 BOTTLE COOLER Service, Installation and Care Manual Please read this manual completely before attempting to install or operate this equipment. Notify carrier of damage! Inspect all components immediately. See page 2. IMPORTANT INFORMATION READ BEFORE USE PLEASE SAVE THESE INSTRUCTIONS!
- Page 2 STORAGE SHIP CAPACITY CHARGE WEIGHT NEMA MODEL# V/Hz/Ph AMPS Cu-ft PLUG MXCR50B 115/60/1 3200 10.58 5-15P MXCR65B 115/60/1 5400 12.34 5-15P CONGRATULATIONS ON YOUR NEW COOLER Note these instructions apply to all coolers. Installations of equipment may not exactly correspond to your model.
- Page 3 Service and Installation Manual ELECTRICAL CONNECTION The cooler must be connected to a socket with the correct voltage/frequency, as show on the nameplate. The standard for u.s is 115V/50HZ. Voltage variations of ±10% are acceptable. Greater variations can damage the cooler, and in such cases the factory warranty is not valid. In the case of extreme voltage variation, above or below the standard, your local supplier will be able to advise you, what to do.
- Page 4 Service and Installation Manual If a condenser and associated fan are fitted at the back bottom of the cooler, they can gather dust and dirt. If cleaning is necessary, they should be vacuumed with a soft brush. Please note that the parts behind the protective grille can be hot and rotating. TROUBLE SHOOTING If you are having problems with your cooler, please check the following point before calling service personnel:...
- Page 5 Service and Installation Manual WIRING DIAGRAM MODEL：MXCR50B MODEL：MXCR65B...
- Page 6 Service and Installation Manual WIRING DIAGRAM MODEL: MXCR50B / MXCR65B...
- Page 7 Service and Installation Manual...
- Page 8 Service and Installation Manual...
