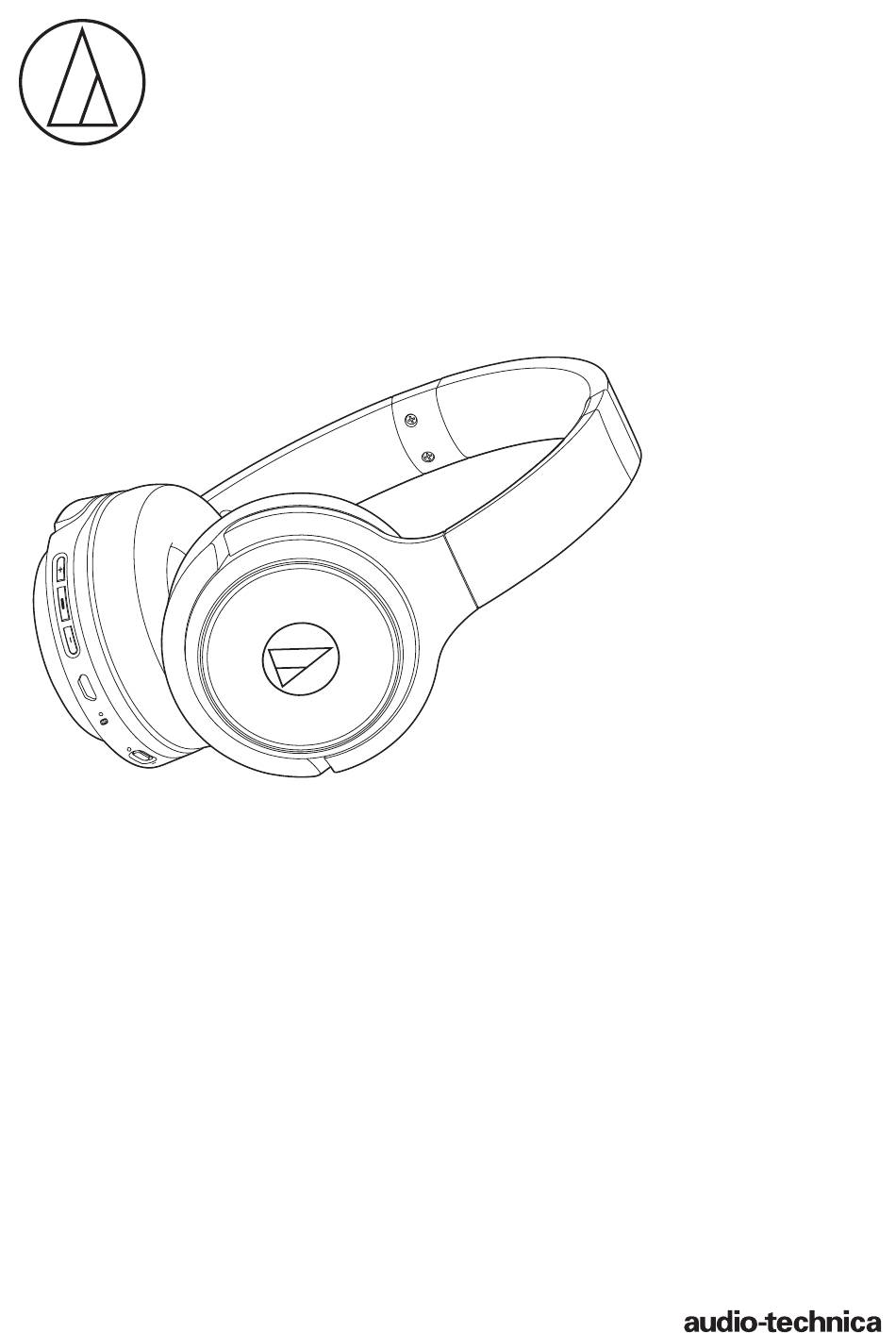

- Page 1 ATH-S200BT User Manual Wireless Headphones...
-
Page 2: Safety Precautions
Introduction Thank you for purchasing this Audio-Technica product. Before using the product, please read through the Quick Start Guide and Caution Guide, as well as this user manual when necessary, to ensure that you will use the product correctly. Safety precautions Although this product was designed to be used safely, failing to use it correctly may result in an accident. -
Page 3: Cautions For Rechargeable Battery
Safety precautions Cautions for rechargeable battery The product is equipped with a rechargeable battery (lithium polymer battery). • If battery fluid gets into eyes, do not rub them. Rinse • Do not use, leave or store the battery in the following places: –... -
Page 4: Notes On Use
Notes on use • Be sure to read the connected device’s user manual before use. • When you are not using the included cable or USB charging cable, disconnect it from the product. • Audio-Technica will not be liable in any way for any loss of data in the unlikely event that such losses should occur while using •... -
Page 5: Part Names And Functions
Part names and functions The left bushing has a protrusion for distinguishing between the left and right. Headband Slider Left/right (L/R) indicator Earpad Joint Housing A microphone is built into the left (L) housing. Battery jack Control button Used to connect the Power switch included USB charging Used to play/pause... -
Page 6: Charging The Battery
Charging the battery • Fully charge the battery when using for the first time. • When the rechargeable battery is running low, the product will sound 2 sets of 2 beeps through the headphones, and an indicator lamp will flash in red. When these beeps sound, charge the battery. •... -
Page 7: Connecting Via Bluetooth Wireless Technology
Connecting via Bluetooth wireless technology About pairing To connect the product to a Bluetooth device, the product needs to pair (register) with the device. Once they are paired, you do not need to pair them again. However, you will need to pair again in the following cases: •... -
Page 8: Using The Product
Using the product The product can use Bluetooth wireless technology to connect to your device and play music, receive phone calls, etc. Use the product for whichever of these purposes suits your needs. Note that Audio-Technica cannot guarantee the operation of displays, such as the battery level display, or applications via Bluetooth devices. -
Page 9: Listening To Audio
Using the product Listening to audio • To connect for the first time, pair the product and your device via Bluetooth wireless technology. If you have already paired the product and your Bluetooth device, turn on the Bluetooth device’s Bluetooth connection and turn on the product. -
Page 10: Talking On The Phone
Using the product Talking on the phone • If your Bluetooth device supports telephone features, you can use this product's built-in microphone to talk on the phone. • When your Bluetooth device receives a phone call, the product sounds a ring tone. •... -
Page 11: Troubleshooting
Troubleshooting Problem Solution Power is not supplied. • Charge the product. Unable to pair. • Visit our website for information on compatible models. • Confirm that the Bluetooth device communicates using Ver. 2.1+EDR or higher. • Place the product and the Bluetooth device within 1 m (3.3') of each other. •... -
Page 12: Indicator Lamp Display
Indicator lamp display The indicator lamp of the product indicates the product's status as explained below. Status Indicator lamp display pattern Blue Pairing Searching for device Waiting to be connected Flashing Connection Connecting Battery level Battery level low Blue in the pairing or connection status turns red. Charging Charge Fully-charged... -
Page 13: Specifications
Specifications Headphones Type Closed-back dynamic Driver 40 mm Sensitivity 102 dB/mW Frequency response 5 to 32,000 Hz Impedance 32 ohms Microphone Type Electret condenser Polar pattern Omnidirectional Sensitivity -40 dB (1 V/Pa, at 1 kHz) Frequency response 50 to 15,000 Hz Communication specifications Communication system Bluetooth version 4.1... - Page 14 Audio-Technica Corporation 2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan ©2017 Audio-Technica Corporation 132416220-02-01 ver.1 2017.10.15 Global Support Contact: www.at-globalsupport.com...
