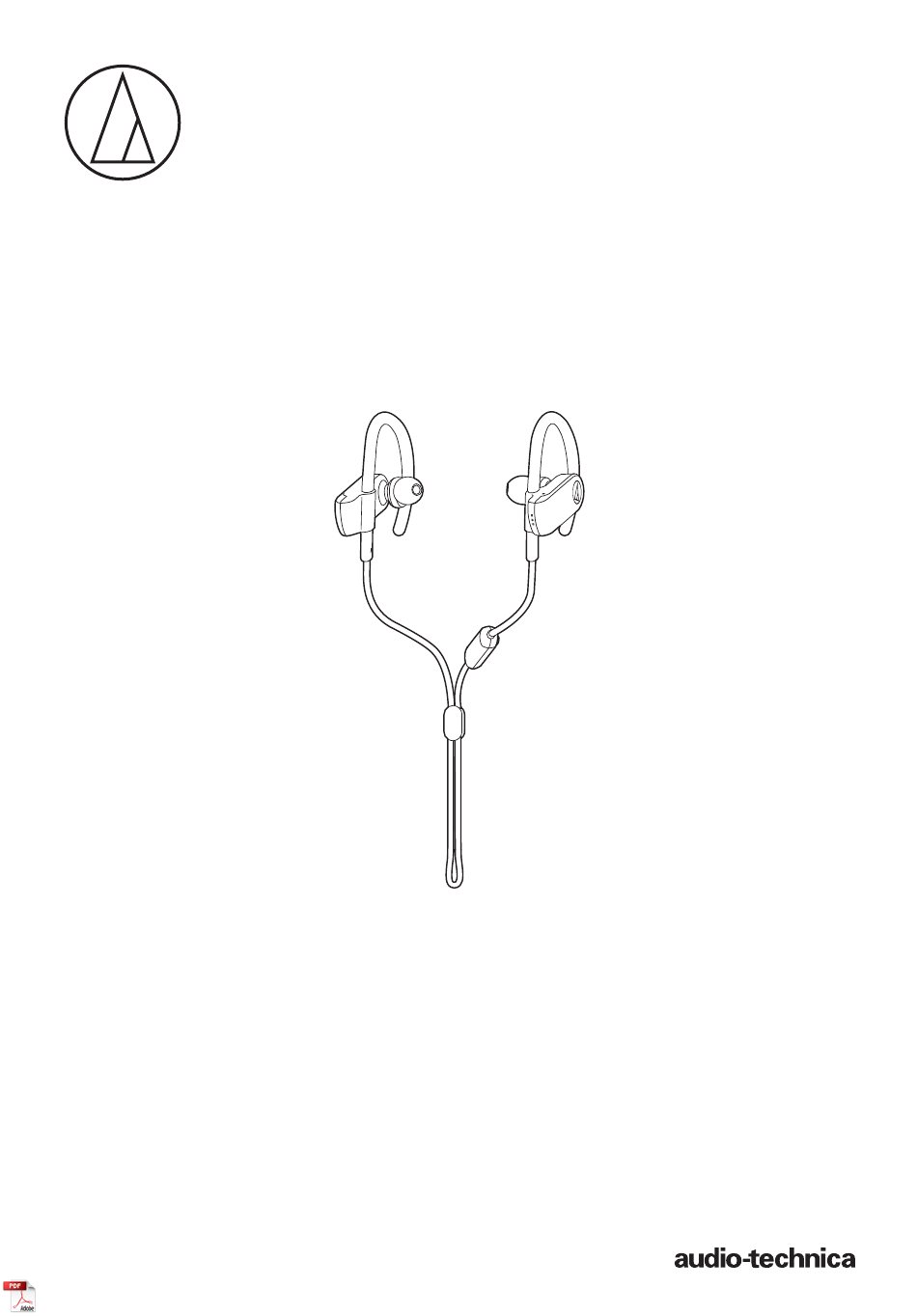

- Page 1 ATH-SPORT70BT User Manual Wireless Headphones...
-
Page 2: Safety Precautions
Introduction Thank you for purchasing this Audio-Technica product. Before using the product, please read through the Quick Start Guide and Caution Guide, as well as this user manual when necessary, to ensure that you will use the product correctly. Safety precautions Although this product was designed to be used safely, failing to use it correctly may result in an accident. -
Page 3: Cautions For Rechargeable Battery
Safety precautions Cautions for rechargeable battery The product is equipped with a rechargeable battery (lithium polymer battery). • If battery fluid gets into eyes, do not rub them. Rinse thoroughly • Do not use, leave or store the battery in the following places: –... -
Page 4: Notes On Use
Notes on use • Be sure to read the connected device’s user manual before use. • To protect the built-in rechargeable battery, charge it at least once every 6 months. If too much time passes between charges, the life • Audio-Technica will not be liable in any way for any loss of data in of the rechargeable battery may be reduced, or the rechargeable the unlikely event that such losses should occur while using the battery may no longer be able to be charged. -
Page 5: For A More Comfortable Bluetooth® Communication Experience
For a more comfortable Bluetooth® communication experience The effective communication range of this product varies depending on obstructions and radio wave conditions. For a more enjoyable experience, please use the product as close as possible to the Bluetooth device. To minimize noise and sound Antenna disruptions, avoid placing your body or other obstacles between the product’s antenna (L side) and the Bluetooth device. -
Page 6: Part Names And Functions
Part names and functions Indicator lamp Displays the operating status and battery level of the product. Microphone (for hear-through mode) Built-in microphones (for hear-through mode) are integrated in both left (L) and right (R) headphones. Touch sensor Use to turn the hear-through mode on/off. Ear hanger Housing Microphone (for talking) -
Page 7: Charging The Battery
Charging the battery • Fully charge the battery when using it for the first time. • When the rechargeable battery is running low, you will hear a beep from the headphones, and an indicator lamp will flash in red. When you hear this beep, charge the battery. •... -
Page 8: Connecting Via Bluetooth Wireless Technology
ATH-SPORT70BT 3. Select “ATH-SPORT70BT” to pair the product and your Bluetooth device. • Some devices may ask for a passkey. In this case, enter “0000”. The passkey may also be called a passcode, PIN code, PIN number, or password. -
Page 9: Using The Product
Using the product The product can use Bluetooth wireless technology to connect to your device and play music, receive phone calls, etc. Use the product for whichever of these purposes suits your needs. Note that Audio-Technica cannot guarantee the operation of displays, such as the battery level display, or applications via Bluetooth devices. -
Page 10: Listening To Audio
Using the product Listening to audio • To connect for the first time, pair the product and your device by Bluetooth wireless technology. If you have already paired the product and your Bluetooth device, turn on the Bluetooth device’s Bluetooth connection and turn on the product. •... -
Page 11: Talking On The Phone
Using the product Talking on the phone • If your Bluetooth device supports telephone features, you can use the product to talk on the phone. • When your Bluetooth device receives a phone call, the product's ringtone sounds. • If a call is received while you are listening to music, music playback is paused. When you finish the call, music playback resumes.* When Operation... -
Page 12: Main Unit
Cleaning Get into the habit of regularly cleaning the product to ensure that it lasts for a long time. Do not use alcohol, paint thinners, or other solvents for cleaning purposes. Main unit • When cleaning the main unit, remove the eartips. •... - Page 13 Cleaning Cable and eartips • Wipe away any perspiration or dirt from the cable with a dry cloth immediately after use. Failure to clean the cable may cause it to deteriorate and harden over time, resulting in malfunction. • Wipe the cable's USB plug with a dry cloth if dirty. •...
-
Page 14: Troubleshooting
Troubleshooting Problem Solution Power is not supplied. • Charge the product. Unable to pair. • Confirm that the Bluetooth device communicates using Ver. 2.1+EDR or higher. • Place the product and the Bluetooth device within 1 m (3.3') of each other. •... -
Page 15: Indicator Lamp Display
Troubleshooting SBC priority connections (for when sound is delayed significantly) When the connection codec is AAC, significant sound delays can be alleviated by changing the connection codec to SBC, which comes standard with Bluetooth devices.*¹ Connecting to a SBC priority connection When the pairing with a Bluetooth device has been completed 1. -
Page 16: Specifications
Specifications Headphones Type Dynamic Driver 9 mm Sensitivity 93 dB/mW Frequency response 20 to 20,000 Hz Impedance 16 ohms Microphone Type Electret condenser Polar pattern Omnidirectional Sensitivity -42 dB (1 V/Pa, at 1 kHz) Frequency response 50 to 8,000 Hz Communication specifications Communication system Bluetooth version 4.1... - Page 17 Audio-Technica Corporation 2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan www.audio-technica.co.jp ©2018 Audio-Technica Corporation 138900980-02-01 ver.1 2018.01.15...
