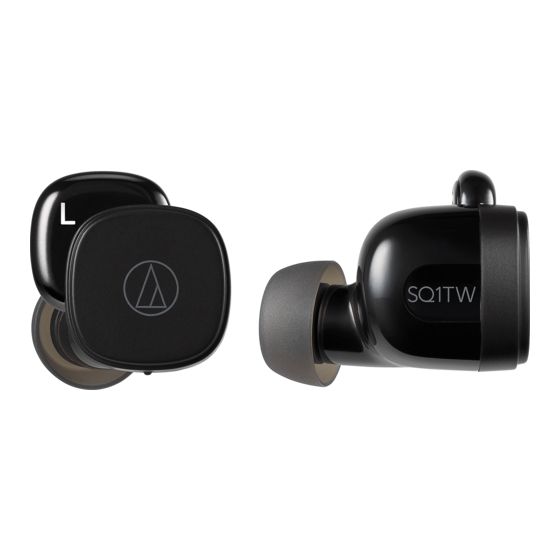

Audio Technica ATH-SQ1TW User Manual
  1. Manuals
  2. Brands
  3. Audio Technica Manuals
  4. Wireless Headphones
  5. ATH-SQ1TW
  6. User manual

Audio Technica ATH-SQ1TW User Manual

Hide thumbs Also See for ATH-SQ1TW:
Table of Contents

Advertisement

Quick Links

ATH-SQ1TW
Wireless Headphones
User Manual
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATH-SQ1TW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Audio Technica ATH-SQ1TW

Summary of Contents for Audio Technica ATH-SQ1TW

  • Page 1 ATH-SQ1TW Wireless Headphones User Manual English...

  • Page 2: Safety Precautions

    Safety precautions Although this product was designed to be used safely, failing to use it correctly may result in an accident. To ensure safety, observe all warnings and cautions while using the product. Cautions for the headphones Do not use the product near medical equipment. Radio waves may affect cardiac pacemakers and medical electronic equipment.

  • Page 3: Cautions For Rechargeable Battery

    Safety precautions Do not cover the product with a cloth to avoid fire or injury by overheating. When charging, make sure to use the included USB charging cable. Do not charge with devices that have quick-charge functionality (with a voltage of 5 V or more). Doing so may cause the product to malfunction.

  • Page 4: For Customers In The Usa

    Safety precautions For customers in the USA FCC Notice Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 5 Safety precautions (2) This device must accept any interference, including interference that may cause undesired operation of the device. This device complies with RSS-102 radiation exposure limits set forth for an uncontrolled environment.

  • Page 6: Notes On Use

    Notes on use Be sure to read the connected device’s user manual before use. Audio-Technica will not be liable in any way for any loss of data in the unlikely event that such losses should occur while using the product. On public transportation or in other public places, keep the volume low so as not to disturb other people.
  • Page 7 Notes on use Depending on your surroundings, the ambient sounds may be difficult to hear even when using the product’s hear- through mode. Do not use the product in places that are dangerous if you cannot hear the surrounding sounds, such as places with heavy traffic.
  • Page 8 About water-resistant (drip-proof) performance The water-resistant (drip-proof) specification of this product applies only to the headphones, not the charging case. Although the headphones have water-resistant (drip-proof) capabilities equivalent to IPX4, the part where the sound comes from is not water-resistant (drip-proof). The water-resistant (drip-proof) performance is designed to protect the headphones if they get wet from rain, etc.

  • Page 9: For A More Comfortable Bluetooth Communication Experience

    For a more comfortable Bluetooth communication experience The effective communication range of this product varies depending on obstructions and radio wave conditions. For a more enjoyable experience, please use the product as close as possible to the Bluetooth device. To minimize noise and sound disruptions, avoid placing your body or other obstacles between the product’s antenna and the Bluetooth device.

  • Page 10: Part Names And Functions

    Part names and functions Headphones Indicator lamps (L/R (left/right) indicator) Displays the operating status and battery level of the headphones. Touch sensors Use to play/pause music, answer phone calls, and adjust sound volume. Alternatively, use to operate specific functions such as turning on/off hear-through mode or low latency mode. Microphones The microphone on the L (left) side has a protrusion for distinguishing between the left and right headphones.

  • Page 11: Charging Case

    Part names and functions Charging case Cover Battery jack Use to connect the included USB charging cable and charge the product. Charging indicator lamp Lights/flashes when charging the charging case.
  • Page 12 Part names and functions Accessories ™ USB charging cable (30 cm (12"), USB Type-A / USB Type-C Eartips (XS, S, M, L) At the time of purchase, the M-size eartips are attached to the product.

  • Page 13: Charging The Battery

    Charging the battery Fully charge the battery when using for the first time. When the rechargeable battery is running low, the voice guidance will play the message “Low battery”, and the indicator lamp will flash in red. Charge the battery as soon as possible. It takes about 1.5 hours to fully charge the headphones, and about 2 hours to fully charge the charging case.
  • Page 14 Charging the battery Indicator lamp Status Flashing white Charging Lights in white for 12 seconds, and Charging complete then turns off Flashing white quickly Charging error [1] Charge the product in a well-ventilated place (10 to 35°C (50 to 95°F)) away from direct sunlight. When charging is complete, disconnect the USB charging cable (USB Type-A side) from the computer.

  • Page 15: Power Supply On/Off

    Power supply ON/OFF Turning on the product Remove the headphones from the charging case. The power will turn on automatically, and the indicator lamps will light in white and then flash. Voice guidance is played. It may take several seconds for the indicator lamps to light. See "Voice guidance"...

  • Page 16: Connecting Via Bluetooth

    Use your Bluetooth device to begin the pairing process and search for the product. When your Bluetooth device finds the product, “ATH-SQ1TW” will be displayed on the device. For information about using your Bluetooth device, refer to the device’s user manual.

  • Page 17: About Pairing

    Connecting via Bluetooth Pairing with Fast Pair In one touch, the product enables quick, effortless Bluetooth pairing with your Android devices. You can even check to see where you last placed it. Turn on the Bluetooth function on an Android device configured with a Google account. Remove the headphones (L (left) and R (right)) from the charging case and bring them close to the Android device.

  • Page 18: Wearing The Product

    Wearing the product Insert the side of the product marked “L” (left) into the left ear and the side marked “R” (right) into the right ear. If you have difficulty inserting the headphones, adjust the position as desired by rotating the headphones backward.

  • Page 19: Touch Sensors

    Touch sensors The product has touch sensors. When performing operations, touch the sensors using the pad of your finger, not the fingertip. Operate the touch sensor with one finger. Operating with a sharp-tipped object, such as a ballpoint pen or pencil, may result not only in incorrect operation, but also damage to the touch sensor.
  • Page 20 Unlocking When you take the headphones out of the charging case, the touch sensor is locked to prevent erroneous operations. Touch the touch sensors once to unlock the sensors, signaled by the confirmation tone. The sensor is automatically unlocked during calls on the Bluetooth device (for both outgoing and incoming calls).

  • Page 21: Using The Product

    Using the product The product can use Bluetooth wireless technology to connect to your device and play music, receive phone calls, etc. Use the product for whichever of these purposes suits your needs. Note that Audio-Technica cannot guarantee the operation of displays, such as the battery level display, or applications via Bluetooth devices. Listening to music To connect for the first time, pair the product and your device via Bluetooth wireless technology.

  • Page 22: Talking On The Phone

    Using the product Operation Function Touch Starts or pauses playback. Touch (twice) Plays the next track. Touch (three times) Plays the previous track / returns to the start of the track. The controls explained above may not be available on some smartphones. L (left) side headphone touch sensor operations Touch sensor Operation...
  • Page 23 Using the product To end a call, touch and hold (about 2 seconds) the touch sensor on the L (left) or R (right) side headphone. Calls can be ended from either the L (left) or R (right) side headphone. If the call was received while listening to music, playback is resumed. Music playback may not be resumed on some Bluetooth devices.

  • Page 24: Low Latency Mode

    Using the product Operation Function Receiving a call: Answers the call. Touch During a call: Increases the call volume by 1 level. Touch (twice) During a call: Decreases the call volume by 1 level. Receiving a call: Rejects the call. Touch and hold (about 2 seconds) During a call: Ends the call.

  • Page 25: Auto Power Off Function

    Using the product Auto power off function The product automatically turns off after 5 minutes of not being connected to a device.

  • Page 26: Indicator Lamp Display

    Indicator lamp display Pairing Status Indicator lamp display pattern Flashing white (gradually lighting up) Searching for devices (Depending on the order the L (left) and R (right) side headphones are removed from the charging case, the indicator lamp on one side will flash white quickly, and the other will flash white slowly.) Connecting Status...

  • Page 27: Voice Guidance

    Voice guidance The product plays English voice guidance in the following situations. Situation Voice guidance Voice guidance varies depending on the battery level. Battery level high Power is turned on Battery level medium Battery level low Bluetooth is connected Bluetooth connected Bluetooth is disconnected Bluetooth disconnected Hear-through mode ON...
  • Page 28 Cleaning Get into the habit of regularly cleaning the product to ensure that it will last for a long time. Do not use alcohol, paint thinners, or other solvents for cleaning purposes. Wipe any dirt off the headphones and charging case with a dry cloth. The headphones may not operate correctly if the headphones are wet.

  • Page 29: Eartip Size

    Eartips Eartip size The product includes silicone eartips in 4 sizes (XS, S, M, and L). At the time of purchase, the M-size silicone eartips are attached. To ensure the best sound quality, select the eartip size that is best suited for you, and adjust the eartips inside your ears for a snug fit.
  • Page 30 Resetting If the product operates abnormally (reset) Reset the product if it cannot be unpaired, connected, or does not operate as expected. About 5 seconds after both headphones (L (left) and R (right) sides) are placed in the charging case (with battery remaining), touch the touch sensor of both headphones twice in a row.

  • Page 31: Troubleshooting

    Troubleshooting Power is not supplied Charge the product. Unable to pair Confirm that the Bluetooth device communicates using Ver. 2.1+EDR or higher. Place the product and the Bluetooth device within 1 m (3.3') of each other. Set the profiles for the Bluetooth device. For procedures on how to set profiles, refer to the Bluetooth device’s user manual.
  • Page 32 Troubleshooting Keep the product away from devices that emit radio waves such as microwaves and wireless routers. Keep the product away from TVs, radios, and devices with built-in tuners. These devices can also be affected by the product. Turn off the equalizer settings of the Bluetooth device. Remove obstacles between the product and the Bluetooth device and place them closer together.

  • Page 33: Communication Specifications

    Specifications Headphones Type Dynamic Driver 5.8 mm Sensitivity 100 dB/mW Frequency response 20 to 20,000 Hz 16 ohms Impedance Microphone Type MEMS type Polar pattern Omnidirectional -38 dB (1 V/Pa, at 1 kHz) Sensitivity Frequency response 100 to 10,000 Hz Communication specifications Communication system Bluetooth version 5.0...
  • Page 34 Specifications Other Headphones: DC 3.7 V lithium ion battery Power supply Charging case: DC 3.7 V lithium ion battery Headphones: Approx. 1.5 hours Charging time Charging case: Approx. 2 hours Continuous transmission time (music playback): Max. approx. 6.5 hours Operating time (headphones) Max.
  • Page 35 Trademarks ® The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Audio-Technica Corporation is under license. Other trademarks and trade names are those of their respective owners. ™ USB Type-C is a trademark of USB Implementers Forum.
  • Page 36 株式会社オーディオテクニカ 〒194-8666 東京都町田市西成瀬2-46-1 www.audio-technica.co.jp Audio-Technica Corporation 2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan www.audio-technica.com ©2021 Audio-Technica Corporation Global Support Contact: www.at-globalsupport.com 132417420-02-01 ver.1 2021.10.01...
