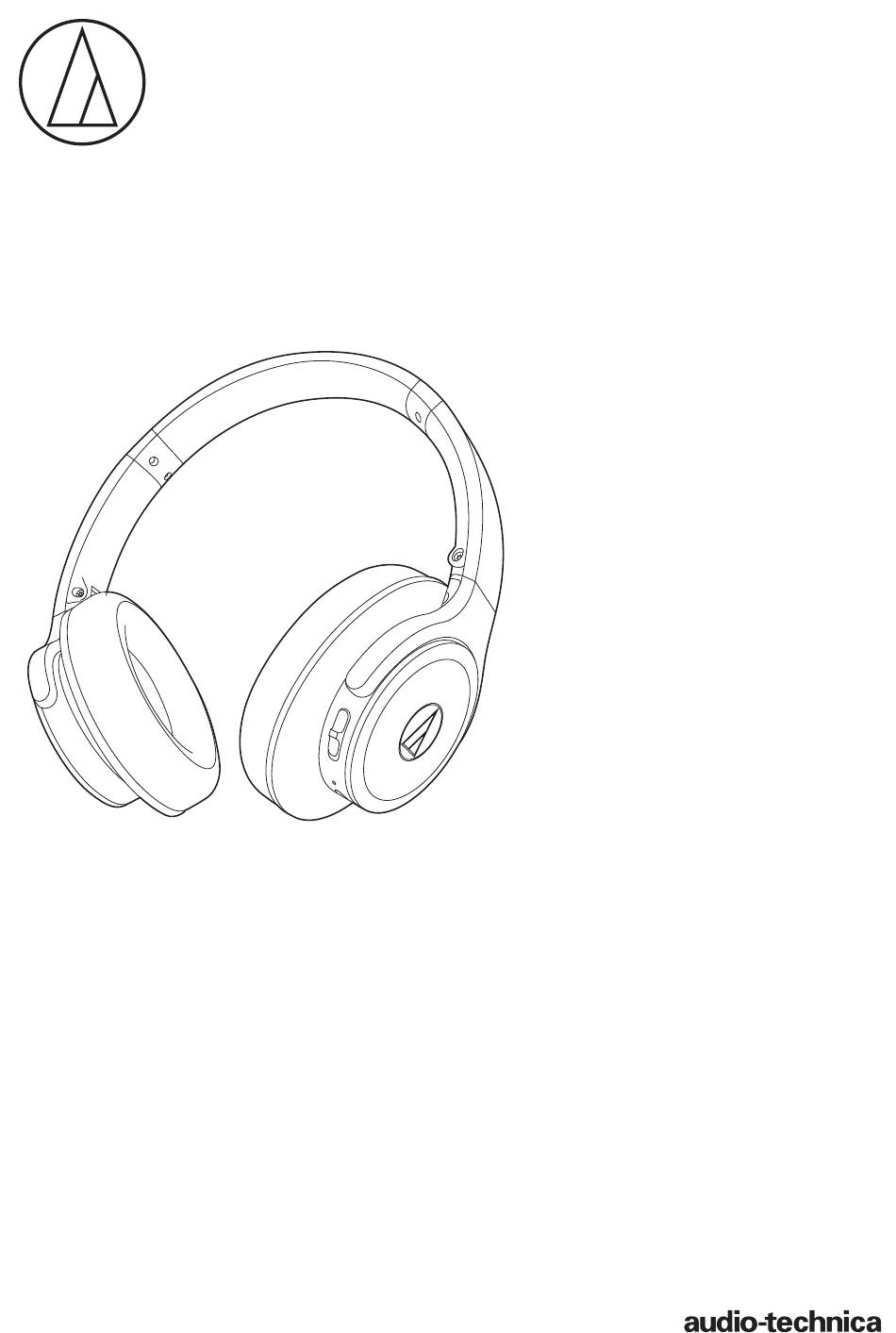

- Page 1 ATH-SR30BT User Manual Wireless Headphones...
-
Page 2: Safety Precautions
Introduction Thank you for purchasing this Audio-Technica product. Before using the product, please read through the Quick Start Guide and Caution Guide, as well as this user manual when necessary, to ensure that you will use the product correctly. Safety precautions Although this product was designed to be used safely, failing to use it correctly may result in an accident. -
Page 3: Cautions For Rechargeable Battery
Safety precautions Cautions for rechargeable battery The product is equipped with a rechargeable battery (lithium polymer battery). • If battery fluid gets into eyes, do not rub them. Rinse • Do not use, leave or store the battery in the following thoroughly with clean water such as tap water and consult places: a doctor immediately. -
Page 4: Notes On Use
Notes on use • Be sure to read the connected device’s user manual before • When you are not using the USB charging cable, use. disconnect it from the product. • Audio-Technica will not be liable in any way for any loss of •... -
Page 5: Part Names And Functions
Part names and functions Headband Slider Joint L/R (left/right) indicator Housing A microphone is built into Earpad the L (left) side housing. Power switch Battery jack Control button Turns the power on Use to connect the Use to play/pause music and off. -
Page 6: Charging The Battery
Charging the battery • Fully charge the battery when using for the first time. • When the rechargeable battery is running low, the product will beep through the headphones, and an indicator lamp will flash in red 3 times every 4 minutes. In this case, charge the battery. •... -
Page 7: Connecting Via Bluetooth Wireless Technology
Connecting via Bluetooth wireless technology To connect the product to a Bluetooth device, the product needs to pair (register) with the device. Pairing a Bluetooth device • Read the user manual for the Bluetooth device. • Place the device within 1 m (3.3') of the product to perform pairing correctly. •... -
Page 8: Using The Product
Using the product The product can use Bluetooth wireless technology to connect to your device and play music, receive phone calls, etc. Use the product for whichever of these purposes suits your needs. Note that Audio-Technica cannot guarantee the operation of displays, such as the battery level display, or applications via Bluetooth devices. -
Page 9: Listening To Audio
Using the product Compact folding You can fold the housing into the inner side of the headband using the joints at the fulcrum. • Be careful so as not to get your fingers caught in the joints. • When using the product, make sure to return the housing to the original position. Joint Fold Listening to audio... -
Page 10: Talking On The Phone
Using the product Talking on the phone • If your Bluetooth device supports telephone features, you can use the microphone built into the product to talk on the phone. • When your Bluetooth device receives a phone call, the product sounds a ring tone. •... -
Page 11: Indicator Lamp Display
Indicator lamp display The indicator lamp of the product indicates the product's status as explained below. Status Indicator lamp display pattern White Searching for device Pairing Flashing every 0.5 seconds Waiting to be Flashing twice every 4 connected seconds Connection Flashing every 3 seconds Connecting : gradually lights up) - Page 12 Cleaning Get into the habit of regularly cleaning the product to ensure that it will last for a long time. Do not use alcohol, paint thinners or other solvents for cleaning purposes. • To clean, wipe with a dry cloth. •...
-
Page 13: Troubleshooting
Troubleshooting Problem Solution Power is not supplied. • Charge the product. Unable to pair. • Confirm that the Bluetooth device communicates using Ver. 2.1+EDR or higher. • Place the product and the Bluetooth device within 1 m (3.3') of each other. •... -
Page 14: Specifications
Specifications Headphones Type Closed-back dynamic Driver 40 mm Sensitivity 99 dB/mW Frequency response 5 to 35,000 Hz Impedance 32 ohms Microphone Type Electret condenser Polar pattern Omnidirectional Sensitivity -44 dB (1 V/Pa, at 1 kHz) Frequency response 100 to 10,000 Hz Communication specifications Communication system Bluetooth version 5.0... - Page 15 Audio-Technica Corporation 2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan ©2018 Audio-Technica Corporation 132416650-02-01 ver.1 2018.12.01 Global Support Contact: www.at-globalsupport.com...
