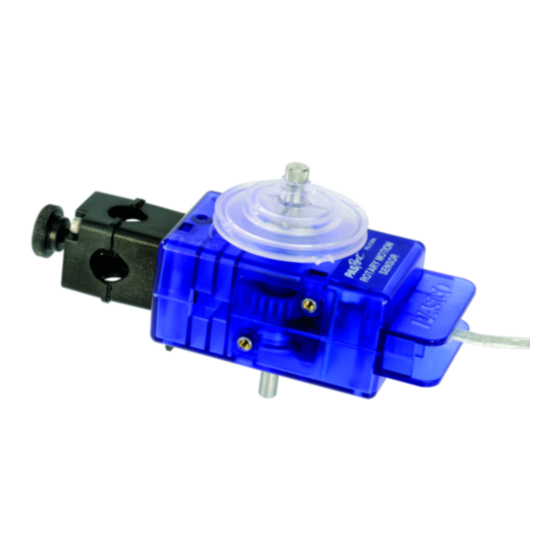

Rotary Motion Sensor

PS-2120

Sensor Specifications

Resolution:
0.02 mm (linear) and 0.09 degrees
(angular)
Accuracy
+/- 0.09 degrees
Maximum speed
30 revolutions/sec
Default sample rate:
10 samples/sec
Maximum sample rate:
1000 samples/sec
®
800-772-8700 • 916-786-3800 • techsupp@pasco.com • www.pasco.com

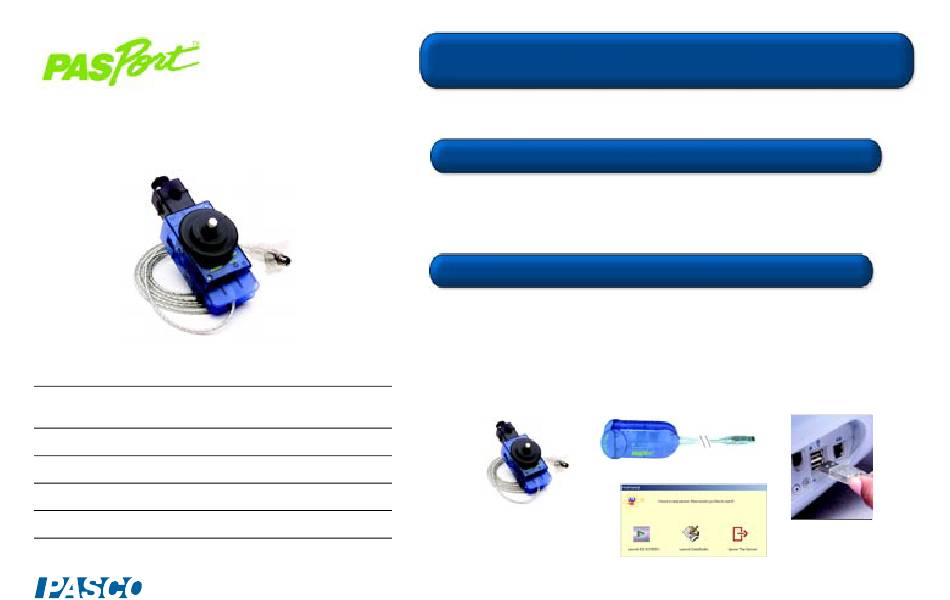

Rota ry M otio n Quick Sta rt
The PS-2120 Rotary Motion Sensor measures both linear and angular position,
velocity, and acceleration.
A d d i t i on al E q ui p m e nt Ne ed ed
USB Link (PS-2100) with USB-compatible computer or PS-2000 Xplorer
EZscreen or DataStudio
E qu i p m en t S e t up
1. Connect the sensor to a USB Link or to an Xplorer.
2. Connect the USB Link or Xplorer cable to a USB port on your computer
or a USB hub.
3. The software launches when it detects a PASPORT sensor. Select
EZscreen or DataStudio.
1
3
TM
software (version 1.6.1 or later)
2
012-07857A
