Instruction Sheet
for the PASCO
Model CI-6555

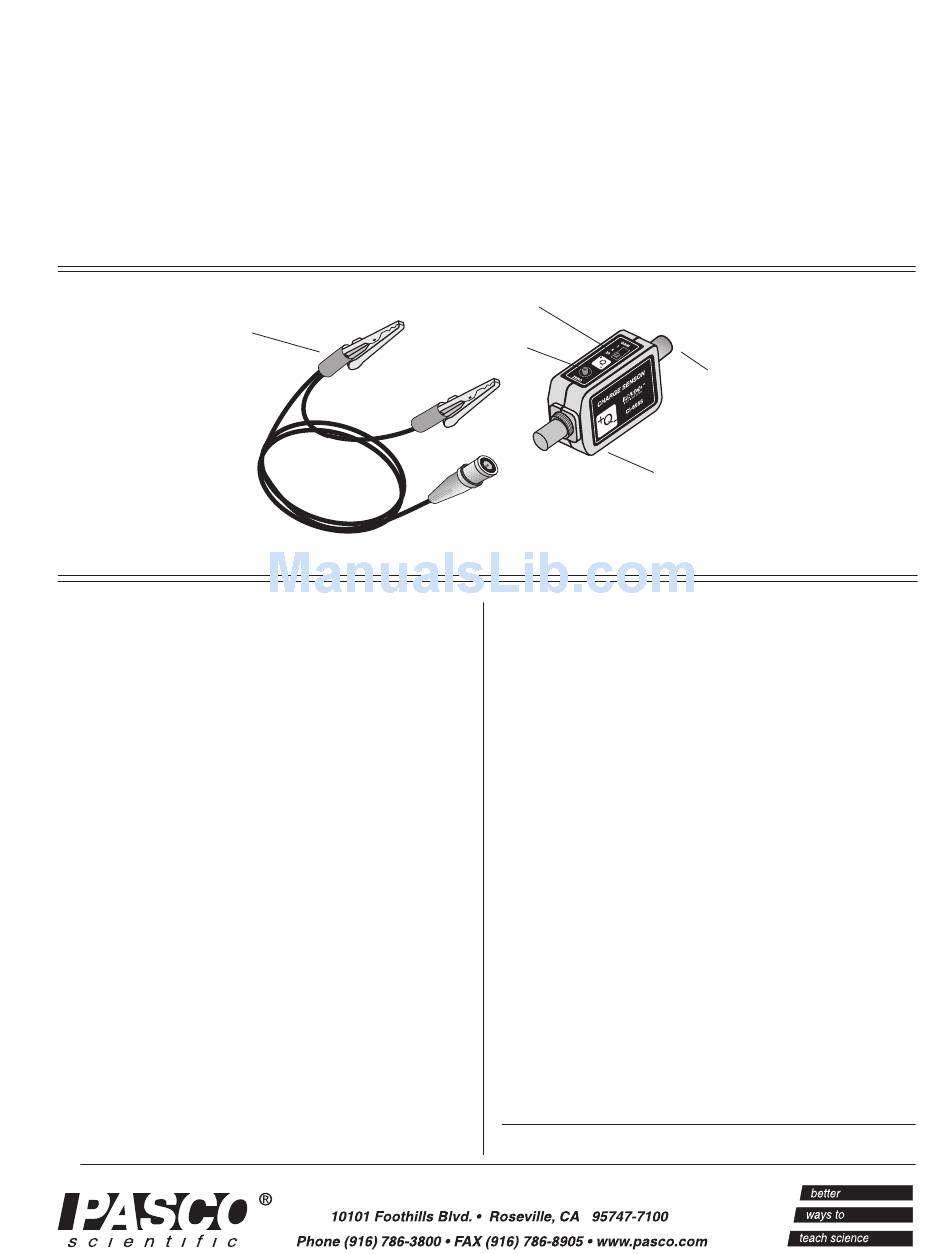

BNC/alligator cable
Introduction
The CI-6555 Charge Sensor measures voltages
from sources where the total amount of available
charge is very small, for example, many
electrostatics experiments. It is essentially a voltage
amplifier with extremely high input resistance.
Whereas a typical digital multimeter has an input
resistance of 10 megaohms (10
Sensor has an input resistance of at least 10
ohms.
Coupled with a ScienceWorkshop
Interface, the Charge Sensor can be used as an
electronic version of the familiar laboratory
electroscope. Unlike the traditional electroscope
however, the Charge Sensor can make quantitative
measurements as well as indicate charge polarity.
CHARGE SENSOR
gain switch
zero switch
7
ohms), the Charge
12
®
Computer
amplifier box
Equipment
INCLUDED
• Charge Sensor (CI-6555)
SUGGESTED ACCESSORIES:
• Faraday Ice Pail (ES-9042A)
• Charge Producers and Proof Plane (ES-9057A)
• Conductive Spheres (ES-9059B)
• Power Supply (ES-9077)
ADDITIONAL REQUIRED
• PASCO ScienceWorkshop Computer Interface
(300, 500, 700, or 750)
© 1999 PASCO scientific
012-06991A
5/99
$1.00
8-pin DIN
connector
