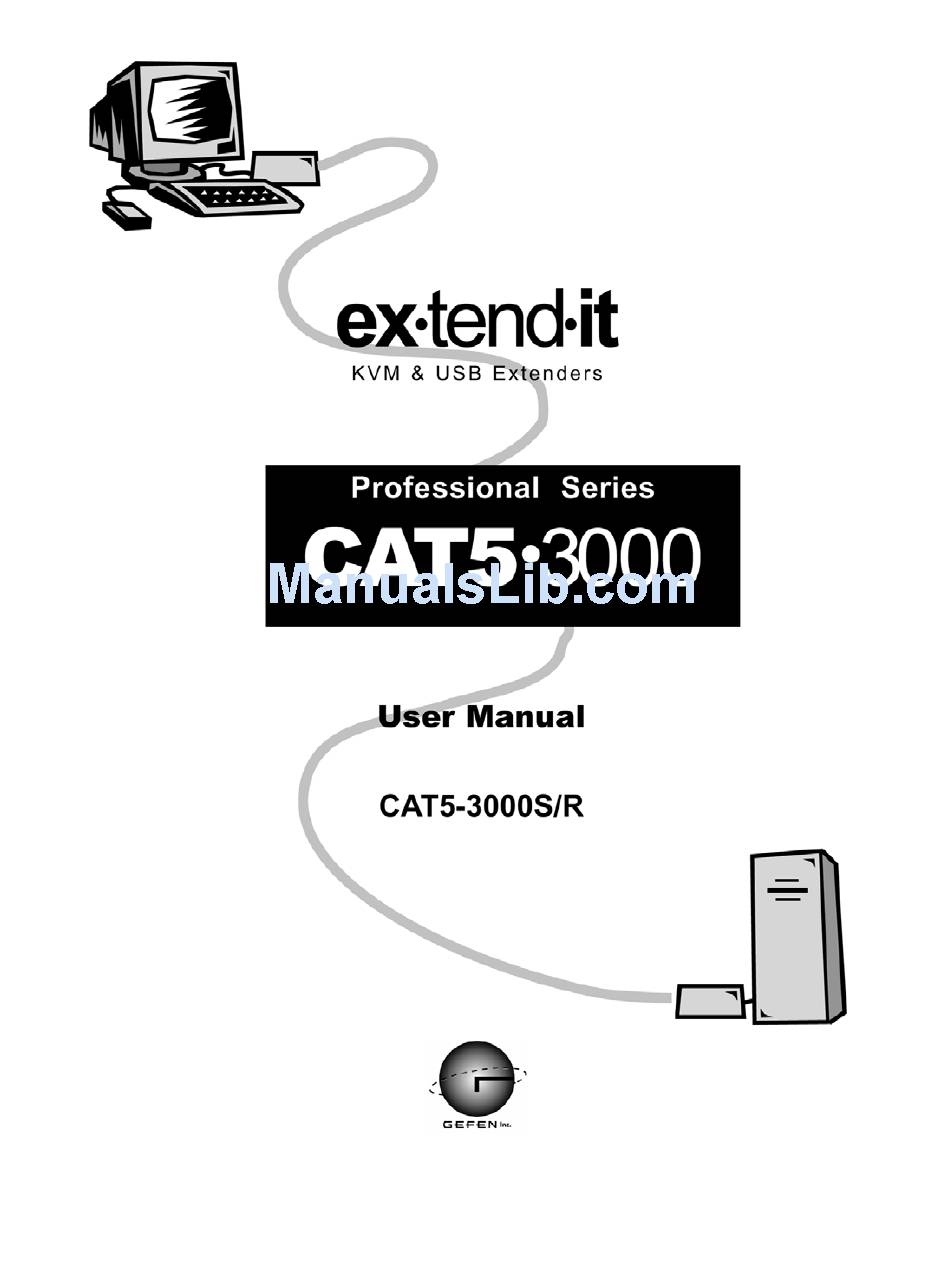

- Page 1 20600 Nordhoff St., Chatsworth CA 91311 USA Ph: 800-545-6900 818-772-9100 Fax: 818-772-9120 www.gefen.com support@gefen.com...
- Page 2 20600 Nordhoff St. Chatsworth, CA 91311 E-mail: support@gefen.com Internet: http://www.gefen.com Gefen Inc. reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. ASKING FOR ASSISTANCE Notice CAT5-3000 is a trademark of Gefen Inc.
-
Page 3: Table Of Contents
TABLE OF CONTENTS General Information Introduction ... 1 Operation Notes ... 2 CAT5-3000S Sender Front Panel Layout ... 3 CAT5-3000S Back Panel Function Description ... 4 CAT5-3000S Front Panel Layout ... 5 CAT5-3000R w/USB Receiver Back Panel Layout ... 6 CAT5-3000R Receiver Back Panel Layout ... -
Page 4: Introduction
Thank you for purchasing the new ex*tend*it CAT5-3000 series by Gefen, Inc. The ex*tend*it CAT5-3000 by Gefen allows users the benefits of extending PS/2, ADB, and USB signals beyond the desktop. In a growing number of applications, broadcast stations and production facilities there is a need to locate a computer remotely from the keyboard, mouse, and video monitor. -
Page 5: Operation Notes
* The CAT5-3000S unit can be powered from the USB cable without the external power supply. * For PS/2 operation, both CAT5-3000R units must be connected. * The CAT5-3000 units are housed in a metal box for better RF shielding. -
Page 6: Cat5-3000S Sender Front Panel Layout
CAT5-3000S SENDER FRONT PANEL LAYOUT RONT ANEL UNCTION Reset Not used. Power On Indicator Indicates that the unit is on and plugged in. ESCRIPTIONS... -
Page 7: Cat5-3000S Back Panel Function Description
CAT5-3000S SENDER BACK PANEL LAYOUT ANEL UNCTION Power 16V Transformer Monitor 1 HD-15 output relays video signal for local monitor Video 1 HD-15 input receives video signals from computer CAT-5 1 RJ-45 input extends video 1, PS/2 and ADB signal with CAT-5 cable. CONNECT CAT-5 CABLE FROM CAT-5 1 INPUT ON THE SENDER TO THE RECEIVER WITH USB PORTS. -
Page 8: Cat5-3000S Front Panel Layout

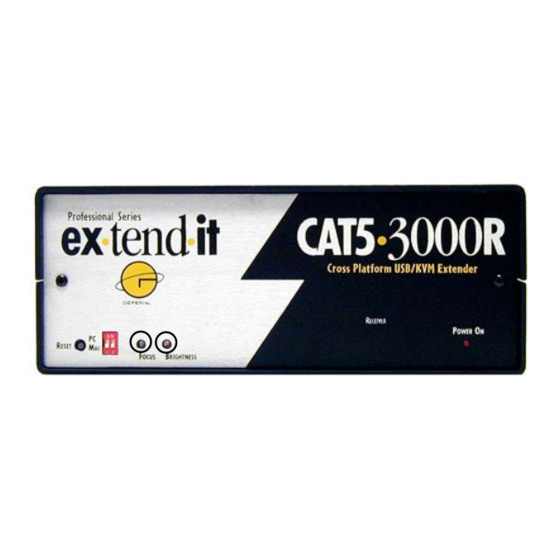

CAT5-3000R FRONT PANEL LAYOUT RONT ANEL UNCTION RESET Clears the programmed setting PC or MAC Setting for either ADB Keyboard or PS/2 keyboard/mouse MAC: 1 & 2 OFF PC: 1 ON 2 OFF FOCUS / BRIGHTNESS Trim pot settings adjust the focus and brightness settings based on cable length POWER ON Indicates that the unit is on and plugged in... -
Page 9: Cat5-3000R W/Usb Receiver Back Panel Layout
CAT5-3000R W/USB RECEIVER BACK PANEL LAYOUT ANEL UNCTION RS232 9 Pin DB Connector Audio Audio Mini Jack CAT-5 RS232 RJ-45 input extends RS232 with CAT-5 cable CAT-5 USB Audio RJ-45 input extends USB and audio signal with CAT-5 cable USB In 2 port USB input connects to USB devices POWER 17VAC external power supply... -
Page 10: Cat5-3000R Receiver Back Panel Layout
CAT5-3000R RECEIVER BACK PANEL LAYOUT ANEL UNCTION POWER 17VAC external power supply CAT5 RJ-45 input connects CAT-5 cable extended from the CAT5-3000S unit. CAT5-2 from the CAT5-3000S must connect here. REMOTE Used only for CAT5-4000 operation. MONITOR HD15 output connecting to the video monitor Mouse PS/2 output connects to the mouse NOT USED... -
Page 11: Focus/Brightness Setting
BRIGHTNESS FOCUS SETTING DESCRIPTION The Brightness and Focus turn pots are designed to adjust for best video quality. The desired settings might be different from received default factory settings due to the difference in cable extension length. Generally, the longer the cable -- the more compensation that will be needed for optimum video quality results. -
Page 12: Installation Wiring Diagrams
1 WORKSTATION EXTENDED - WIRING DIAGRAM... -
Page 13: Connector Pinouts
CONNECTOR PIN-OUT DIAGRAMS The illustrations below show the connector pin-outs as seen from the CAT5-3000 unit, or seen looking directly into the connector end. The pin numbers and signals are standard. -
Page 14: Specifications
SPECIFICATIONS Video Amplifier Bandwidth ... 350 MHz Actual Bandwidth ..120 MHz Input Video Signal ... 1.2 Volts p-p Video In ... HD-15 Focus/Brightness Control ... 25 to 450 FT Video out ... HD-15 Link Connector ... (4) RJ-45 ADB Keyboard Connectors ... -
Page 15: Warranty
Gefen, Inc. warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen, Inc. is notified within one (1) year from the date of shipment, Gefen, Inc. will, at its option, repair or replace the equipment free of charge, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications.
