Casa Systems NDD-0315-01 Quick Start Manual

Service connection box
Hide thumbs
Table of Contents

Advertisement

Quick Links

D I S T R I B U T O R
SERVICE
CONNECTION
BOX
NDD-0315-01
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NDD-0315-01 and is the answer not in the manual?

Questions and answers

Related Manuals for Casa Systems NDD-0315-01

Summary of Contents for Casa Systems NDD-0315-01

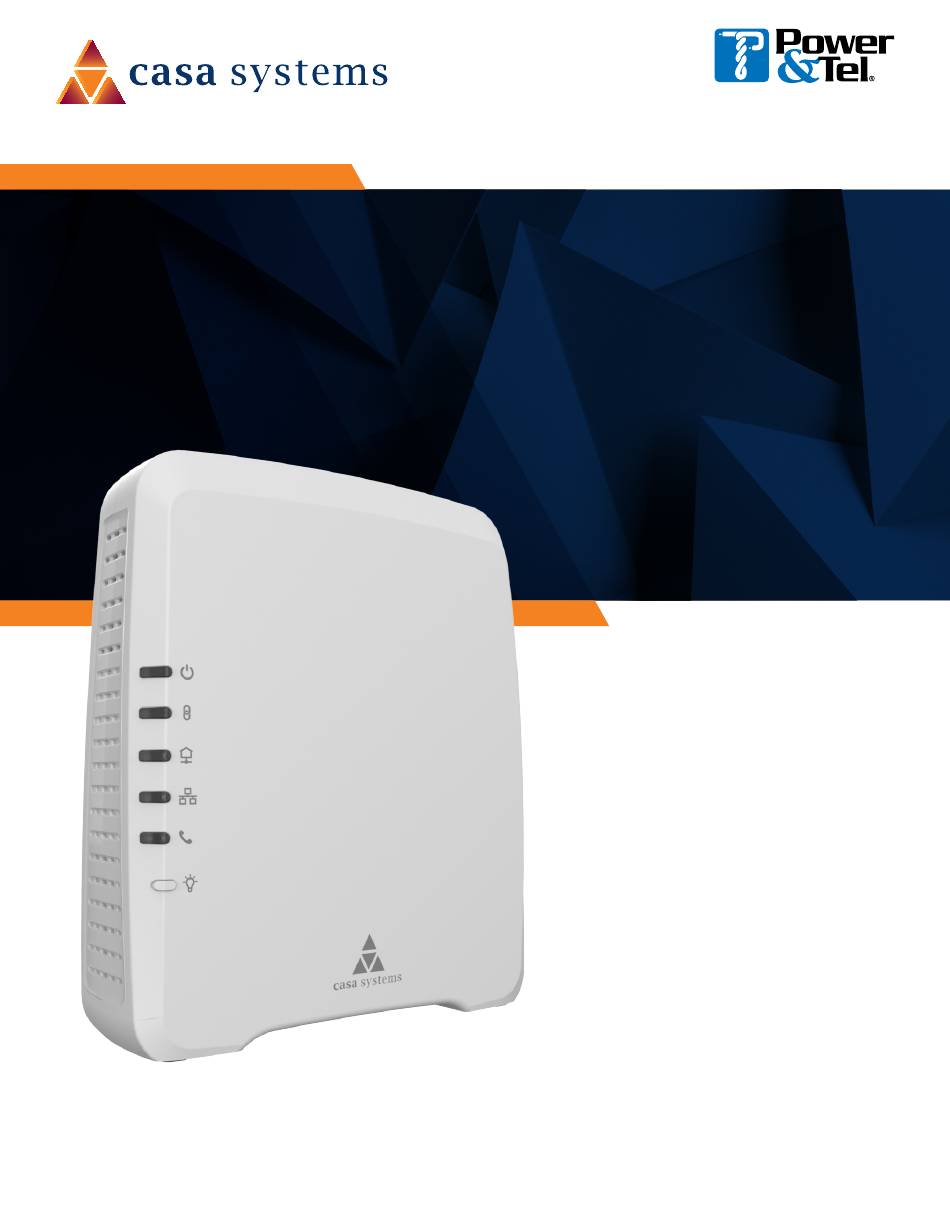

  • Page 1 D I S T R I B U T O R SERVICE CONNECTION NDD-0315-01 Quick Start Guide...

  • Page 2: Package Contents

    NDD-0315-01 Service Connection Box Package Contents 1 x Service Connection Box This Quick Start Guide 1 x Wall Mount Welcome This Quick Start Guide is designed to get you up and running quickly with your new broadband service and guides you through the process of connecting the connection box.

  • Page 3: Other Equipment Required

    1 x Power supply 1 x Power cord 1 x DSL cable 1 x Telephone cable (green) (gray) Other equipment required (supplied by you or your Internet provider) Ethernet cable Router/Gateway Note: Your equipment may differ from those shown here.
  • Page 4 NDD-0315-01 Service Connection Box Connecting to your new broadband service is easy The following pages describe step-by-step how to set up your Internet connection. To start, here’s an overview of how your connection may look when set up. Router/Gateway Wall outlet...
  • Page 5 1. Power your connection box Connect the included power supply to the port labelled POWER on the connection box. Take the included power cord and plug it into the other end of the power supply, then plug the power supply into a nearby power outlet. Switch on the power outlet (if required).
  • Page 6 NDD-0315-01 Service Connection Box 2. Connect your connection box Plug the green DSL cable supplied with your connection box into the port labelled INTERNET and the other end into the telephone wall outlet. indicator to display in solid green. Wait for the This may take up to ten minutes.
  • Page 7 3. Connect your own or your provider’s gateway Plug the Ethernet cable supplied with your own or your provider’s Wi-Fi gateway into the port labelled GATEWAY on your connection box, then connect the other end into the correct port of your Wi-Fi gateway (usually the WAN port). Router/Gateway...
  • Page 8 NDD-0315-01 Service Connection Box 4. Connect your other equipment Connect your other equipment, such as computers and game consoles to your Wi-Fi gateway with Ethernet cable or via Wi-Fi. Router/Gateway...
  • Page 9 5. Connect your telephone (optional) If you have a telephony service with your provider, you can connect a telephone handset to the VOICE port using the included gray telephone cable.

  • Page 10: Desktop Mount

    NDD-0315-01 Service Connection Box 6. Mount the Connection box The Connection box may be mounted in one of two ways. DESKTOP MOUNT Place the Connection box upright on a desktop or table.

  • Page 11: Wall Mount

    WALL MOUNT Using two 8 gauge pan head screws, fix the mounting bracket to the wall in the desired location, then hang the Connection box over the mounting bracket hooks as shown below. When mounted on a wall, do not mount it higher than 6 feet from the ground.
  • Page 12 NDD-0315-01 Service Connection Box Indicators The table below describes the various statuses of the indicators on the front panel of the connection box. Under normal operation, the Power, RPF Link and Internet indicators will all display in solid green. The...
  • Page 13 LED NAME ICON COLOUR STATUS DESCRIPTION DSL Link is down Blinking three times Synchronization in progress Internet per second Green DSL Synchronized Green No Ethernet connection Connected, but not at 1000 Mbps Full Duplex Amber Connected at 1000 Mbps Gateway Full Duplex Green Blinking three times...
  • Page 14 NDD-0315-01 Service Connection Box Indicator modes ALWAYS ON MODE When it is first powered on, the indicators on the connection box are in ALWAYS ON mode. In this mode the indicators are active at all times. AUTO MODE In AUTO mode, the indicators will turn off automatically after 10 minutes unless there is an alert to display.

  • Page 15: Safety And Regulatory Information

    Safety & Regulatory Information...

  • Page 16: Safety And Product Care

    NDD-0315-01 Service Connection Box Safety and Product Care Electrical safety ACCESSORIES Only use approved accessories. Do not connect with incompatible products or accessories. This device must be used with a power adapter that has been certified with a Limited Power Source (UL).

  • Page 17: Device Heating

    - Do not use your device in an enclosed environment or where heat dissipation is poor. Prolonged use in such space may cause excessive heat and raise ambient temperature, which will lead to the automatic shutdown of your device for your safety. To use your device normally again after such a shutdown, cool it in a well-ventilated place before turning it on.

  • Page 18: Sécurité Électrique

    NDD-0315-01 Service Connection Box Sécurité et entretien des produits Sécurité électrique ACCESSOIRES N’utilisez que des accessoires approuvés. Ne connectez pas l’appareil à des produits ou accessoires incompatibles. Cet appareil doit être utilisé avec un adaptateur d’alimentation qui a été certifié avec une source d’alimentation limitée (UL).
  • Page 19 - N’utilisez pas votre appareil dans un environnement clos ou dans un endroit où la dissipation de la chaleur est faible. Une utilisation prolongée dans un tel espace pourrait provoquer une chaleur excessive et augmenter la température ambiante, ce qui en- traînera l’arrêt automatique de votre appareil pour garantir votre sécurité.

  • Page 20: Fcc Regulatory Information

    NDD-0315-01 Service Connection Box FCC Regulatory Information Product: FTTdp Network Termination Device Model: NDD-0315 Company Contact Details Name: Casa Systems, Inc. US address: 100 Old River Rd, Andover, MA 01810, USA Website: https://www.casa-systems.com/contact-us/...

  • Page 21: Fcc Statement

    FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 22 MPRT-00058-000 Rev8 - NDD-0315-01 QSG email: cad-sales@casa-systems.com Trademarks and registered trademarks are the property of Casa Systems Inc or their respective owners. Specifications are subject to change without notice. Images shown may vary from the actual product. website: www.casa-systems.com Product Warranty For warranty information please visit http://support.netcommwireless.com/warranty-info...
