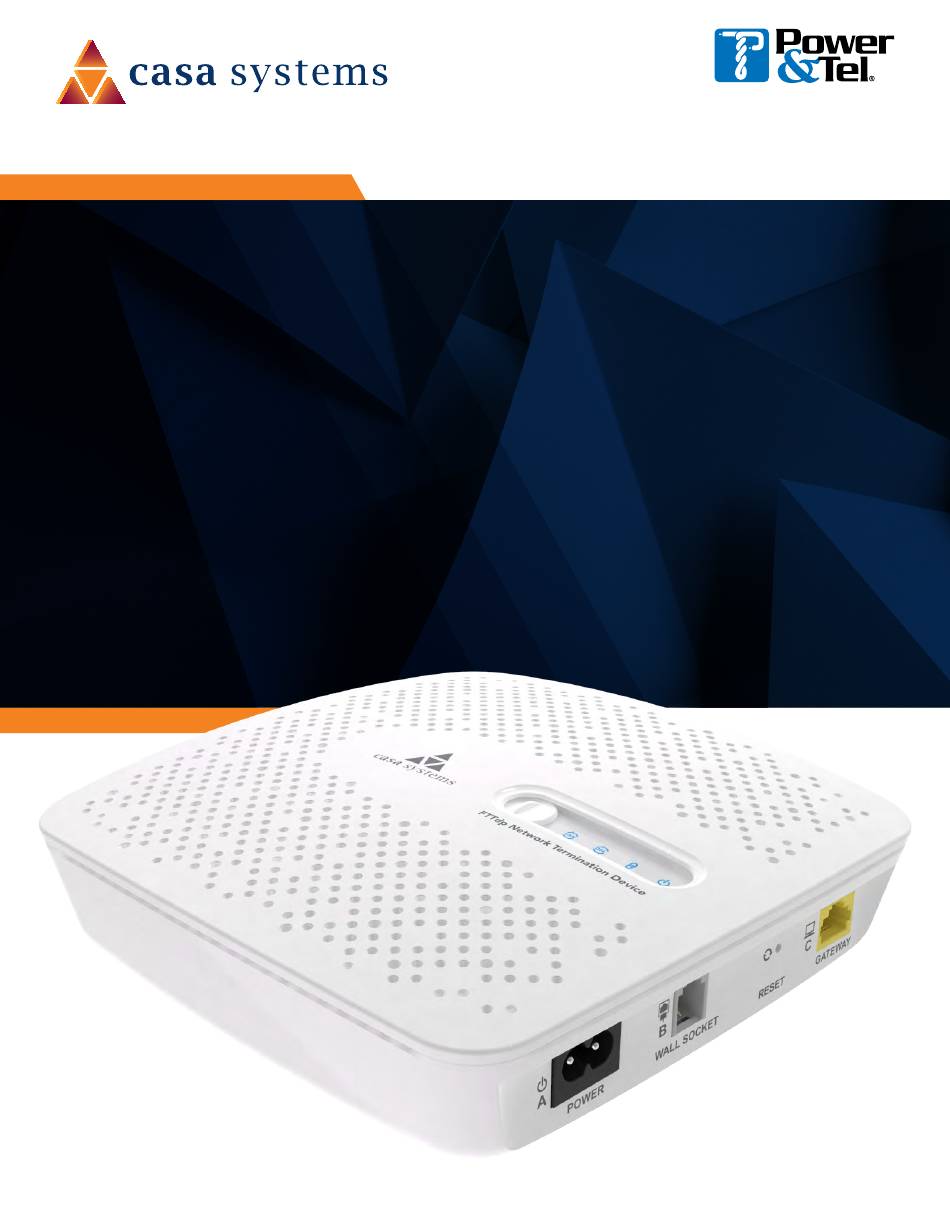

  • Page 1 D I S T R I B U T O R FTTdp NETWORK TERMINATION DEVICE NDD-0305-01...

  • Page 2: Package Contents

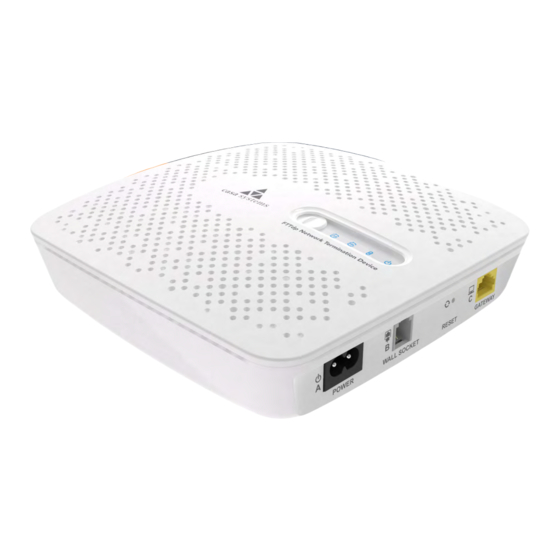

    NDD-0305-01 FTTdp Network Termination Device Package Contents 1 x FTTdp Network 1 x Desktop stand This Quick Start Guide Termination Device Welcome This quick start guide is designed to get you up and running quickly with your new broadband service and guides you through the process of connecting the FTTdp Network Termination Device (NTD).

  • Page 3: Other Equipment Required

    1 x Power cord Text goes here 1 x Telephone cable* Text goes here Other equipment required (supplied by you or your internet provider) Ethernet cable Wi-Fi Gateway connects to telephone wall socket Note: Your equipment may differ from those shown here.
  • Page 4 NDD-0305-01 FTTdp Network Termination Device Connecting to your new broadband service is easy The following pages describe step-by-step how to set up your Fiber to the Distribution Point (FTTdp) connection. To start, here’s an overview of how your connection may look when set up.
  • Page 5 1. Power your NTD Take the supplied power cord and plug it into the port labelled A on the NTD, then plug the other end into a nearby power outlet. Switch on the power outlet (if required). The power indicator displays in solid blue to indicate the unit is correctly powered.
  • Page 6 NDD-0305-01 FTTdp Network Termination Device 2. Connect your NTD Plug the telephone cable supplied with your NTD into the port labelled and the other end into your telephone wall socket. Wait for the DSL indicator to display in solid blue. This may take up to ten minutes. Do not...
  • Page 7 3. Connect your own or your provider’s gateway Plug the Ethernet cable supplied with your own or your provider’s Wi-Fi gateway into the port labelled on your NTD then connect the other end into the correct port of your Wi-Fi gateway (usually the WAN port).
  • Page 8 NDD-0305-01 FTTdp Network Termination Device 4. Connect your other equipment Connect your other equipment to your Wi-Fi gateway with Ethernet cables or via Wi-Fi.
  • Page 9 5. Mount the NTD USING THE DESKTOP STAND To save desk space and to improve cooling, place the NTD into the Desktop stand in the orientation shown below.
  • Page 10 NDD-0305-01 FTTdp Network Termination Device MOUNTING THE NTD FLAT ON A DESKTOP The NTD may be placed flat on a desktop without the use of the stand.
  • Page 11 MOUNTING THE NTD ON A WALL If you wish to mount the NTD on a wall, you can hang it via the slots on the back using two 8 gauge, self-tapping screws. When mounted on a wall, do not mount it higher than 6 feet from the ground.
  • Page 12 NDD-0305-01 FTTdp Network Termination Device Indicators RPF Link Power LED NAME ICON COLOUR STATUS DESCRIPTION Powered off Power The NTD is powered on Blue Not connected Blinking one time Start up phase. This can last up per second to 5 minutes...
  • Page 13 LED NAME ICON COLOUR STATUS DESCRIPTION DSL Link is down Blinking one or two Synchronisation in progress times per second Blue DSL Synchronised Blue Blinking three times per Software update in progress second Blue No Ethernet connection Connected but not at 1000 Mbps Full Duplex Amber Connected at 1000 Mbps...

  • Page 14: Safety And Product Care

    NDD-0305-01 FTTdp Network Termination Device Safety and Product Care Electrical safety ACCESSORIES Only use approved accessories. Do not connect with incompatible products or accessories. PRODUCT HANDLING You alone are responsible for how you use your device and any consequences of its use. Use of your device is subject to safety measures designed to protect users and their environment.

  • Page 15: Faulty And Damaged Products

    - Do not use your device in an enclosed environment or where heat dissipation is poor. Prolonged use in such space may cause excessive heat and raise ambient temperature, which will lead to the automatic shutdown of your device for your safety. To use your device normal- ly again after such shutdown, cool it in a well-ventilated place before turning it on.

  • Page 16: Fcc Regulatory Information

    NDD-0305-01 FTTdp Network Termination Device FCC Regulatory Information Product: FTTdp Network Termination Device, Model: NDD-0305 COMPANY CONTACT DETAILS Name: Casa Systems, Inc. US address: 100 Old River Rd, Andover, MA 01810, USA Website: https://www.casa-systems.com/contact-us/...

  • Page 17: Fcc Statement

    FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 18 Trademarks and registered trademarks are the property of Casa Systems Inc or their respective owners. Specifications are subject to change without notice. Images shown may vary from the actual product. CASA SYSTEMS Products & Solutions — Available from Power & Tel.
