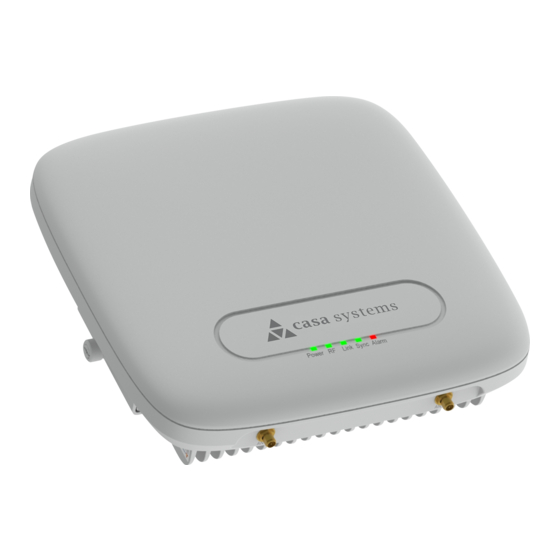

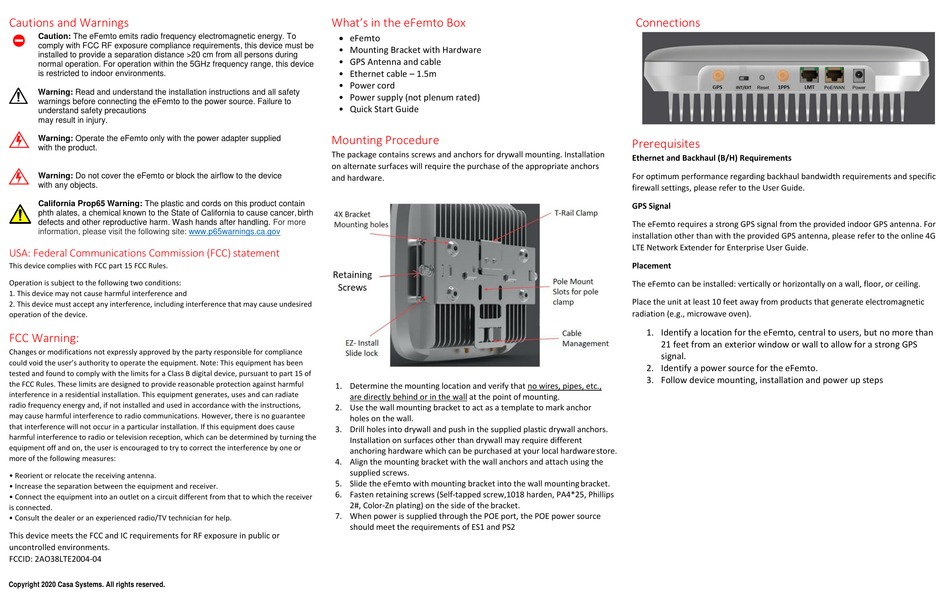

Casa Systems Apex Enterprise Femto Quick Start Manual

Cautions and Warnings

Caution: The eFemto emits radio frequency electromagnetic energy. To
comply with FCC RF exposure compliance requirements, this device must be
installed to provide a separation distance >20 cm from all persons during
normal operation. For operation within the 5GHz frequency range, this device
is restricted to indoor environments.
Warning: Read and understand the installation instructions and all safety
warnings before connecting the eFemto to the power source. Failure to
understand safety precautions
may result in injury.
Warning: Operate the eFemto only with the power adapter supplied
with the product.
Warning: Do not cover the eFemto or block the airflow to the device
with any objects.
California Prop65 Warning: The plastic and cords on this product contain
phth alates, a chemical known to the State of California to cause cancer, birth
defects and other reproductive harm. Wash hands after handling.
information, please visit the following site:
USA: Federal Communications Commission (FCC) statement
This device complies with FCC part 15 FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference, including interference that may cause undesired
operation of the device.
FCC Warning:
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment. Note: This equipment has been
tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device meets the FCC and IC requirements for RF exposure in public or
uncontrolled environments.
FCCID: 2AO38LTE2004-04
Copyright 2020 Casa Systems. All rights reserved.
What's in the eFemto Box
 eFemto
• Mounting Bracket with Hardware
• GPS Antenna and cable
• Ethernet cable – 1.5m
• Power cord
• Power supply (not plenum rated)
• Quick Start Guide

Mounting Procedure

The package contains screws and anchors for drywall mounting. Installation
on alternate surfaces will require the purchase of the appropriate anchors
and hardware.
For more
www.p65warnings.ca.gov
1. Determine the mounting location and verify that no wires, pipes, etc.,
are directly behind or in the wall at the point of mounting.
2. Use the wall mounting bracket to act as a template to mark anchor
holes on the wall.
3. Drill holes into drywall and push in the supplied plastic drywall anchors.
Installation on surfaces other than drywall may require different
anchoring hardware which can be purchased at your local hardware store.
4. Align the mounting bracket with the wall anchors and attach using the
supplied screws.
5. Slide the eFemto with mounting bracket into the wall mounting bracket.
6. Fasten retaining screws (Self-tapped screw,1018 harden, PA4*25, Phillips
2#, Color-Zn plating) on the side of the bracket.
7. When power is supplied through the POE port, the POE power source
should meet the requirements of ES1 and PS2

Connections

Prerequisites

Ethernet and Backhaul (B/H) Requirements

For optimum performance regarding backhaul bandwidth requirements and specific
firewall settings, please refer to the User Guide.

GPS Signal

The eFemto requires a strong GPS signal from the provided indoor GPS antenna. For
installation other than with the provided GPS antenna, please refer to the online 4G
LTE Network Extender for Enterprise User Guide.

Placement

The eFemto can be installed: vertically or horizontally on a wall, floor, or ceiling.
Place the unit at least 10 feet away from products that generate electromagnetic
radiation (e.g., microwave oven).
1. Identify a location for the eFemto, central to users, but no more than
21 feet from an exterior window or wall to allow for a strong GPS
signal.
2. Identify a power source for the eFemto.
3. Follow device mounting, installation and power up steps
