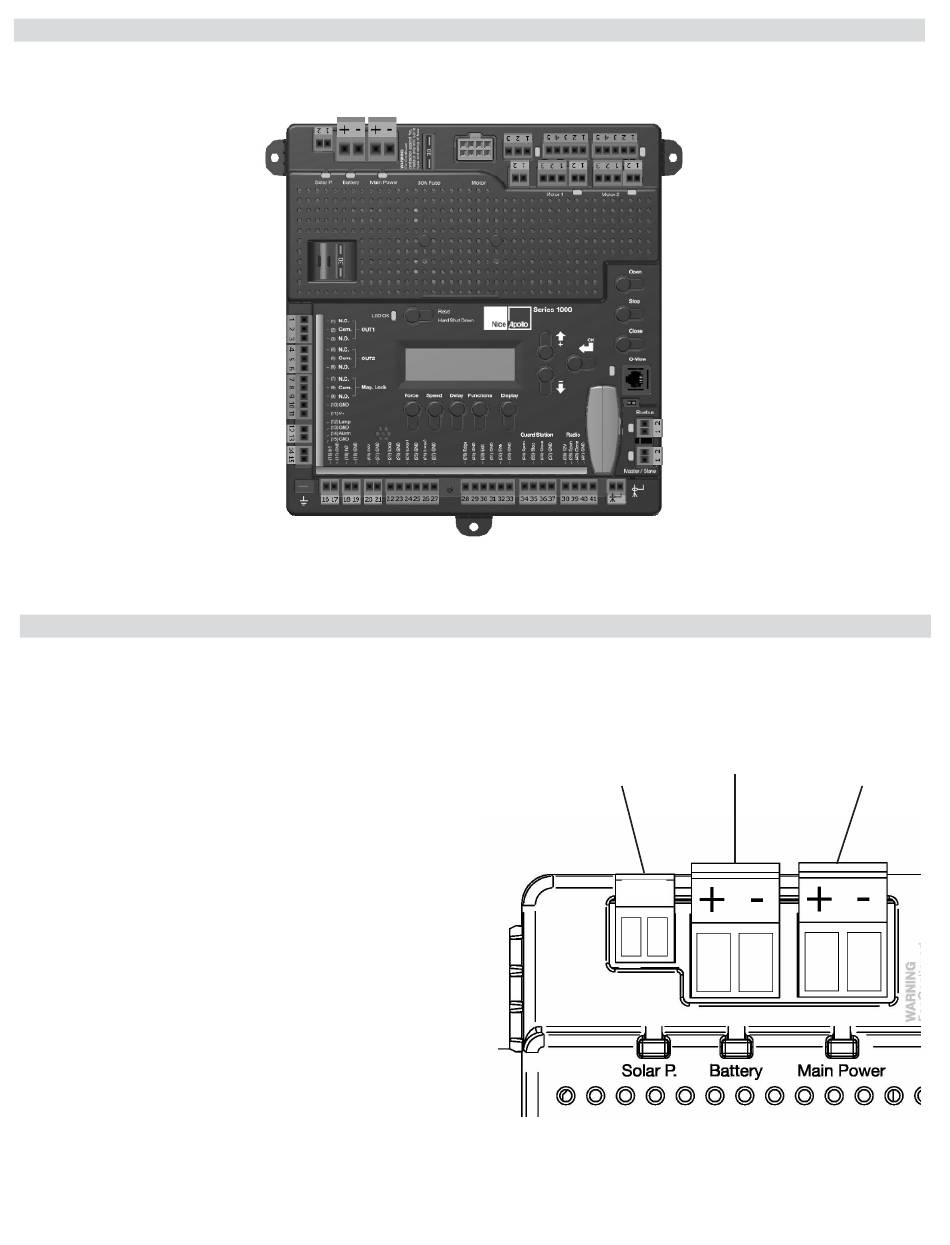

5 - CIRCUIT BOARD LAYOUT

Accessory
Output
Connections
Earth Ground

6 - INCOMING POWER WIRING

Power input connections should be wired as follows:
Solar panel
Connect wires to the solar panel terminal block. The positive
wire of the panel connects to the left terminal marked "+".
Note: If the panel is connected backwards a red LED will
illuminate below the terminal. If solar power is to be used it
will be necessary to program control board for STANDBY
operation. See section 16 for information on STANDBY
mode.
Battery
Connect wires to the battery terminal block. The positive wire
of the battery connects to the left terminal marked "+".
Note: If the battery is connected backwards a red LED will
illuminate below the terminal.
Main Power - This terminal block is for incoming 10-
35VDC power only!
Connect wires to the main power terminal block. Positive of
the power supply connects to the left terminal marked "+".
This input should only be used with a power supply capable
of supplying 10-35VDC at 20 amps.
Note: If supply is connected backwards a red LED will
illuminate below the terminal. If supply is connected properly a
green LED will illuminate.
8
Power Input
Connections
Accessory Input Connections
Motor Output
Connections
SOLAR
BATTERY
PANEL
+ -
BlueBus
Connection
Master / Slave
Connection
MAIN
POWER
