8.7 - ACTUATOR WIRING

Tighten the wire terminals to complete the wiring connection
to the T5/T7. Re-attach the cover and secure with the
provided Phillips-head screws.

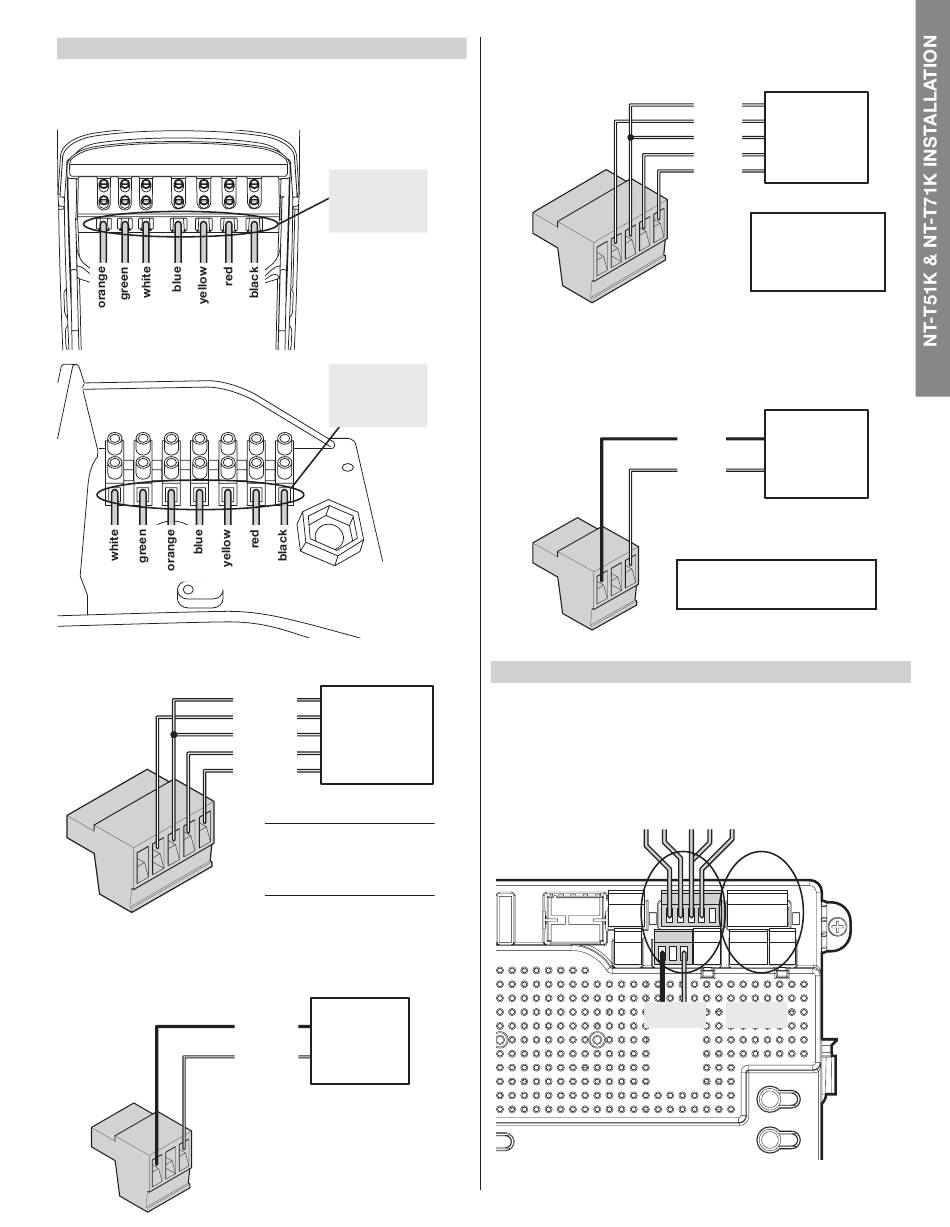

T5 MOTOR WIRING
T7 MOTOR WIRING
Connect the T5/T7 cable to the 5-pin connector as shown
below for pull to open installations
5
4
3
2
1
Connect the actuator motor leads to the 3-pin connector
as shown below. Note: If the gate moves in the opposite
direction from what is expected, reverse the actuator
wiring from what is shown. (Red to Pin 3, Black to Pin 1).
3
2
1
Connect T5 motor
cable to outlined
wire terminals
Connect motor
cable to outlined
wire terminals
green
yellow
T5 and T7
blue
Limit and
orange
Encoder wiring
white
green: limit common
yellow: motor encoder signal
blue: common
orange: open limit switch
white: close limit switch
red
T5 and T7
Motor wiring
black
Connect the T5/T7 cable to the 5-pin connector as shown
below for push to open installations.
5
4
3
2
1
Connect the T5/T7 motor leads to the 3-pin connector as
shown below. Note: If the gate moves in the opposite direc-
tion from what is expected, reverse the motor wiring from
what is shown. (Red to Pin 1, Black to Pin 3).
3
2
1
8.8 - LIMIT AND MOTOR CONNECTION TO THE BOARD
Install the 5 and 3-pin connector for motor 1 into the
connection labeled "Motor 1" on the controller as shown.
For a dual gate installation install the 5 and 3-pin and
connector for motor 2 into the connection labeled "Motor 2".
Note: (Motor 1) - Make sure motor lead connector is plugged
in below the limit 5 pin terminal connector
MOTOR 1
Green
T5, T7
Yellow
H12, M12
Blue
Limits and
White
Encoder
Orange
White: Close limit
Orange: Open Limit
Green: Limit Common
Yellow: Encoder Signal
Blue: Encoder Power
T5, T7
Black
H12, M12
Red Motor Leads
NOTE: If gate moves in opposite
direction from what is expected,
reverse the motor power lead wiring
MOTOR 2
