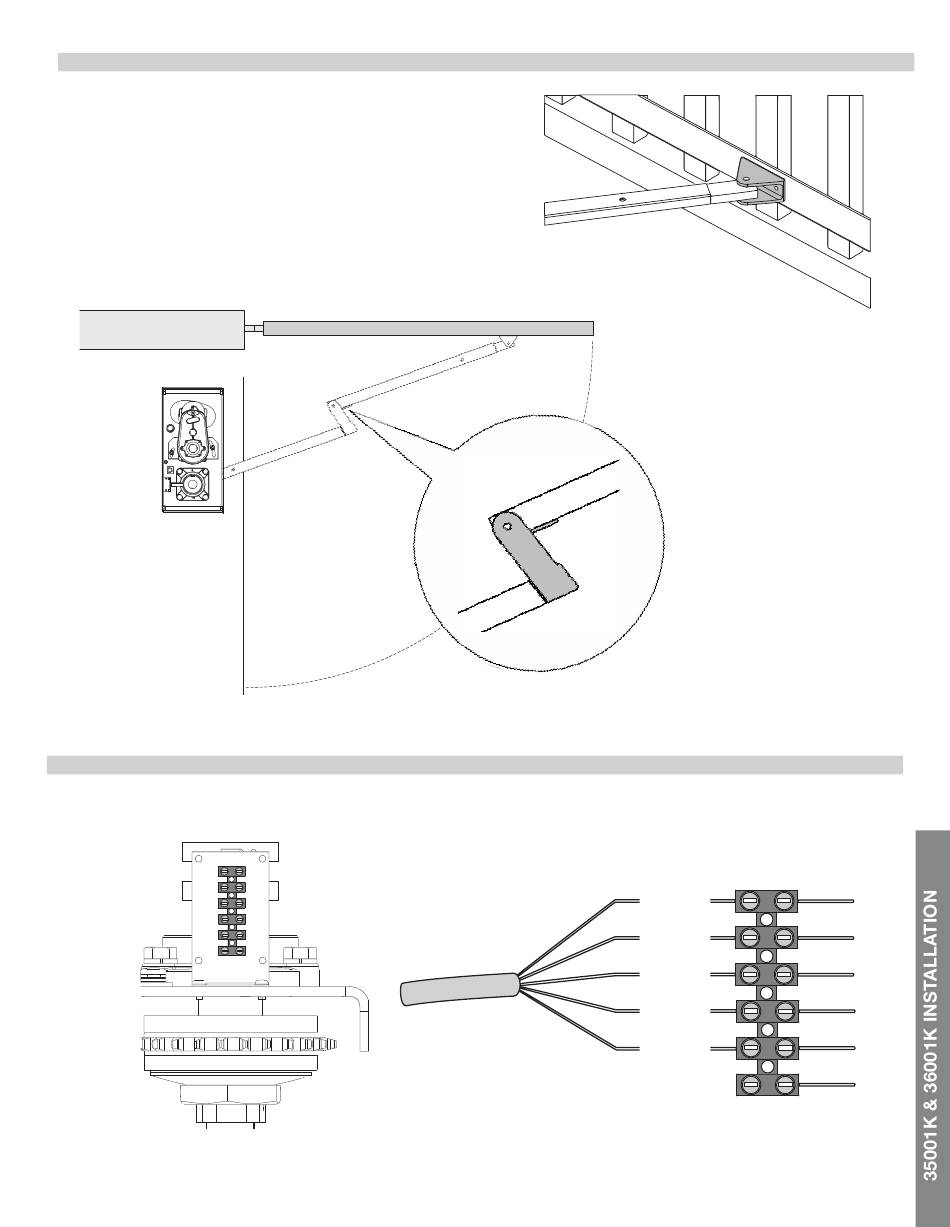

10.5 - GATE BRACKET MOUNTING

Push the arm assembly up against the gate in the closed position.
Make sure that the primary arm is locked into the stop tab on the
secondary arm as shown below.
Tack weld or clamp the gate attach bracket to the gate.
Note: Permanent welds or bolt attachment should be completed
once limits are set.

10.6 - CHASSIS WIRING

Located inside the chassis assembly next to the limit switches is a white terminal block. Wire the harness cable to the terminal
block as shown below.
Make sure that the primary arm
is locked into the stop tab on
the secondary arm.
Orange
White
Green
Red
Black
