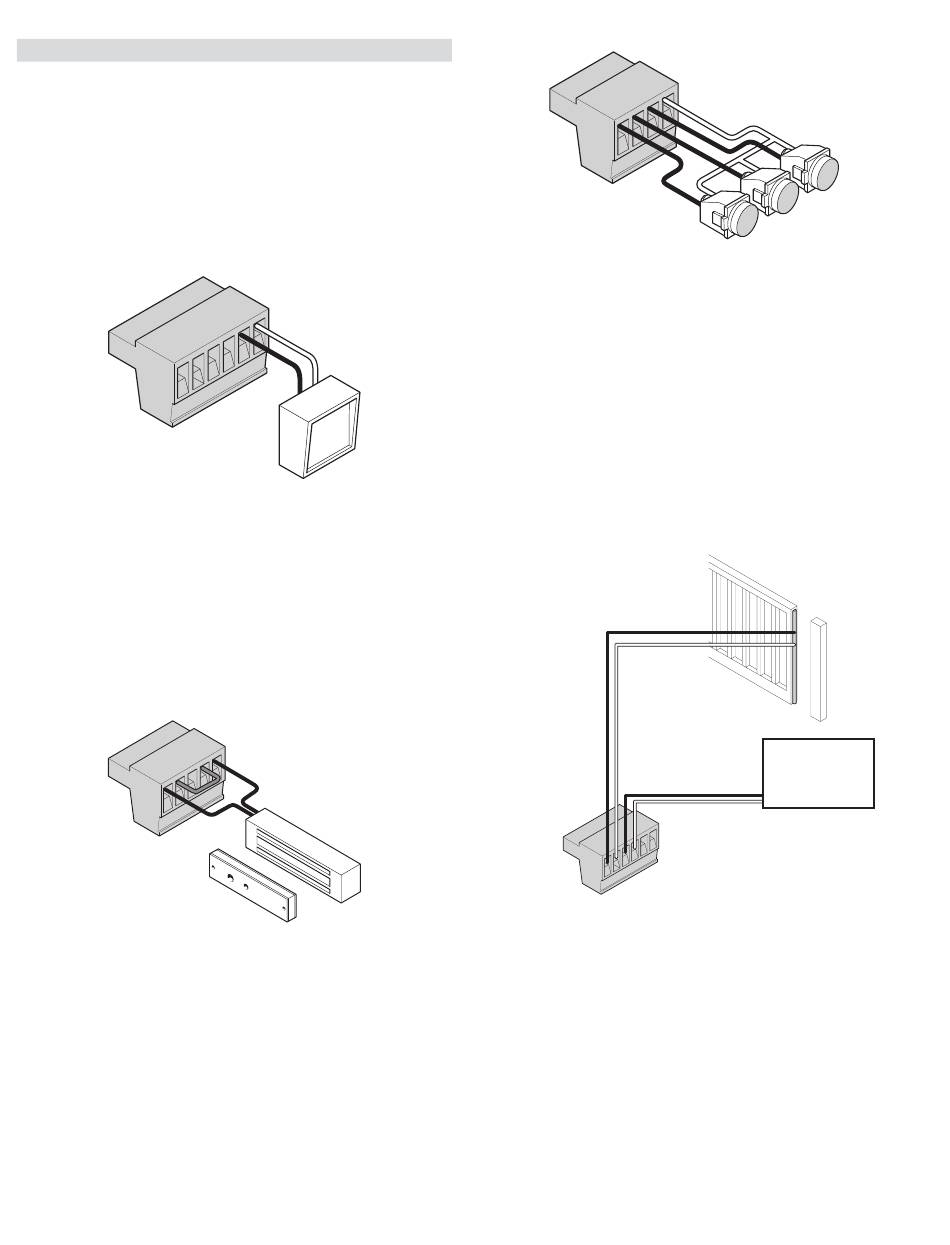

15 - OPTIONAL INPUTS

15.1 - Fire dept. connection

32 FIRE
33 GND
Dry contact input for a fire department control switch. Normally Open (NO)
contact must be shorted to ground through a switch to open the gate.
The FAIL SAFE connector which is shorted at the factory with a jumper
(Normally
Closed NC), may be wired in parallel with the Fire input to release the
motor in the event of an emergency entry by the fire department during
a power failure. Opening the FAIL SAFE contacts allows the gate to be
pushed open by hand.
2 8
Figure - FIRE DEPT. INPUT

15.2 - Magnetic lock connection

7 NC
8 Com (Common)
9 NO
10 GND
11 V+ (Voltage is determined by incoming power supply)
This connection is used to install the magnetic lock. In this instance a gate
can be locked magnetically to prevent a forced opening. Consult lock
manual for specifics on installation and wiring
8
7
Figure - MAGNETIC LOCK WIRING (EXAMPLE)

15.3 - Guard station

34 OPEN
35 STOP
36 CLOSE
37 GND
With the Guard Station switches installed, the user can operate the gate
by pushing the respective buttons for the command that is desired. Gate
Open and Close are controlled by NORMALLY OPEN (NO) and Stop is
controlled by NORMALLY CLOSED (NC) momentary switches.
NOTE: If the guard station inputs are not used STOP (35) and GND (37)
need to be tied together
34
3 3
3 2
3 1
3 0
2 9
E
F I R
.
P T
D E
1 1
1 0
9
3 6
3 5
3 4
Figure - GUARD STATION INPUTS

15.4 - Exit and edge inputs wiring diagram

28 EDGE
29 GND
30 EXIT
31 GND
The EDGE input may be configured as a monitored ANALOG input, or DIGITAL
(NC or NO) input. The EDGE sensor input is intended for ANSI/UL 325 listed
gate edge sensors to protect against entrapment and hazardous pinch points
along the moving edge of the closing gate. The EXIT sensor input is provided
to activate to open the gate, or re-open a closing gate, upon sensing an exiting
vehicle.
3 3
3 2
3 1
3 0
2 9
2 8
Figure - EXIT AND EDGE INPUTS
3 7
S E
C L O
O P
N O
S T
E N
O P
N C
N O
Exit Device
