Undercounter Installation

Unpack the Unit
Before moving the undercounter unit into position, make
sure all opening dimensions, electrical and plumbing
requirements are complete and accurate.
IMPORTANT NOTE: The floor under the undercounter unit
must be at the same level as the surrounding finished floor
to allow for removal of the unit for servicing.
Use an appliance dolly to move the undercounter unit near
the installation opening. Position the dolly at the side of
the unit to prevent damage to finished surfaces. Remove
and discard all packing materials and tape.
IMPORTANT NOTE: Do not discard the kickplate, anti-tip
bracket, hardware and the shipping bolts that hold the
wood to the bottom of the unit (leveling legs). These items
will be needed for the installation.
For models UC-24BG and UC-24C(I), the roller-assembly
wine shelves should be removed to reduce weight and
prevent them from rolling. To remove, pull the shelf out to
its full extension, gently and evenly lift up on both sides of
the front of the shelf and remove. Reverse the procedure
to reinstall the shelf.
Before moving the undercounter unit into position,
protect any finished flooring with appropriate materials
and secure the door closed.
Anti-Tip Bracket
To prevent the unit from tipping forward and provide a
stable installation, the unit must be secured in place
with the anti-tip bracket.
An anti-tip bracket and hardware is provided with the
undercounter unit. Placement of the anti-tip bracket is
critical to a stable installation. The anti-tip bracket must be
installed securely.
The anti-tip bracket should be attached to the wall behind
the unit with the bracket flange located immediately above
the top of the unit. Refer to the illustration below.
For installations that cannot accommodate the anti-tip
bracket, the optional countertop bracket (provided) can be
used to secure the undercounter unit. This bracket will
secure the front of the unit to the underside of the coun-
tertop, above the unit. Refer to the illustration below. If it is
not possible to use the countertop bracket, wedge shims
along the sides and top of the unit to secure.

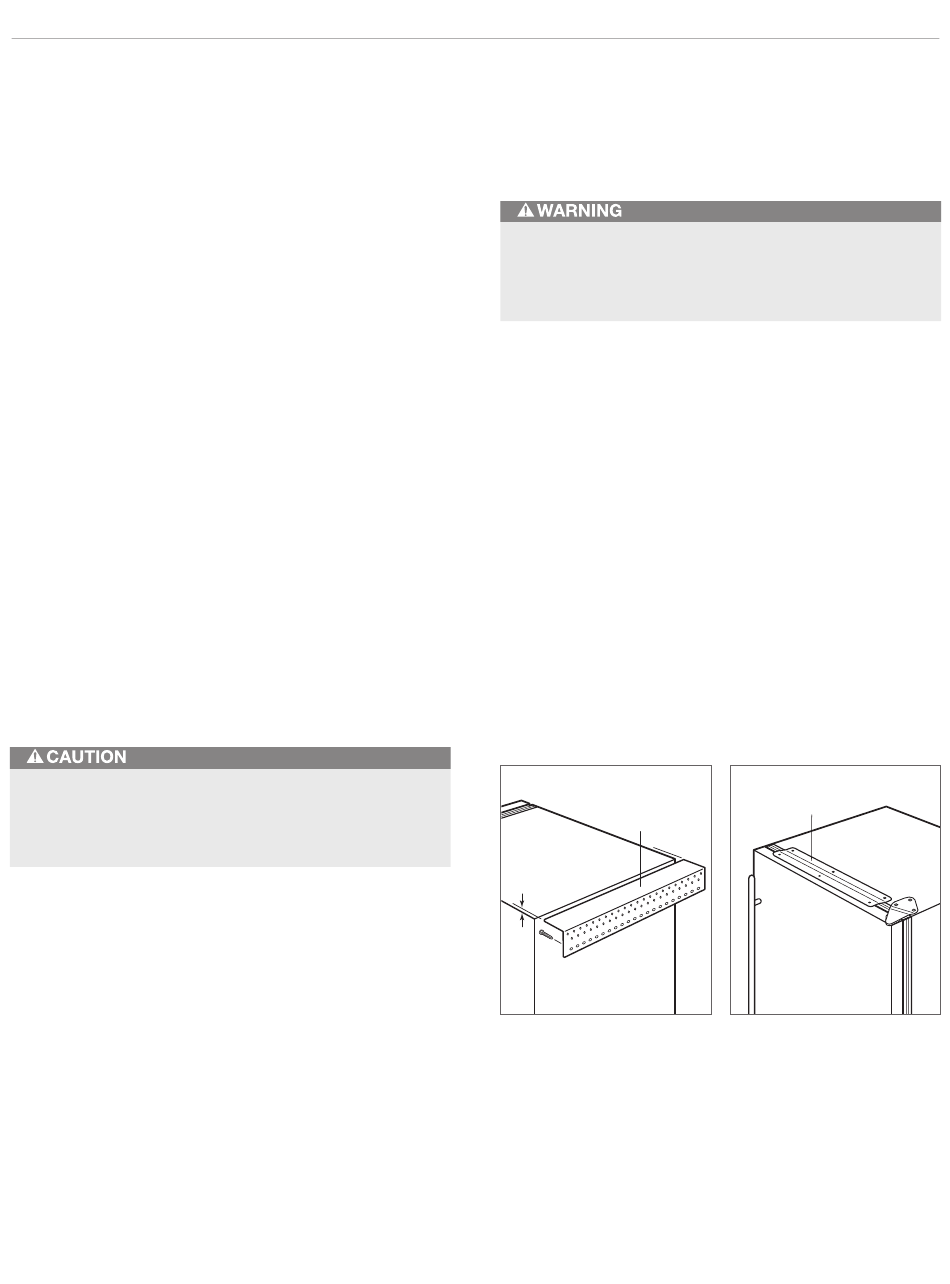

ANTI-TIP
BRACKET
1
/ "
4 (6)
Anti-tip bracket.
subzero.com/specs
COUNTERTOP
BRACKET
Countertop bracket.
