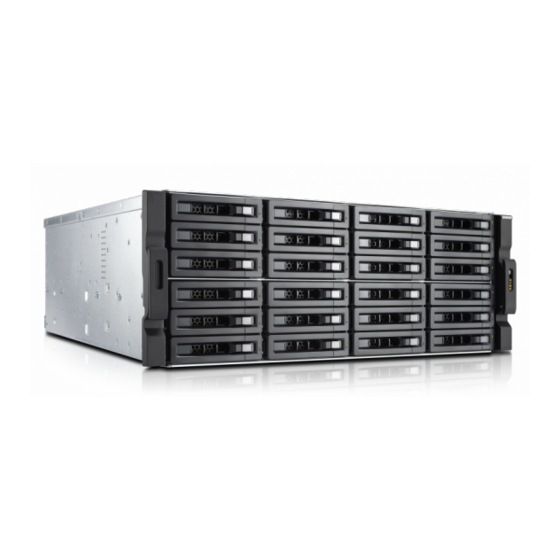

QNAP Turbo NAS TS-EC 80 Series Hardware User Manual
Hide thumbs
Also See for Turbo NAS TS-EC 80 Series:
- Hardware user manual (70 pages) ,
- Hardware user manual (63 pages)
Related Manuals for QNAP Turbo NAS TS-EC 80 Series
Summary of Contents for QNAP Turbo NAS TS-EC 80 Series
- Page 1 QNAP Turbo NAS TS- ECx80 / TVS-ECx80 Series Hardware User Manual © 2015. QNAP Systems, Inc. All Rights Reserved. 2015/07/17...
- Page 2 Thank you for choosing QNAP products! This user manual provides description of the hardware of the Turbo NAS and relevant guideline of certain functions. Please read carefully and strictly adhere to the instructions of the manual. This user manual is applicable to the following Turbo NAS models:...
- Page 3 DISCLAIMER In no event shall QNAP Systems, Inc. (QNAP) liability exceed the price paid for the product from direct, indirect, special, incidental, or consequential damages resulting from the use of the product, its accompanying software, or its documentation. QNAP makes no...
- Page 4 Regulatory Notice FCC Notice The QNAP NAS complies with different FCC compliance classes. Please refer to 0 for details. Once the class of the device is determined, refer to the following corresponding statement. ======================================================= FCC Class A Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference.
- Page 5 Modifications: Any modifications made to this device that are not approved by QNAP Systems, Inc. may void the authority granted to the user by the FCC to operate this equipment. CE NOTICE The QNAP NAS complies with different CE compliance classes. Please refer to 0 for details.
- Page 6 Symbols in this document This icon indicates the instructions must be strictly followed. Failure to do so could result in injury to human body or death. Warning This icon indicates the action may lead to disk clearance or loss OR failure to follow the instructions could result in data damage, disk Caution damage, or product damage.
-
Page 7: Table Of Contents
Chapter 3. USB One Touch Copy ..............14 Chapter 4. LED and Alarm Buzzer Specifications ........... 15 Chapter 5. Upgrade Memory on QNAP Turbo NAS (RAM Module Installation) 18 TS-EC2480U-RP, TS-EC1680U-RP, TS-EC1280U-RP, TS-EC880U-RP, TVS-EC2480U-SAS-RP, TVS-EC1680U-SAS-RP, TVS-EC1580MU-SAS-RP, TVS-EC1280U-SAS-RP ................18 TS-EC880 P , TS-EC1080 P .............. -
Page 8: Safety Warnings
Safety Warnings The NAS can operate normally in temperatures of 0ºC–40ºC (32ºF -104ºF) and relative humidity of 5%–95%. Please make sure the environment is well-ventilated. The power cord and devices connected to the NAS must provide correct supply voltage (100W, 90–264V). Do not place the NAS in direct sunlight or near chemicals. -
Page 9: Chapter 1. Cpu And Memory Specifications
Caution: Modifying the hardware, software, or firmware of the QNAP products will void the warranty. QNAP is not responsible for any form of damage or loss of data caused by modding the QNAP products. Users should bear their own risks of all sorts of possible data loss or system instabilities due to changing the hardware parts, modifying the default system firmware or installing any unauthorized third party applications on QNAP products. - Page 10 System TS-EC1280U-RP TS-EC1680U-RP TS-EC2480U-RP Quad-Core Intel Xeon Quad-Core Intel Xeon Quad-Core Intel Xeon Processor E3-1200 v3 Processor E3-1200 v3 Processor E3-1200 v3 Family Family Family Memory 4GB DDR3 ECC RAM 4GB DDR3 ECC RAM 4GB DDR3 ECC RAM Flash 512MB (USB DOM) 512MB (USB DOM) 512MB (USB DOM) CPU replaceable...
- Page 11 System TVS-EC2480U-SAS-RP TVS-EC1580MU-SAS-RP Quad-Core Intel Xeon Quad-Core Intel Xeon Processor Processor E3-1200 v3 Family E3-1200 v3 Family Memory 16GB DDR3 RAM 16GB DDR3 RAM Flash 512MB (USB DOM) 512MB (USB DOM) CPU replaceable Memory replaceable Number of LONG-DIMM slots Number of hard 15 (3.5’’x 9, 2.5’’x6) drive slots Number of PCIe...
-
Page 12: Chapter 2. Power Button And Reset Button Behavior
LCD panel password: (blank)* VLAN will be disabled. Service binding: All the NAS services run on all available network interfaces. *This feature is only provided by the NAS models with LCD panels. Please visit http://www.qnap.com for details. - Page 13 Advanced system reset (10 sec) Press the reset button for 10 seconds; you will hear two beeps at the third and the tenth seconds. The NAS will reset all the system settings to default as it does by web-based system reset in “Control Panel” > “System Settings” > “Backup / Restore” > “Restore to Factory Default”...
-
Page 14: Chapter 3. Usb One Touch Copy
Chapter 3. USB One Touch Copy This feature is only provided by the NAS models with a USB One Touch Copy button. Please visit http://www.qnap.com for details. Number of seconds (press the one touch copy button System to trigger data copy) All NAS models 0.5 sec... -
Page 15: Chapter 4. Led And Alarm Buzzer Specifications
Chapter 4. LED and Alarm Buzzer Specifications The LED indicators of the NAS indicate the system status and information. When the NAS is turned on, check the following items to make sure the system status is normal. Note that the following LED information is applicable only when users have properly installed the hard drive, and connected the NAS to the network and the power supply. - Page 16 Color LED Status Description The disk data is being accessed from the Orange network and a read/write error occurs during the process. Orange Flashes The NAS is connected to the network. orange The 10GbE network expansion card is Green installed. 10 GbE Green No 10GbE network expansion card is installed.
- Page 17 Beep alarm: All NAS models The beep alarm can be disabled in “Control Panel” > “System Settings” > “Hardware”. Beep sound Number of Times Description The NAS is starting up. The NAS is being shut down (software shutdown). Short beep (0.5 sec) The user presses the reset button to reset the NAS.
-
Page 18: Chapter 5. Upgrade Memory On Qnap Turbo Nas (Ram Module Installation)
QNAP provides RAM module (optional purchase) for users to upgrade the memory of the NAS. Insert an extra RAM module on the motherboard of the NAS to upgrade the memory. - Page 19 Turn off the NAS. Disconnect the power adaptor, network cable(s), and any other connectors or cables from the NAS. Before installing the network expansion card, put on an antistatic wrist strap to prevent electrostatic discharge. The crocodile clip should be connected to the ground. Loosen the 2 screws on the rear of the NAS as shown in the illustration.
- Page 20 Grasp the edge of the RAM module. Align the notch on the gold edge of the RAM module with the notch in the RAM slot. Insert the RAM module to the RAM slot until it cannot go any further. Insert the Motherboard Drawer, push the handle, locking NAS rear two screws.
-
Page 21: Ts-Ec880 Pro, Ts-Ec1080 Pro
TS-EC880 Pro, TS-EC1080 Pro Turn off the NAS. Disconnect the power adaptor, network cable(s), and any other connectors or cables from the NAS. Before installing the network expansion card, put on an antistatic wrist strap to prevent electrostatic discharge. The crocodile clip should be connected to the ground. - Page 22 Remove the case cover of the NAS gently. Loosen the cable Release the ejector clips gently by pulling them out of the sides of the RAM slot.
- Page 23 Grasp the edge of the RAM module. Align the notch on the gold edge of the RAM module with the notch in the RAM slot. Insert the RAM module to the RAM slot until it cannot go any further. Installed on the NAS enclosure, locking rear of the seven screws NAS.
-
Page 24: Chapter 6. Network Expansion Card Installation
Chapter 6. Network Expansion Card Installation Warning: The following instructions should only be performed by an authorized and trained technician. Strictly adhere to the instructions to install a network expansion card on the NAS. Failure to do so could result in injury to human body or death. The TS-x80 series provides expansion slots for network expansion. - Page 25 Network Expansion Card Compatibility Bracket A (X520-T2) Intel® Ethernet Server Adapter X520-T2 (E10G42B) Bracket B 1. Intel® Ethernet Server Adapter X520-SR2 (X520-SR2/X520-DA2) (E10G42BFSR) 2. Intel® Ethernet Server Adapter X520-DA2 (E10G42BTDA) Bracket C (Emulex) 1. Emulex OneConnect 10GbE Network Adapters, SFP+ Direct attach copper (OCe11102-NX) 2.
- Page 26 Remove the case cover of the NAS gently. Loosen the screws and remove the expansion slot cover. Grasp the edge of the network expansion card. Align the notch on the gold edge of the card with the notch in the PCIe slot. Insert the network expansion card to the PCIe slot until it cannot go any further.
-
Page 27: Ts-Ec2480U-Rp, Ts-Ec1680U-Rp, Ts-Ec1280U-Rp, Ts-Ec880U-Rp, Tvs-Ec2480U-Sas-Rp, Tvs-Ec1680U-Sas-Rp, Tvs-Ec1580Mu-Sas-Rp, Tvs-Ec1280U-Sas-Rp
Fasten the screws. Close the case cover and fasten the screws. Connect the power adaptor and cables to the NAS. To check that the network expansion is recognized by the NAS, power up the NAS and login the web interface as an administrator. Go to “Control Panel” > “System Settings” >... - Page 28 connectors or cables from the NAS. Before installing the network expansion card, put on an antistatic wrist strap to prevent electrostatic discharge. The crocodile clip should be connected to the ground. Loosen the 2 screws on the rear of the NAS as shown in the illustration. Hold the handle pulled backwards to remove the Motherboard Drawer.
- Page 29 Loosen the screw and remove the expansion slot cover. Insert the network expansion card to the PCIe slot until it cannot go any further. Then fasten the screw. Push back Motherboard Drawer. Then fasten the screw. Connect the power adaptor and cables to the NAS. To check that the network expansion is recognized by the NAS, power up the NAS and login the web interface as an administrator.
-
Page 30: Chapter 7. Install An Msata Flash Module To The Nas
Chapter 7. Install an mSATA Flash module to the NAS. Warning: The following instructions should only be performed by an authorized and trained technician. Strictly adhere to the instructions to install a mSATA module on the NAS. Failure to ... - Page 31 Loosen the 2 screws on the rear of the NAS as shown in the illustration. Hold the handle and pull backwards to remove the Motherboard Drawer. Carefully grasp the edge of the mSATA Flash Module. Align the notch on the gold edge of the mSATA module with the notch in the mSATA slot.
- Page 32 Insert the module fixing Return the Motherboard Drawer to its normal position. Connect the power adaptor and cables to the NAS.
-
Page 33: Ts-Ec880 Pro, Ts-Ec1080 Pro
To check that the mSATA Flash Module is recognized by the NAS, power up the NAS and login to the web interface as an administrator. Go to “Control Panel” > “Storage Manager” > “Disk” and check the “Internal Cache Port”. TS-EC880 Pro, TS-EC1080 Pro Turn off the NAS. - Page 34 Remove the case cover of the NAS gently. Carefully grasp the edge of the mSATA Flash Module. Align the notch on the gold edge of the mSATA Flash Module with the notch in the mSATA slot. Insert the mSATA Flash Module to the mSATA slot until it cannot go any further. Insert and fasten screws in place as indicated.
- Page 35 Close the case cover and fasten the screws. Connect the power adaptor and cables to the NAS. To check that the mSATA Flash Module is recognized by the NAS, power up the NAS and login to the web interface as an administrator. Go to “Control Panel” > “Storage Manager”...
-
Page 36: Hot-Swap Hard Drives
Chapter 8. Hot-swap Hard Drives The QNAP NAS is compatible with 2.5-inch/3.5-inch SATA hard drives from major hard drive brands. For the updated hard drive compatibility list, please visit http://www.qnap.com. Caution: QNAP disclaims any responsibility for product damage/malfunction or data ... - Page 37 2. The storage pool status should be “Warning” and RAID group status should be “Degraded”. 3. Prepare a new hard drive to replace the failed one. The capacity of the new hard drive should be the same as or larger than the failed hard drive. 4.
-
Page 38: Chapter 9. Raid Recovery
Chapter 9. RAID Recovery The QNAP NAS supports recovery of a failed RAID group from unintentional disconnection or removal of the hard drives from the system. Users can recover an inactive RAID 1, RAID 5, or RAID 6 group to degraded mode, or an inactive RAID 0 and JBOD configuration to normal. - Page 39 Standard QNAP RAID 5 Standard QNAP RAID 6 RAID 5 RAID 6 Degraded mode N-1 & N-2 N-1 & N-2 Read only N-1, bad blocks N-2, bad blocks protection (for found in the found in the immediate data surviving drives of surviving drives of backup &...
-
Page 40: Chapter 10. Use The Lcd Panel
Chapter 10. Use the LCD Panel This feature is only provided by the NAS models with LCD panels. Please visit http://www.qnap.com for details. The NAS provides a handy LCD panel for users to perform disk configuration and view the system information. - Page 41 the NAS. The progress will be shown on the LCD panel. When it reaches 100%, the RAID volume can be accessed. Users can create share folders and upload files to the folders on the NAS. In the meantime, to make sure the stripes and blocks in all the RAID component devices are ready, the NAS will execute RAID synchronization and the progress will be shown on “Storage Manager”...
- Page 42 1. TCP/IP The following options are available: LAN1 IP Address LAN1 Subnet Mask LAN1 Gateway LAN 1 PRI. DNS LAN 1 SEC. DNS Enter Network Settings Network Settings – DHCP Network Settings – Static IP* ...
- Page 43 LCD Display Drive configuration RAID 5 (B) RAID 5 rebuilding RAID 5 (S) RAID 5 re-synchronizing RAID 5 (U) RAID 5 is unmounted RAID 5 (X) RAID 5 non-activated 4. System This section shows the system temperature and the rotation speed of the system fan. °...
- Page 44 System Messages When the NAS encounters a system error, an error message will be shown on the LCD panel. Press the “Enter” button to view the message. Press the “Enter” button again to view the next message. System Message Description Sys.
-
Page 45: Chapter 11. Install Power Supply Unit
Chapter 11. Install Power Supply Unit Note: The following instructions should only be performed by an authorized and trained technician. To replace a failed power supply unit on the TS-EC2480U-RP, TS-EC1680U-RP, TS-EC1280U-RP, TS-EC880U-RP TVS-EC2480U-SAS-RP, TVS-EC1680U-SAS-RP, TVS-EC1580MU-SAS-RP, TVS-EC1280U-SAS-RPTurbo NAS, follow the steps below. Turn off the NAS. - Page 46 Unplug the failed power supply. Plug in a new power supply to the NAS. Turn on the NAS. Connect the power adaptor and cables to the NAS.
- Page 47 Enable warning alert for redundant power supply on the web-based interface: If two power supply units (PSU) have been installed on the NAS and connected to the power sockets, both PSU will supply the power to the NAS (applied to 1U and 2U models). Users can enable redundant power supply mode in “Control Panel”...
-
Page 48: Technical Support
Technical Support QNAP provides dedicated online support and customer service via instant messenger. Online Support: http://helpdesk.qnap.com/ Forum: http://forum.qnap.com Technical Support in the USA and Canada: Online Support: http://helpdesk.qnap.com/ TEL: +1-909-595-2782 #3 Address: 168 University Parkway, Pomona CA 91768 Service Hours: 08:00-17:00 (GMT- 08:00 Pacific Time, Monday to Friday) -
