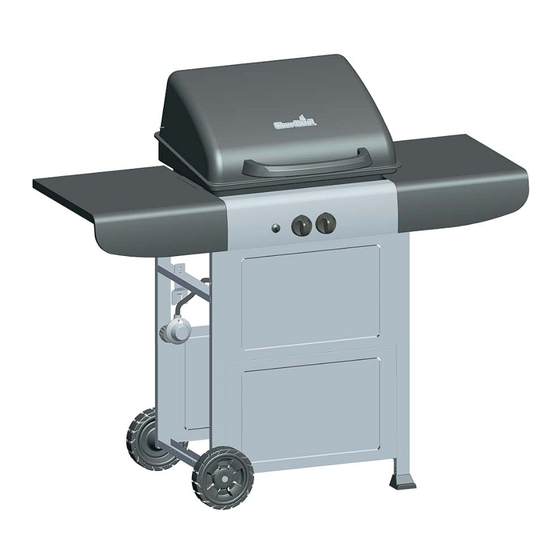

Gas grill
Hide thumbs
Table of Contents

Advertisement

Quick Links

MODEL 473721007 • PRODUCT GUIDE
THIS GRILL IS FOR OUTDOOR USE ONLY.
CAUTION:
Read and follow all safety statements, assembly
instructions, and use and care directions before
attempting to assemble and cook.
INSTALLER/ASSEMBLER:
Leave this manual with consumer.
CONSUMER:
Keep this manual for future reference.
If you have any questions or need assistance during assembly, please call 1-800-241-7548.
To insure your satisfaction and for follow-up service, register your grill online at www.grillregistration.com
WARNING:
Failure to follow all manufacturer's instructions
could result in serious personal injury and/or
property damage.
CAUTION:
Some parts may contain sharp edges –
especially as noted in the manual! Wear
protective gloves if necessary.
473721007 • 80012665 • 02-14-07

Advertisement

Table of Contents
loading

Related Manuals for Char-Broil TRADITIONS 473721007

Summary of Contents for Char-Broil TRADITIONS 473721007

  • Page 1 MODEL 473721007 • PRODUCT GUIDE THIS GRILL IS FOR OUTDOOR USE ONLY. CAUTION: Read and follow all safety statements, assembly instructions, and use and care directions before attempting to assemble and cook. INSTALLER/ASSEMBLER: Leave this manual with consumer. CONSUMER: Keep this manual for future reference. If you have any questions or need assistance during assembly, please call 1-800-241-7548.

  • Page 2: For Your Safety

    DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. Open lid. 4. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department. WARNING 1.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS For Your Safety ........2 Grill Service Center.

  • Page 4: Use And Care

    USE AND CARE DANGER • NEVER store a spare LP cylinder under or near the appliance or in an enclosed area. • Never fill a cylinder beyond 80% full. • An over filled or improperly stored cylinder is a hazard due to possible gas release from the safety relief valve.

  • Page 5: Connecting Regulator To Lp Cylinder

    LP Cylinder Exchange • Many retailers that sell grills offer you the option of replacing your empty LP cylinder through an exchange service. Use only those reputable exchange companies that inspect, precision fill, test and certify their cylinders. Exchange your cylinder only for an OPD safety feature-equipped cylinder as described in the "LP Cylinder"...
  • Page 6 Hold coupling nut and regulator as shown for proper connection to LP cylinder valve. 6. Turn the coupling nut clockwise and tighten to a full stop. The regulator will seal on the back-check feature in the LP cylinder valve, resulting in some resistance. An additional one-half to three-quarters turn is required to complete the connection.
  • Page 7 Only use the pressure regulator and hose assembly supplied with this grill. Replacement pressure regulator and hose assemblies must be specified or supplied by Char-Broil, LLC. s If you have a grill problem see the "Troubleshooting Section". s If the regulator frosts, turn off grill and LP cylinder valve immediately.
  • Page 8 Ignitor Lighting s Do not lean over grill while lighting. 1. Open lid. Turn on gas at LP cylinder. Turn LEFT knob to IGNITE. Push Ignitor Button rapidly (up to 5 times) to light. Be sure burner lights and stays lit. If ignition does NOT occur in 5 seconds, turn the burner controls OFF, wait 5 minutes and repeat the lighting procedure.

  • Page 9: Spider Alert

    CAUTION SPIDER ALERT! GAS COLLECTOR BOX & IGNITOR CONTROL PANEL VALVE VENTURI SHUTTER If you notice that your grill is getting hard to light or that the flame isn’t as strong as it should be, take the time to check and clean the venturi’s.
  • Page 10 Food Safety Food safety is a very important part of enjoying the outdoor cooking experience. To keep food safe from harmful bacteria, follow these four basic steps: Clean: Wash hands, utensils, and surfaces with hot soapy water before and after handling raw meat and poultry. Separate: Separate raw meats and poultry from ready-to-eat foods to avoid cross contamination.

  • Page 11: Parts List

    Design®, Sierra®, and TruFlame® are registered Trademarks of the W.C. Bradley Company. Thermos® is a registered trademark of the Thermos Company and its affiliates. Artisan Collection by Char-Broil ™, C3 and Design™, Char-Broil and Design™, Flame Design™, FlavorTents™, Grill 2 Go™, Grillin’ Stick™, Keeper of the Flame™, Keepers of the Flame™, Natural Grip™, Outdoor Cooking Collection and Design™, Patio Bistro™, PrecisionFlame™, Pro-Check™, QuickSet Grills and Design™, SmokerTents™, The Big Easy™, The Minute Grill™, The Edge™, The Tuscan...

  • Page 12: Parts Diagram

    PARTS DIAGRAM – Model No. 473721007 12 • 473721007...
  • Page 13 ASSEMBLY – Model No. 473721007 Position leg assemblies as shown below. Lay lower front panel between legs. Attach lower front panel to legs using four #10-24 X1/2" machine screws. Slip firebox supports onto legs making sure the firebox support with match light holder is on right #10-24 X 1/2"...
  • Page 14 Turn cart assembly over and attach lower rear panel to legs using four #10-24 X1/2" machine screws. #10-24 X ½” Machine Screw Qty. 4 Leg Assembly, Left 80012672 Turn cart upside down, install leg extenders. Insert wheel axle through legs and wheels and secure with large flat washer and hitch pin. 1”...
  • Page 15 Place cart in upright position. Attach tank exclusion rod using two #10-24 X1/2" machine screws and two #10-24 flange nuts. #10-24 X ½” Machine Screw Qty. 2 #10-24 Flange Nuts Qty. 2 Attach left side shelf to cart assembly using four #10-24X2" machine screws and four #10-24 flange nuts. #10-24 X 2”...
  • Page 16 Attach right side shelf to cart assembly using four #10-24X2" machine screws and four #10-24 flange nuts. #10-24 X 2” Machine Screw Qty. 4 #10-24 Flange Nut Qty: 4 Attach control panel to cart using two #10-24X2" and two #10-24X1-1/2" machine screws and four #10-24 flange nuts. "ALL"...

  • Page 17: Assembly

    Attach valve\hose\regulator assembly to control panel using two #10-24 X1/2" machine screws. Attach ignitor to a stamped nut. #10-24 X ½” Machine Screw Qty. 2 Valve/Hose/Regulator 80009002 Attach two wind shields to firebox assembly using two #10-24 X1/2” machine screws, fiber washers and #10-24 flange nuts on each side.
  • Page 18 Place firebox on cart by aligning valves into burner tubes. Make sure burner tubes and valves are correctly engaged (A) before attaching firebox to cart. Secure firebox to cart using four #10-24X1-1/2" machine screws, fiber washers and #10-24 flange nuts (B). #10-24 Flange Nut Qty: 4...
  • Page 19 Attach lower lid hinges to back of firebox using two #10-24X1/2" machine screws, fiber washers and #10-24 flange nuts per hinge. Center flat portion of hinge should be on bottom (see inset below). #10-24 Flange Nuts Qty: 4 #10-24X1/2” Machine Screws Qty: 4 Attach handle to front of lid using insulation washers, fiber washers and #10-24 wing nuts.
  • Page 20 Place lid assembly onto firebox, aligning hinges. Hinges on lid fit inside hinges on firebox. Secure using two hinge pins and hitch pins. Hinge Pin Qty. 2 1” Hitch Pin Qty. 2 Place vaporiser bar onto the two pins on each side inside the firebox. Place cooking grate onto firebox. Attach knobs to valve stems. 20 •...
  • Page 21 Insert ends of Swing Away pivot wire into holes in sides of grill lid. Insert ends of Swing Away leg wire into holes in sides of firebox. NOTE: Pivot and leg wires, running side-to-side, should be under wires running front-to-back. If pivot and leg wires are on top, Swing Away is installed upside-down.
  • Page 22 Attach tool hooks to the right side shelf. Tool Hooks 80007973 22 • 473721007...
  • Page 23 LP CYLINDER IS SOLD SEPARATELY. Fill and leak check the cylinder before attaching to grill and regulator (see Use & Care section). Once cylinder has been filled and leak checked, place cylinder into notches in tank support bracket. Make sure cylinder valve is facing front of grill. Slide tank retainer wire over cylinder collar and tighten tee knob.

  • Page 24: Troubleshooting

    EMERGENCIES: If a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department. Emergencies Possible Cause Gas leaking from • Damaged hose. cracked/cut/burned hose. Gas leaking from LP • Mechanical failure due to rusting or cylinder.
  • Page 25 Troubleshooting (continued) Problem Possible Cause Burner(s) will not light PIEZO PUSH-BUTTON AND ROTARY: using ignitor. • Push-button sticks at bottom. • Rotary knob rotates without clicking. • Sparking between ignitor and electrode. Burner(s) will not • See “GAS ISSUES:” on previous page. match light.

  • Page 26: Limited Warranty

    Consumer returns will not be accepted unless a valid Return Authorization is first acquired by calling 1-800-241-7548 and then clearly marked on the outside of the package and the package is shipped freight/postage pre-paid to the address above. 26 • 473721007 Char-Broil Consumer Relations P. O. Box 1240 Columbus, GA 31902-1240...

  • Page 27: Registration Card

    Please register your grill online at: WWW.GRILLREGISTRATION.COM (If you register online, you do not need to send in this registration card.) La parrilla estaba ensamblada Chimenea / Envíelo a: 473721007 • 27...
  • Page 28 Always ensure control knobs are in OFF position and regulator is attached to tank BEFORE opening tank valve to avoid low flames. Perform leak test regularly. Thank You for Your Purchase! Char-Broil, LLC • Columbus, GA 31902 • Printed in China...
