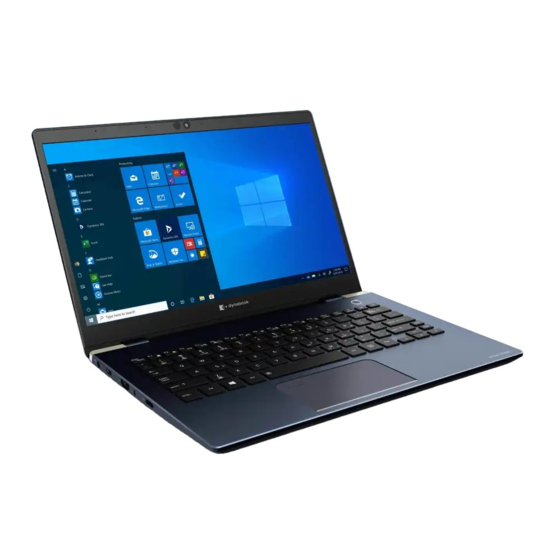

dynabook PORTEGE X30L-G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Portege X30L-G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for dynabook Portege X30L-G

Summary of Contents for dynabook Portege X30L-G

  • Page 1 User's Manual dynabook PORTEGE X30L-G...

  • Page 2: Table Of Contents

    Table of Contents Chapter 1 Legal, Regulatory, and Safety Copyright, Disclaimer and Trademarks ..........1-1 Regulatory Information ................. 1-2 Video Standard Notice ................ 1-10 OpenSSL Toolkit License Issues ............1-10 FreeType License Issues ..............1-12 ENERGY STAR® Program ..............1-16 Disposing of the computer and the computer's battery ....
  • Page 3 Specifications ..................7-1 AC Power Cord and Connectors ............7-2 Information for Wireless Devices ............7-3 Information about Intel® Authenticate ..........7-13 Accessibility ..................7-13 Ease of Access for Dynabook notebook ........... 7-14 Legal Footnotes ................... 7-17 Index User's Manual...

  • Page 4: Chapter 1 Legal, Regulatory, And Safety

    Copyright, Disclaimer and Trademarks Copyright © 2020 Dynabook Inc. All Rights Reserved. Under the copyright laws, this manual cannot be reproduced in any form without the prior written permission of Dynabook Inc. No patent liability is assumed, with respect to the use of the information contained herein.

  • Page 5: Regulatory Information

    Only peripherals complying with the FCC class B limits can be attached to this equipment. Operation with non-compliant peripherals or peripherals not recommended by Dynabook is likely to result in interference to radio and TV reception. Shielded cables must be used between the external devices and the computer’s Universal Serial Bus (USB 3.0) port, USB Type-C™...
  • Page 6 (USB 3.1 Gen1) port and HDMI™ out port. Changes or modifications made to this equipment, not expressly approved by Dynabook or parties authorized by Dynabook could void the user’s authority to operate the equipment. FCC conditions This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference.
  • Page 7 EMC (Electromagnetic Compatibility) standards. However, Dynabook cannot guarantee that this product still observes these EMC standards if options or cables not produced by Dynabook are connected or implemented. In this case the persons who have connected/implemented those options/cables have to provide assurance that the system (PC plus options/cables) still fulfils the required standards.
  • Page 8 Note that Canadian Department of Communications (DOC) regulations provide, that changes or modifications not expressly approved by Dynabook could void your authority to operate this equipment. This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
  • Page 9 Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
  • Page 10 Disposal of products The crossed out wheeled dust bin symbol indicates that products must be collected and disposed of separately from household waste.
  • Page 11 Evaluation, Authorization and Restriction of Chemicals), entered into force on 1 June 2007, with phased deadlines to 2018. Dynabook will meet all REACH requirements and is committed to provide our customers with information about the presence in our articles of substances included on the candidate list according to REACH regulation.
  • Page 12 Dynabook meets all requirements of Turkish regulation 28300 “Restriction of the use of certain hazardous substances in electrical and electronic equipment”.

  • Page 13: Video Standard Notice

    Video Standard Notice THIS PRODUCT IS LICENSED UNDER THE AVC, THE VC-1 AND MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (I) ENCODING VIDEO IN COMPLIANCE WITH THE ABOVE STANDARDS ("VIDEO") AND/OR (II) DECODING AVC, VC-1 AND MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NONCOMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE SUCH...
  • Page 14 Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written permission of the OpenSSL Project. Redistributions of any form whatsoever must retain the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit"...

  • Page 15: Freetype License Issues

    This can be in the form of a textual message at program startup or in documentation (online or textual) provided with the package. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.
  • Page 16 Copyright 1996-2002, 2006 by David Turner, Robert Wilhelm, and Werner Lemberg Introduction ============ The FreeType Project is distributed in several archive packages; some of them may contain, in addition to the FreeType font engine, various tools and contributions which rely on, or relate to, the FreeType Project. This license applies to all files found in such packages, and which do not fall under their own explicit license.
  • Page 17 authors (David Turner, Robert Wilhelm, and Werner Lemberg) as the `FreeType Project', be they named as alpha, beta or final release. `You' refers to the licensee, or person using the project, where `using' is a generic term including compiling the project's source code as well as linking it to form a `program' or `executable'.
  • Page 18 -------------- Neither the FreeType authors and contributors nor you shall use the name of the other for commercial, advertising, or promotional purposes without specific prior written permission. We suggest, but do not require, that you use one or more of the following phrases to refer to this software in your documentation or advertising materials: `FreeType Project', `FreeType Engine', `FreeType library', or `FreeType Distribution'.

  • Page 19: Energy Star® Program

    Dynabook is a partner in the ENERGY STAR Program and has designed this computer to meet the latest ENERGY STAR guidelines for energy efficiency. Your computer ships with the power management options preset to a...

  • Page 20: General Precautions

    To learn about Dynabook’s sustainability commitment, visit: http://emea.dynabook.com/generic/environmental-management/ General Precautions Your computers are designed to optimize safety, minimize strain and withstand the rigors of portability. However, certain precautions should be observed to further reduce the risk of personal injury or damage to the computer.
  • Page 21 Liquids and corrosive chemicals. Stress injury Carefully read the Instruction Manual for Safety and Comfort. It contains information on the prevention of stress injuries to your hands and wrists that can be caused by extensive keyboard use. It also includes information on work space design, posture, and lighting that can help reduce physical stress.
  • Page 22 Never spray cleaner directly onto the computer or let liquid run into any part of it. Never use harsh or caustic chemical products to clean the computer. Moving the computer While the computer is designed for flexible day-to-day usage, you should exercise a few simple precautions when moving it in order to help ensure trouble-free operation.

  • Page 23: Safety Icons

    Safety Icons Safety icons are used in this manual to bring important information to your attention. Each type of message is identified as follows. Indicates a potentially hazardous situation, which could result in death or serious injury, if you do not follow instructions. A caution informs you that improper use of equipment or failure to follow instructions might cause data loss, equipment damage, or might result in minor or moderate injury.

  • Page 24: Chapter 2 Getting Started

    This chapter provides an equipment checklist, and basic information to start using your computer. If you use an operating system that was not pre-installed by Dynabook, some of the features described in this manual might not function properly. Equipment checklist Carefully unpack your computer, taking care to save the box and packaging materials for future use.

  • Page 25: Using Your Computer For The First Time

    Right-click Click the right Touch Pad control button once. Right-click the mouse once. Press and hold on the touch screen (only for touch screen models). Double-click Tap the Touch Pad or click the left Touch Pad control button twice. Left-click the mouse twice. Tap the touch screen twice (only for touch screen models).
  • Page 26 Always use the AC adaptor that was included with your computer, or use AC adaptors specified by Dynabook to avoid any risk of fire or other damage to the computer. Use of an incompatible AC adaptor might cause fire or damage to the computer possibly resulting in serious injury.
  • Page 27 DC IN 19V jack connection type Connect the power cord to the AC adaptor. Figure 2-1 Connecting the power cord to the AC adaptor (2-pin plug) Figure 2-2 Connecting the power cord to the AC adaptor (3-pin plug) Either a 2-pin or 3-pin adaptor/cord is included with the computer depending on the model.
  • Page 28 Figure 2-5 Connecting the power cord to the AC adaptor (3-pin plug) Product appearance depends on the model you purchased. Either a 2-pin or 3-pin adaptor/cord is included with the computer depending on the model. Plug the power cord into a live wall outlet. Connect the DC output plug of the AC adaptor to the USB Type-C™...
  • Page 29 Figure 2-7 Opening the display panel 1. Display panel Open and close the display panel with reasonable care. Opening it vigorously or slamming it shut might damage the computer. Be careful not to open the display panel too far as this might put stress on the display panel’s hinges and cause damage.

  • Page 30: Getting To Know Windows

    Volume cannot be adjusted during Windows Setup. Do not touch the display screen while turning on the computer. Open the display panel. Press the power button. Figure 2-8 Turning on the power 1. Power button Initial setup The Windows Startup Screen is the first screen displayed when you turn on the power.
  • Page 31 You can pin your favorite apps to the Start menu as tiles in grid-like pattern, and also group them. Tiles show you dynamic information from apps without having to open them. Windows taskbar By default, the bottom of the desktop is Windows taskbar. You can see all of your currently running apps on the Windows taskbar.

  • Page 32: Turning Off The Power

    Windows Store Although many apps are pre-installed in your computer, you can also download many others from the Windows Store. You can search for and browse thousands of apps, all grouped into easy- to-find categories there. Windows Hello Windows Hello is a more personal and secure way to sign in to your Windows system, apps, and services using fingerprint, face recognition or a PIN.
  • Page 33 Make sure all disk/disc activity has stopped before removing the disk/ disc. If you turn off the power while a disk (disc) is being accessed, you might lose data or damage the disk. Never turn off the power while an application is running. Failure to do so can cause data loss.
  • Page 34 Note that keyboard keys can only be used if the Wake-up on Keyboard option is enabled within the dynabook Settings. If the computer enters Sleep Mode while a network application is active, the application might not be restored when the computer is next turned on and the system returns from Sleep Mode.
  • Page 35 If you are operating the computer on battery power, you can lengthen the overall operating time by turning it off into Hibernation Mode. Sleep Mode consumes more power while the computer is off. Sleep Mode limitations Sleep Mode will not function under the following conditions: Power is turned back on immediately after shutting down.

  • Page 36: System Recovery

    Restoring the pre-installed software from your created Recovery Media Restoring the pre-installed software from the Recovery Partition If you choose dynabook Maintenance Utility to erase the internal storage drive, all data including the operating system and recovery partition will be User's Manual...
  • Page 37 In that case, you cannot create recovery media or restore the pre- installed software from the recovery partition. Make sure that you have already created recovery media before you start dynabook Maintenance Utility. This recovery media can be used to restore your system after you have erased your internal storage drive.
  • Page 38 Follow the on-screen instructions to finish creating the Recovery Media. dynabook Recovery Wizard option in dynabook Maintenance Utility will not exist if you restore the computer from the recovery media you created by recovery drive creating option in Windows system.
  • Page 39 (Power) and then select Restart. Hold down 0 (zero) key and then release this key just after the computer is power on. Select Troubleshoot -> dynabook Maintenance Utility -> dynabook Recovery Wizard. Follow the on-screen instructions to finish the recovery.

  • Page 40: Chapter 3 The Grand Tour

    Chapter 3 The Grand Tour This chapter identifies the various components of the computer. It is recommended that you become familiar with each before you operate the computer. Legal Footnote (Non-applicable Icons) For more information regarding Non-applicable Icons, refer to the Legal Footnotes section.
  • Page 41 Note that you must use the AC adaptor that was included with your computer, or use AC adaptors specified by Dynabook. Use of an incompatible AC adaptor might cause fire or damage to the computer possibly resulting in serious injury.

  • Page 42: Right Side

    Headphone/ A 3.5 mm mini headphone/microphone jack Microphone jack enables connection of a monaural microphone, stereo headphones, or a headset. Memory media slot This slot lets you insert a micro SD™/SDHC™/ SDXC™ memory card. Refer to the Memory media section for more information. Keep foreign metal objects, such as screws, staples, and paper clips, out of the Memory media slot.

  • Page 43: Back

    Keep foreign metal objects, such as screws, staples, and paper clips, out of the USB port. Foreign metal objects can create a short circuit, which can cause damage and fire, possibly resulting in serious injury. LAN jack This jack lets you connect to a LAN. The adaptor has built-in support for Ethernet LAN (10 megabits per second, 10BASE-T), Fast Ethernet LAN (100 megabits per second, 100BASE-TX) or...

  • Page 44: Underside

    Underside The following figure shows the underside of the computer. Ensure that the display is closed before the computer is turned over to avoid causing any damage. Figure 3-5 The underside of the computer 1. Cooling vents 2. Stereo speakers Cooling vents The cooling vents help the processor to avoid overheating.
  • Page 45 Figure 3-6 The front of the computer with the display panel open 1. Infrared LED* 7. Wireless communication antennas (not shown) 2. Web Camera* 8. Power button 3. Web Camera LED* 9. Keyboard 4. Microphones* 10. Fingerprint Sensor* 5. Display screen 11.
  • Page 46 Do not point the web camera directly at the sun. Do not touch or press strongly on the web camera lens and infrared LED. Failure to do so might reduce image quality, possibly resulting in recognizing faces incorrectly. Use an eyeglass cleaner (cleaner cloth) or other soft cloth to clean the lens and the LED if it becomes dirty.

  • Page 47: Internal Hardware Components

    The actual specifications might vary depending on the model you purchased. The processor type varies depending on model. To check which type of processor is included in your model, click Start -> dynabook PC Information. Legal Footnote (CPU) User's Manual...

  • Page 48: Power Condition Descriptions

    For more information regarding CPU, refer to the Legal Footnotes section. Internal Storage Drive The capacity of the internal storage drive varies depending on the model. Note that part of the internal storage drive overall capacity is reserved as administration space. Your computer is equipped with a "Solid-State Drive (SSD)".
  • Page 49 No light Under any other conditions, the indicator does not light. If the battery pack becomes too hot while it is being charged, the charge stops and the DC IN/Battery indicator goes out. When the temperature of the battery pack falls to a normal range, charging will resume. This process occurs regardless of whether the computer's power is on or off.

  • Page 50: Chapter 4 Operating Basics

    Chapter 4 Operating Basics This chapter describes the basic operations of your computer, and highlights the precautions that must be taken when using it. Using the Touch Screen Some models are equipped with a touch screen. You can use your finger to manipulate icons, buttons, menu items, the on- screen keyboard, and other items on the touch screen.

  • Page 51: Using The Touch Pad

    Swipe Quickly move your finger in from the edge of the screen, without pausing when you first touch it. Swipe from the left edge: views all your open apps in task view. Swipe from the right edge: opens the Action Center.

  • Page 52: The Keyboard

    Two-Finger Scroll Place two fingers down and slide them vertically or horizontally from anywhere on the Touch Pad. This allows you to operate the scroll bars of a window. Three-Finger Tap Tap once on the Touch Pad with three fingers together to launch Windows Search.
  • Page 53 Never remove the key caps on your keyboard. Failure to do so might damage the parts under the key caps. Keyboard indicator The following figure shows the position of the CAPS LOCK indicator. When the CAPS LOCK indicator glows, the keyboard produces capitals when any letter is typed.
  • Page 54 FN + Z ( Toggles the mode of the keyboard backlight between Timer, On, and Off. To set up the brightness, click Start -> dynabook Settings. Click Keyboard tab, and select a level under Keyboard Backlight Brightness Control. To set up the timer, launch the BIOS setup utility, select Power Management ->...

  • Page 55: Using The Fingerprint Sensor

    Some functions show the toast notification at the edges of the screen. Those toast notifications are enabled by default. You can disable them in dynabook Settings. To access it, click Start -> dynabook Settings -> Keyboard. Windows special keys The keyboard provides two keys that have special functions in Windows, ®...
  • Page 56 Figure 4-2 Using the Fingerprint Sensor 1. Fingerprint sensor Fingerprint cannot be used in models that do not have a fingerprint function. Total fingerprints which can be registered are 10 pcs per account. Points to note about the Fingerprint Sensor Be aware of the following considerations when using the fingerprint sensor.

  • Page 57: Battery

    If the RTC lasting time completely runs out, the system will lose this information and the real-time clock and calendar will stop working. You can change the Real-Time Clock settings in the dynabook Setup Utility. Refer to Real-Time Clock for further information.
  • Page 58 Care and use of the battery pack This section provides the important safety precautions in order to handle your battery pack properly. Refer to the enclosed Instruction Manual for Safety and Comfort for detailed precautions and handling instructions. Charge the battery pack only in an ambient temperature from 5 through 35 degrees Celsius.
  • Page 59 The battery might not be charged depending on how the computer is being used, and the charge of battery decreases and battery might not be fully charged sometimes. If AC adaptor is connected via USB Type-C™ adapter, battery charging time might become longer. Charging notice The battery might not begin charging immediately under the following conditions:...
  • Page 60 With repeated discharges and recharges, the battery capacity will gradually decrease. In view of this, it is noted that an often used, older battery will not operate for as long as a new battery even when both are fully charged. Maximizing battery operating time The usefulness of a battery depends on how long it can supply power on a single charge, while how long the charge lasts in a battery depends on:...

  • Page 61: Memory Media

    Turn off the computer's power. Disconnect the AC adaptor and turn on the computer's power. If it does not turn on then go to Step 4. Operate the computer on battery power for five minutes. If you find that the battery pack has at least five minutes of operating time, continue operating until the battery pack is fully discharged.
  • Page 62 Memory media format New media cards are formatted according to specific standards. If you wish to reformat a media card, be sure to do so with a device that uses media cards. Formatting a memory media card Memory media cards are sold already formatted in conformity to specific standards.
  • Page 63 Press the memory media gently until it clicks into place. Figure 4-4 Inserting memory media 1. Memory media slot 2. Memory media Make sure that the memory media is oriented properly before you insert it. If you insert the media in wrong direction, you might not be able to remove it.

  • Page 64: Hdmi™ Out Port

    HDMI™ out port HDMI™ (High-Definition Multimedia Interface™) out port digitally transfers both video and audio data without reducing the quality. HDMI™-compatible external display devices including televisions can be connected via the HDMI™ out port. As the port operation of all external monitors have not been confirmed, some display devices might not function properly.

  • Page 65: Usb Type-C™ Adapters

    Depending on the model you purchased, the following USB Type-C™ adapter might be provided. Always use the USB Type-C™ adapter that is included with your computer or dynabook accessories. Disconnect any devices and cables from the USB Type-C™ adapter when connecting/disconnecting the AC adaptor or the USB Type-C™...
  • Page 66 The USB Type-C™ port (Power Delivery Charging) on this adapter is used for connecting AC adaptor only. USB data transmission is not supported by this port. USB Type-C™ port The USB Type-C™ adapter provides you with a USB Type-C™ port which enables you to connect the AC adaptor when you want to charge the battery or operate from AC power.

  • Page 67: Lan

    Figure 4-7 Connecting the RGB cable to the RGB monitor port 1. USB Type-C™ port 3. RGB monitor port 2. USB Type-C™ adapter 4. RGB cable When displaying desktop on an external RGB monitor, desktop is sometimes displayed on the center of the monitor with black bars around desktop (with small size).

  • Page 68: Wireless Display

    If you are using Gigabit Ethernet LAN (1000 megabits per second, 1000BASE-T), be sure to connect with a CAT5e cable or higher. You cannot use a CAT3 or CAT5 cable. If you are using Fast Ethernet LAN (100 megabits per second, 100BASETX), be sure to connect with a CAT5 cable or higher.

  • Page 69: Security Lock

    documents, streamed/local media contents or other online contents can be shared wirelessly with others. To use wireless display, either one of the following devices is required: A compatible external display with built-in support for wireless display. An external display with HDMI™ port and a wireless display adaptor. The wireless display adaptor is a device that connects to the external ®...

  • Page 70: Optional Accessories

    USB Type-C™ You can purchase different types of USB Type- Adapters C™ adapters as accessories from Dynabook. Please contact your reseller or dynabook dealer regarding which type is available in your region. dynabook USB-C™ dynabook USB-C™ Dock is the docking station...
  • Page 71 If the built-in microphones are not equipped, you can connect an external microphone instead. Click Start -> Windows System -> Control Panel -> Hardware and Sound -> Sound -> Recording. Select Microphone Array or External Microphone, and click Properties. On the Levels tab, move the Microphone Array or External Microphone slider to increase or decrease the microphone volume level.
  • Page 72 Microphone Array/External Microphone This tab allows you to set Main Volume, Microphone Effects and Default Format. If the built-in microphones are not equipped, you can connect an external microphone instead. Device advanced settings This tab allows you to choose the type of headphone or microphone and select devices when an external device is plugged in.
  • Page 73 If you are running some applications (for example a 3D application or video playback), you might see some disturbance, flickering, or frame dropping on your screen. If that occurs, adjust the resolution of display, lowering it until the screen is displayed properly.

  • Page 74: Chapter 5 Utilities And Advanced Usage

    You might not have all the software listed in this section depending on the model you purchased. dynabook Settings dynabook Settings is the configuration management tool available through the Windows operating system. To run dynabook Settings, click Start -> dynabook Settings.
  • Page 75 OFF, which includes Sleep Mode, Hibernation Mode, and shutdown state. To set USB Sleep and Charge feature, click Start -> dynabook Settings - > USB Charge. Move the slider to enable or disable the Sleep and Charge function.
  • Page 76 When the Sleep and Charge function is enabled, USB bus power (DC5V) is supplied to compatible ports even when the power of the computer is turned OFF. USB bus power (DC5V) is similarly supplied to the external devices which are connected to the compatible ports. However, some external devices cannot be charged solely by supplying USB bus power (DC5V).
  • Page 77 Charge Mode" is enabled, your computer can supply USB bus power (DC5V, 1.5A) to the compatible ports while the computer is turned on. To set System ON CDP Charge Mode, click Start -> dynabook Settings - > USB Charge. Enabled Rapid USB battery charge at maximum 1.5A...
  • Page 78 Passwords set by the System Password function are different from the Windows password. User Password To set a user password, click Start -> dynabook Settings -> System Password. User authentication may be required to validate user rights when using System Password to delete or change passwords.
  • Page 79 If you set a Supervisor Password, some functions might be restricted when a user logs on with the User Password. To set a Supervisor Password: Click Start -> dynabook Settings -> System Password. Then click the down arrow next to Advanced options to show the Supervisor Password settings.
  • Page 80 Options—Allows you to set options for sending data logs. dynabook Setup Utility dynabook Setup Utility is a BIOS setup utility that provides you a menu- based user interface so that you can easily view and change BIOS settings. To enter the dynabook Setup Utility, do the following: Save your work.

  • Page 81: Special Features

    When you choose LCD + External Display under Power On Display option in dynabook Setup Utility while two or more external display devices are connected to your computer, the operating system will select the internal LCD and one of the external display devices to be used when the computer is started.
  • Page 82 System automatic This feature automatically shuts down the system Sleep/Hibernation into either Sleep Mode or Hibernation Mode when there is no input or hardware access for a Mode specified time. This can be specified in the Power Options. Power on password Two levels of password security, supervisor and user, are available to prevent unauthorized access to your computer.
  • Page 83 USB Wakeup function This function restores the computer from Sleep Mode depending on the external devices connected to the USB ports. For example, if a mouse or USB keyboard is connected to a USB port, clicking the mouse button or pressing the keyboard will wakeup the computer.

  • Page 84: Troubleshooting

    Chapter 6 Troubleshooting Dynabook has designed this computer for durability, however, should problems occur you are able to use the procedures detailed in this chapter to help determine the cause. You should become familiar with this chapter as knowing what might go wrong can help prevent problems from occurring in the first place.
  • Page 85 Check all cables to ensure that they are correctly and firmly attached to the computer - loose cables can cause signal errors. Inspect all connecting cables for loose wires and all connectors for loose pins. Check that your disc media is correctly loaded Always try to make detailed notes of your observations and keep them in a permanent error log - this helps you to describe your problems to Technical Support.
  • Page 86 Hardware If you cannot find a software problem, you should then check the setup and configuration of your hardware. First run through the items in the preliminary checklist as described previously then, if you still cannot correct the problem, try to identify the source.

  • Page 87: Hardware And System Checklist

    By holding down one of the following keys during startup, your computer can load the following advanced options. Advanced option dynabook Setup Utility Boot Menu 0 (zero) Recovery options If your computer starts to load the Operating System instead of desired advanced options, do the following: Click Start ->...
  • Page 88 Overheating power down If the processor's temperature reaches an unacceptably high level with either setting, the computer automatically shuts down to prevent any damage. In this instance, all unsaved data in memory is lost. Problem Procedure Computer shuts Leave the computer off until it reaches room down automatically.
  • Page 89 The lasting time of the Real-Time Clock (RTC) has and system date/ run out. You must set the date and time in the time are lost. dynabook Setup Utility by using the following steps: Launch the dynabook Setup Utility. Refer to the...
  • Page 90 Real-Time Clock (RTC) information might be cleared if the power is turned on by pressing the power button. You should set the system date/time manually in dynabook Setup Utility. If it still does not operate properly, you should contact your reseller or dealer.
  • Page 91 - if so remove it and try to start storage the computer again. If this has no effect, check the Boot Priority Options setting under Boot within the dynabook Setup Utility. Slow performance The files on the internal storage drive might be fragmented.
  • Page 92 Problem Procedure You cannot read a Check to ensure that the required file is actually on file the memory media card that is inserted into the computer. If you are still unable to resolve the problem, contact Technical Support. Pointing device If you are using a USB mouse, you should also refer to both the mouse section and the documentation supplied with your mouse.
  • Page 93 USB mouse Problem Procedure Mouse pointer does In this instance, the system might be busy. Try not respond to moving the mouse again after waiting a short mouse operation while. Remove the mouse from the computer and then reconnect it to a free USB port in order to ensure that it is firmly attached.
  • Page 94 Restart. Hold down the F2 key and then release this key just after the computer is power on to show the dynabook Setup Utility. Select Security -> BIOS Password -> Supervisor, and then register the Supervisor Password. (If the User Password has been registered, clear it first.)
  • Page 95 Sleep and Charge Enable the Sleep and Charge function under function. USB Charge within the dynabook Settings. When there is a current overflow of the external device connected to the compatible port, USB bus power (DC5V) supply might be stopped for safety reasons.
  • Page 96 Problem Procedure The "USB Wakeup When "System ON CDP Charge Mode" or "USB function" does not Sleep and Charge function" is enabled, the "USB work. WakeUp" function does not work for ports that support the Sleep and Charge function. In that case, use a USB port that does not have the USB Sleep and Charge function or change to disable both "System ON CDP Charge Mode"...
  • Page 97 Problem Procedure Monitor does not After confirming that the monitor's power switch is turn on on, check the connections to make sure that the power cord/adaptor is firmly connected to the monitor and to a working power outlet. No display Try adjusting the contrast and brightness controls on the external monitor.

  • Page 98: Technical Support

    Problem Procedure Cannot access LAN Check for a firm cable connection between the LAN jack and the LAN hub. Wake-up on LAN Make sure the AC adaptor is connected. The does not work Wake-up on LAN function consumes power even when the system is off.
  • Page 99 - they are your best resource for current information and support. Technical support If you are still unable to solve the problem and suspect that it is hardware- related, read the enclosed warranty booklet or visit the technical support website http://emea.dynabook.com/support-country-selector User's Manual 6-16...

  • Page 100: Appendix Specifications

    Chapter 7 Appendix Specifications This section summarizes the technical specifications of the computer. Physical Dimensions The following physical dimensions do not include parts that extend beyond the main body. The physical dimensions vary depending on the model you purchased. Size Approximately 308.8 (w) x 211.6 (d) x 17.9 (h) millimeters (not including parts that extend beyond the main body) Environmental Requirements...

  • Page 101: Ac Power Cord And Connectors

    AC Power Cord and Connectors The AC input plug of the power cord must be compatible with the various international AC power outlets and the cord must meet the standards for the country/region in which it is used. All cords must meet the following specifications: Wire size: Minimum 0.75 mm...

  • Page 102: Information For Wireless Devices

    United Kingdom, South Africa, Middle-East UL approved BS approved Australia Europe, Africa, South Africa, Middle-East AS approved Approved by the appropriate agency Canada China CSA approved CCC approved State of Israel Africa Approved by the appropriate SII approved agency Switzerland Italy Approved by the appropriate Approved by the appropriate...
  • Page 103 Because wireless products operate within the guidelines found in radio frequency safety standards and recommendations, Dynabook believes wireless products are safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.
  • Page 104 If this occurs, the outsider might illegally access your system, eavesdrop, or cause the loss or destruction of stored data. Dynabook is not liable for the loss of data due to eavesdropping or illegal access through the wireless LAN and the damage thereof. Card Specifications Compatibility IEEE 802.11 Standard for Wireless LANs...
  • Page 105 Country/region where the product was purchased Type of product Wireless communication is often subject to local radio regulations. Although Wireless LAN wireless networking products have been designed for operation in the license-free 2.4 GHz and 5 GHz band, local radio regulations might impose a number of limitations to the use of wireless communication equipment.
  • Page 106 Worldwide operation ® The Bluetooth radio transmitter and receiver operate in the 2.4 GHz band, which is license-free and compatible with radio systems in most countries in the world. Radio links You can easily establish links between two or more devices, with these links being maintained even if the devices are not within a line-of-sight of each other.
  • Page 107 Russian Limited Using SRD (Short Range Device) with Federation: implementation FHSS (Frequency-Hopping Spread Spectrum) modulation. Maximum 2.5mW (4dBm) EIRP (Equivalent Isotropically Radiated Power) is permitted to use. Maximum 100mW (20dBm) EIRP is permitted to use with the following conditions: Permitted to use SRD for outdoor applications without restriction on installation height only for purposes of gathering telemetry...
  • Page 108 Using SRD with DSSS (Direct Sequence Spread Spectrum) and other than FHSS wideband modulation. Maximum EIRP density is 2mW/ MHz. Maximum100mW (20dBm) EIRP is permitted to use. Maximum EIRP density is 20mW/ MHz. Maximum 100mW (20dBm) EIRP is permitted to use with the following condition: It is permitted to use SRD for outdoor applications only for...
  • Page 109 Maximum Power Output (2400 - 2483.5 MHz) IEEE802.11 b/ Maximum 100mW (20dBm) EIRP g/n/ax mode / Bluetooth (2400 - 2483.5 MHz) BLE Maximum 10mW (10dBm) EIRP (5150 - 5725 MHz) IEEE802.11 a/n/ Maximum 200mW (23dBm) EIRP ac/ax mode The low band 5.15 - 5.35 GHz is for indoor use only.
  • Page 110 USA-Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 111 Using this equipment in Japan In Japan, the frequency bandwidth of 2,400MHz to 2,483.5MHz for second generation low-power data communication systems such as this equipment overlaps that of mobile object identification systems (premises radio station and specified low-power radio station). 1.

  • Page 112: Information About Intel® Authenticate

    Accessibility options provided by Windows 10 operating system are accessible through Ease of Access features of Windows settings. It allows you customise your Dynabook notebook the way you want to use it. To see the available features in one of the following ways:...

  • Page 113: Ease Of Access For Dynabook Notebook

    Settings, then press Enter. Then select Ease of Access from the Windows Settings screen. Ease of Access for Dynabook notebook Ease of access options provides those with learning, vision, hearing, mobility and other impairments with the following features categories.
  • Page 114 Closed captions: Lets you read the word spoken in the audio portion of a video, TV show or Movie that supports Closed Caption technology. You can select the settings you want and see how they appear in Preview. Click here for more information about making your device easier to hear or use with these visual alternatives to sound.
  • Page 115 Sound Systems and Video mode section for more information. Utilities and Advanced Usage: Your computer comes with pre- installed utilities such as dynabook Settings, eco Utility USB Charging, USB Sleep and Charge, System ON CDP Charge, System Password, User Password, Supervisor Password, Pre-Boot Authentication, dynabook Service Station, dynabook Setup Utility, and dynabook Maintenance Utility.

  • Page 116: Legal Footnotes

    Hibernation Mode, Sleep Mode, Hibernation Mode, USB Wakeup function, Wake-up on Wireless LAN, and Heat dispersal. Refer to Special features section for more information. Troubleshooting: Dynabook has designed this computer for durability, however, should problems occur you are able to use the procedures detailed in the Troubleshooting section to help determine the cause.
  • Page 117 Published battery life numbers are achieved on select models and configurations tested by Dynabook at the time of publication. Recharge time varies depending on usage. Battery might not charge while computer is consuming full power.
  • Page 118 such as Microsoft Operating System and/or pre-installed software applications, or media content. Actual formatted capacity might vary. Over a period of time, and depending on the usage of the computer, the brightness of the LCD screen will deteriorate. This is an intrinsic characteristic of LCD technology.

  • Page 119: Index

    Index External monitor problems 6-14 AC adaptor additional 4-21 connecting 2-3 DC IN 19V jack 3-2 Hard disk drive automatic power off 5-8 Battery extending life 4-11 Keyboard monitoring capacity 4-10 function keys 4-4 real time clock 4-8 Function keys F1...F12 4-4 save mode 5-9 problems 6-7 Windows special keys 4-6...
  • Page 120 Moving the computer 1-19 Recovery Media 2-15 Password SD/SDHC/SDXC Card power on 5-9 formatting 4-13 Starting the computer by password 5-6 Security lock 4-20 Supervisor 5-6 user 5-5 Sleep Mode setting 2-10 System automatic 5-9 Power Hibernation Mode 2-12 panel on/off 5-9 Sound system Shut Down mode 2-9 problems 6-13...
