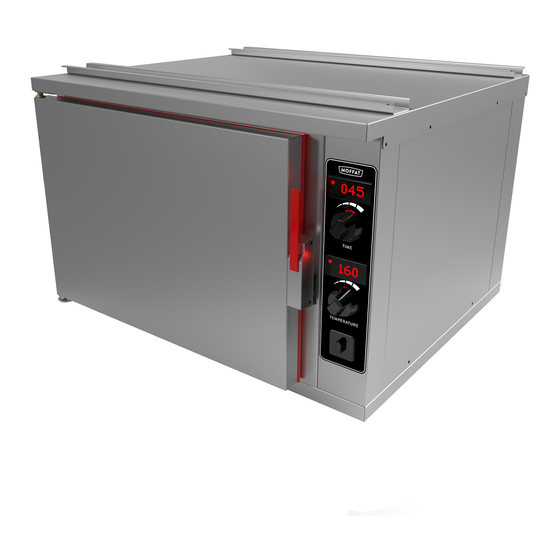

- Page 1 CR Oven Models: CR5L, CR8M,CR10L,CR20L Operating & Service Manual Manual 042 / Issue 001 / September 2021...
- Page 2 To ensure the best results from this unit please take the time to read and follow all safety, installation and maintenance guidelines carefully before proceeding to install. Keep this manual in a safe place for future consultation. These appliances are marked in compliance with the relevant Low Voltage &...
-
Page 3: Table Of Contents
Contents page Electrical Specification General Installation Operation Setting Time setting Temperature Application 8 / 9 Cleaning... -
Page 4: Electrical Specification
Yellow & Green (Striped) A mains cable, type H07RN-F, conforming to code designation 60245 IEC 57, is supplied. Rating (kw) Supply Voltage Amps per phase CR5L CR8M CR10L 2 x 13 or 16 1PH option 16 3PH or 32 1PH... -
Page 5: General Installation
Move into position and adjust feet setting the oven level. • The oven can be place either on a table top or on Moffat's support stands • Table tops must be strog enought to hold the weight of the oven •... -
Page 6: Operation
3: Operation The oven must be connected to the correct power supply, with the correct rating for the appliance. This information should be found on the data badge on the oven. If in doubt, speak to a qualified electrician. Do not attempt connection to any other power supply which differs from the data badge. -
Page 7: Setting Temperature
3: Operation Countdown Time Display Time Setting Control Knob Temperature Display Temperature Setting Control Knob Power On / Off Isolator... -
Page 8: Application
4: Application Cook Frozen Oven is normally pre-heated for approximately 20 minutes. Load the food, evenly spaced through the oven to give a good airflow throughout the oven. Set the temperature to 190°C. The timer is set to 80 minutes. The temperature and time required to cook the food all depend on the quantity and density of the food. - Page 9 4: Application Bake Off Application Oven is normally pre-heated for approximately 20 minutes. Load oven with pies, sausage rolls etc. Usually on an oven tray. Temperature is set at 200°C. Timer is set between 15-30 minutes. These settings may need to be varied as required by the food.
-
Page 10: Cleaning
5: Cleaning Before attempting to clean the unit, please ensure that the Unit is isolated from the electric supply and allowed to cool down, with all food plates and other Dishes removed from the unit. Do not use a water jet or pressure spray to clean this appliance. Disconnect trolley from mains and wait until appliance has cooled. - Page 11 6: Notes...
- Page 12 Thank you for choosing E&R Moffat! E&R Moffat Ltd. www.ermoffat.co.uk Bonnybridge +44 (0) 1324 812272 FK4 2BS sales@ermoffat.co.uk Scotland...
