Summary of Contents for Moffat MSF 611

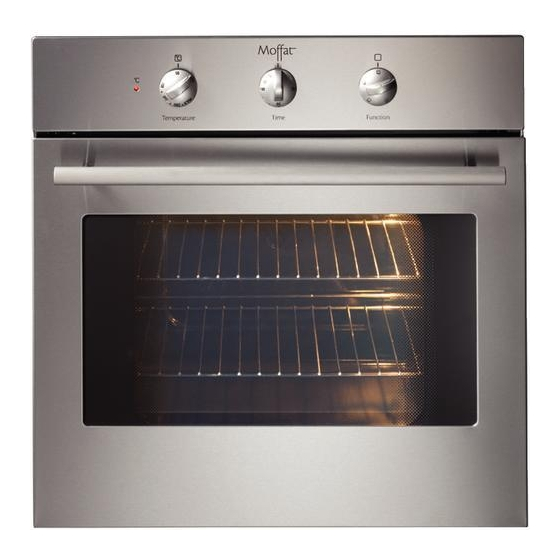

- Page 1 Instruction Booklet Electric Oven MSF 611...
-
Page 2: Important Safety Information
Important Safety Information You MUST read these warnings carefully before installing or using the oven. If you need assistance, contact our Customer Care Department on 08705 950950 Installation • This oven must be installed by qualified personnel to the relevant British Standards. -
Page 3: Table Of Contents
For the User Important Safety Information Description of the Oven Before the First Use Controls Using the Oven Hints and tips for using the Oven Cleaning the Oven Something not Working Service and Spare Parts Guarantee Conditions European Guarantee Guide to Use the instructions... -
Page 4: Description Of The Oven
2. Set the thermostat control knob to MAX. 3. Open a window for ventilation. 4. Allow the oven to run empty for approximately 45 minutes. This procedure should be repeated with the grill function for approximately 5-10 minutes. -
Page 5: Controls
The minute minder will not affect in any way the oven operation, if it is in use. bake The Safety Thermostat This oven is provided with a safety thermostat. -
Page 6: Using The Oven
Always cook with the oven door closed. Stand clear when opening the drop down oven door. Do not allow it to fall open - support the door using the door handle, until it is fully open. The oven has four shelf levels, and is supplied with two shelves. -
Page 7: Hints And Tips For Using The Oven
Fan Oven cooking The food is cooked by means of preheated air force blown evenly round the inside of the oven by a fan set on the rear wall of the oven itself. Heat thus reaches all parts of the oven evenly... -
Page 8: Cooking Times
To prevent the formation of too much smoke in the oven during roasting, it is a good idea to pour a little water into the dripping pan and—to prevent steam—to add a little bit more during cooking if the original amount dries up too much. -
Page 9: Cooking Chart
Cooking Chart The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperatures to suit individual preferences and requirements. Cooking times in the tables do not include pre-heating. A short oven pre-heating (about 10 minutes) will then be necessary before any cooking. -
Page 10: Grilling Chart
Grilling Chart Cooking time depends on the thickness of the meat and not on its weight. The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperatures to suit individual preferences and requirements. -
Page 11: Cleaning The Oven
Never use steam or steam machines to clean the appliance. The oven should be kept clean at all times. A build-up of fats or other foodstuffs could result in a fire, especially in the grill pan. - Page 12 3.unlock and turn the small levers located on the two hinges (Fig. B); 4.handle the door by its left- and right-hand sides, then slowly turn it towards the oven until it is half- closed (Fig. C); 5.gently pull the oven door off its site (Fig. C);...
-
Page 13: Replacing The Oven Light
Replacing The Oven Light Disconnect the appliance. If the oven bulb needs replacing, it must comply with the following specifications: Electric power: 15 W/25 W; Electric rate: 230 V (50 Hz); Resistant to temperatures of 300°C; Connection type: E14. These bulbs are available from your local Service Force Centre. -
Page 14: Something Not Working
ON. # Select a temperature with the thermostat control knob. # Select a function with the oven function control knob. # Select a function with the oven function control knob. -
Page 15: Technical Data
25 W 25 W 2,050 W 335 mm 405 mm 400 mm 56 litres 560 ÷ 570 mm 550 mm Moffat MSF 611 This appliance complies with the following E.E.C. Directives: • 73/23 - 90/683 0,78 kW/h (Low Voltage Directives) 56,0 •... -
Page 16: Electrical Connection
Electrical Connection The oven is designed to be connected to 230 V (50 Hz) electricity supply. The oven has an easily accessible terminal block which is marked as follows: Letter L Live terminal Letter N Neutral terminal or E Earth terminal... -
Page 17: Securing The Oven To The Cabinet
Please ensure that when the oven is installed it is easily accessible for the engineer in the event of a breakdown. The surround or cabinet into which the oven will be built must comply with these specifications: the dimensions must be as shown in the relevant diagrams;... -
Page 18: Service And Spare Parts
Service Force Centres are detailed on the following pages. CUSTOMER CARE For general enquiries concerning your Moffat appliance and for further information on Moffat products, contact our Customer Care Department by letter or telephone as follows: Customer Care Department... -
Page 19: European Guarantee
European Guarantee This appliance is guaranteed by Electrolux in each of the countries listed below for the period specified in the appliance guarantee or otherwise by law. If you move from one of these countries to another of the countries listed below the appliance guarantee will move with you subject to the following qualifications: ·... - Page 20 35692-6801 05/06 R. 0 Subject to change without notice...
