DL-HD70 Owners Manual
Rev 181228
11675 Ridgeline Drive
Phone: 719-260-0061
Colorado Springs, CO
Toll-Free: 800-530-8998
80921
Fax: 719-260-0075

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DigitaLinx DL-HD70 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LIBERTY AV SOLUTIONS DigitaLinx DL-HD70

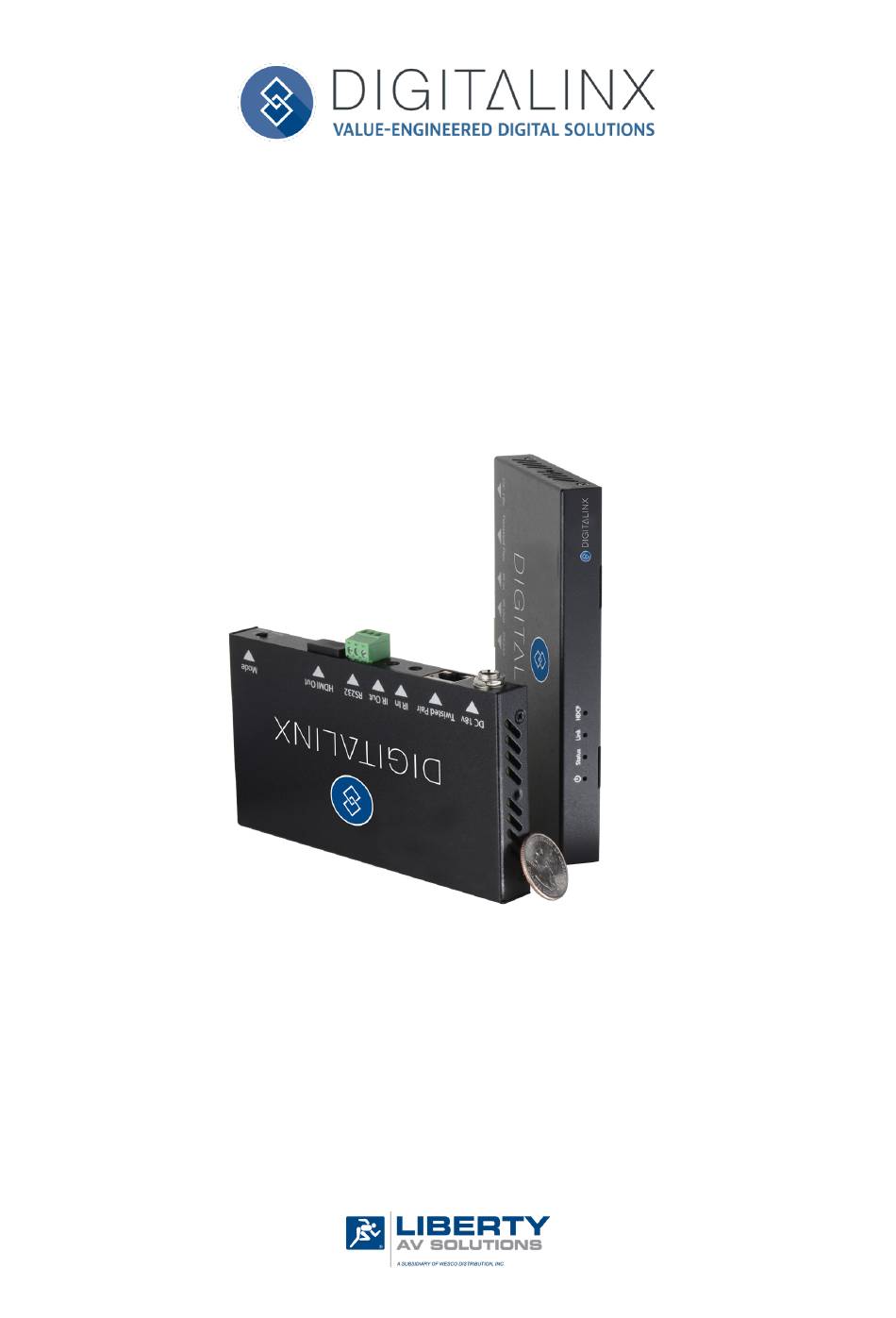

  • Page 1 DL-HD70 Owners Manual Rev 181228 11675 Ridgeline Drive Phone: 719-260-0061 Colorado Springs, CO Toll-Free: 800-530-8998 80921 Fax: 719-260-0075...
  • Page 2 DL-HD70 Owners Manual...
  • Page 3 DL-HD70 Owners Manual Important Safety Instructions » Please completely read and verify you understand all instructions in this manual before operating this equipment. » Keep these instructions in a safe, accessible place for future reference. » Heed all warnings. » Follow all instructions. »...
  • Page 4: Table Of Contents

    DL-HD70 Owners Manual Table of Contents Product Overview ��������������������������������������������������������������������������������������������������������������������������������������� Package Contents ��������������������������������������������������������������������������������������������������������������������������������������� Front and Rear Panels ��������������������������������������������������������������������������������������������������������������������������������� Transmitter View ������������������������������������������������������������������������������������������������������������������������������������������� Receiver View ������������������������������������������������������������������������������������������������������������������������������������������������ Installation Instructions ������������������������������������������������������������������������������������������������������������������������������ Quick Start ���������������������������������������������������������������������������������������������������������������������������������������������������� Connecting a Video Source ��������������������������������������������������������������������������������������������������������������������������� HDMI Input (Transmitter) ........................Connecting a Display ������������������������������������������������������������������������������������������������������������������������������������� HDMI Output (Receiver) .........................
  • Page 5: Product Overview

    DL-HD70 Owners Manual Product Overview The DigitaLinx DL-HD70 HDBaseT extender set transmits HDMI (1080p, 4K (UHD/HDR) and 3D) including HDCP 2.2, bidirectional IR, and RS232 up to 70 meters away using a single Category 6 twisted pair cable. Built-in surge protection and diagnostic LEDs ensure hassle-free and robust installations. Flexible power design allows the units to be powered at either the TX or RX end, and only one power supply is required.
  • Page 6: Front And Rear Panels

    DL-HD70 Owners Manual Front and Rear Panels Transmitter View DC 18V • Locking power port, connect DC18V power adapter (either power port can power entire set) Twisted Pair • RJ45 HDBaseT connection. Connect Cat6 cable to transmitter IR In • 3.5mm IR input port for connection to IR receiver or IR system IR Out •...
  • Page 7: Receiver View

    DL-HD70 Owners Manual Receiver View DC 18V • Locking power port, connect DC18V power adapter (either power port can power entire set) Twisted Pair • RJ45 HDBaseT connection. Connect Cat6 cable to transmitter IR In • 3.5mm IR input port for connection to IR receiver or IR system IR Out •...
  • Page 8: Installation Instructions

    DL-HD70 Owners Manual Installation Instructions Quick Start Connect video source to transmitter HDMI IN Connect display technology to receiver HDMI OUT Connect transmitter and receiver together with a shielded Category 6 cable Connect control (optional) Apply power to either transmitter OR receiver to power entire circuit Connecting a Video Source HDMI Input (Transmitter) Connect an HDMI source device to the HDMI input on the DL-HD70 transmitter labeled HDMI IN using an HDMI...
  • Page 9: Hdbaset Connection

    DL-HD70 Owners Manual HDBaseT Connection Connect one end of a Category cable to the DL-HD70 transmitter labeled TWISTED PAIR, then connect the other end of the Category cable to the DL-HD70 receiver labeled TWISTED PAIR Twisted Pair Wiring Use TIA/EIA-568B wiring for Category 6 connection between send and receive units.
  • Page 10: Connecting Ir Control

    DL-HD70 Owners Manual Connecting IR Control The DL-HD70 is capable of transmitting bi-directional IR signals through the HDBaseT circuit. The DL-HD70 comes with 2 IR receivers (eye) and 2 IR emitters (flashers) so you can control devices from either end of the extender circuit.
  • Page 11: Apply Power

    DL-HD70 Owners Manual Apply Power Connect the included power supply to the transmitter or receiver and lock the power supply to the power connector by twisting the locking collar clockwise. It is not required that both the transmitter and receiver be powered simultaneously.
  • Page 12: Application Diagrams

    DL-HD70 Owners Manual Application Diagrams HDMI Extension / Bi-Directional IR Control Display Remote Source Device IR Emitter (2) IR Eye (1) Power Outlet DL-HD70 TRANSMITTER HDMI CATx DL-HD70 RECEIVER IR Eye (2) Source Device Remote Display IR Emitter (1)
  • Page 13: Hdmi Extension / Control System Ir Control

    DL-HD70 Owners Manual HDMI Extension / Control System IR Control Control System / Switcher IR-AC CABLE DL-HD70 TRANSMITTER HDMI CATx DL-HD70 RECEIVER Display IR Emitter...
  • Page 14: Hdmi Extension / Control System Rs232 Control

    DL-HD70 Owners Manual HDMI Extension / Control System RS232 Control Laptop Control System DL-HD70 TRANSMITTER HDMI CATx RS232 DL-HD70 RECEIVER Display...
  • Page 15: Technical Specifications

    DL-HD70 Owners Manual Technical Specifications Supported Audio and Video Video Compliance HDMI 2.0, HDCP 2.2, and CEC (Consumer Electronics Control) Embedded Audio Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio IR Carrier Frequency Range 33-55kHz at 5 volts RS232 Baud Rate Up to 115200 baud HDBaseT Signal Characteristics...
  • Page 16 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8898 or email us at supportlibav@libav.com www.libav.com is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
