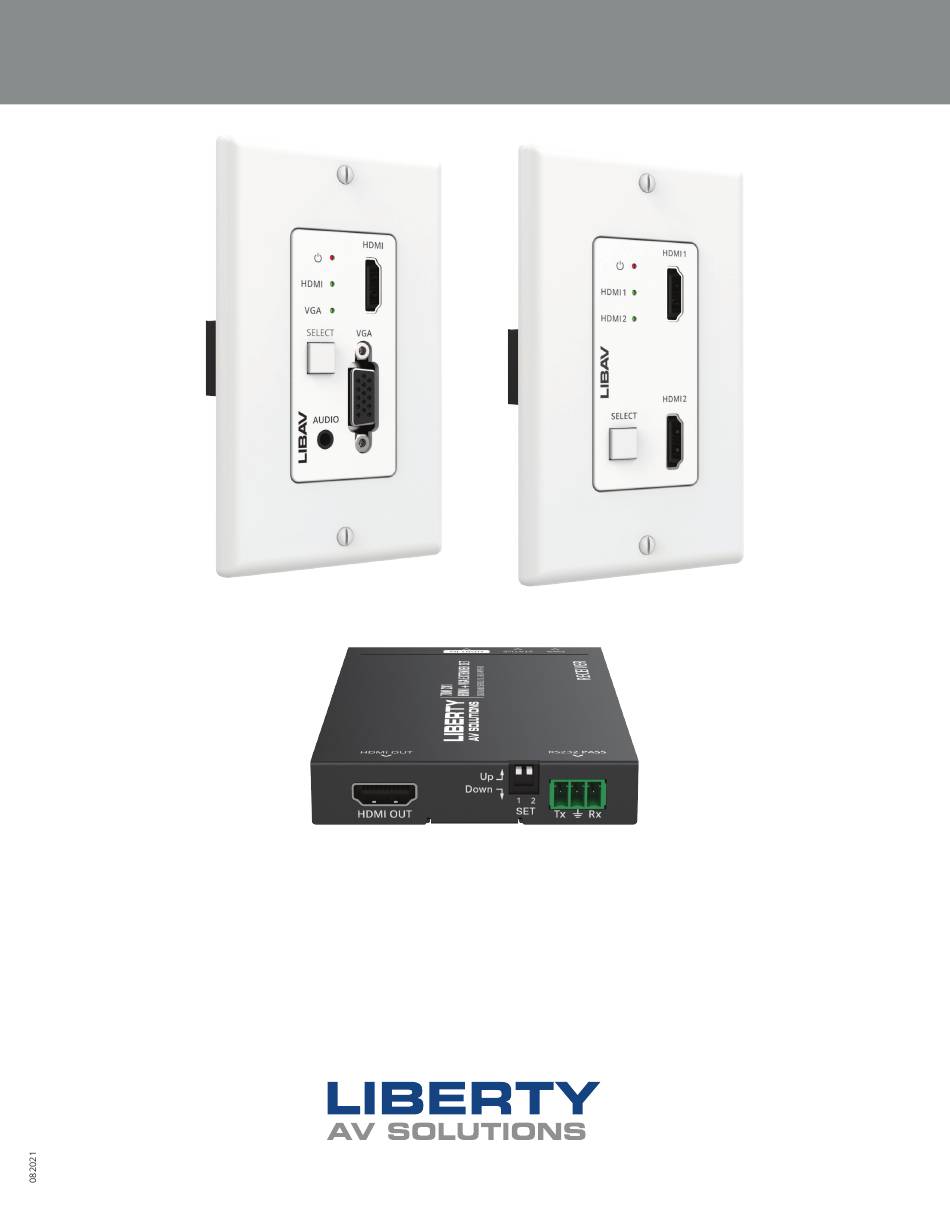

- Page 1 QUICK GUIDE INT-USB2-50H DL-1H1V-WPKT-H2 DL-2H-WPKT-H2 Included Receiver 2X1 HDMI EXTENDER SET www.libav.com 800.530.8998...
-
Page 2: Product Overview
Choose between two models - 1 HDMI + 1 VGA single-gang wall plate with HDMI receiver: DL-1H1V-WPKT-H2. 2 HDMI single-gang wall plate with HDMI receiver: DL-2H-WPKT-H2. Whichever model you choose, it will extend the source content such as a PowerPoint presentation from a laptop to a display such as a TV monitor. - Page 3 6. Phoenix Connector: RS-232 Pass Through 3. LED Indicator for Power Status and AV Connection 7. Micro USB Port for Configuration/Update 4. VGA Female Port: Input 8. 3.5 Jack: Audio Input DL-1H1V-WPKT-H2 FRONT REAR QUICK GUIDE / DL-1H1V-WPKT-H2 AND DL-2H-WPKT-H2...
- Page 4 2. Status LED Indicator 3. Female RJ45 for HDBaseT Connection 4. Link LED 5. Data LED 6. HDMI Female Port: Output to a Display 7. Dip Switches: See Configuration Chart 8. Phoenix Connector: RS-232 Pass Through QUICK GUIDE / DL-1H1V-WPKT-H2 AND DL-2H-WPKT-H2...
-
Page 5: Configuration Settings
In manual switching mode, press the INPUT button on the wall plate to select the AV source; in automatic switching mode, the latest source connected will be automatically selected. Wall Plate Category Cable Receiver Displays Sources QUICK GUIDE / DL-1H1V-WPKT-H2 AND DL-2H-WPKT-H2... -
Page 6: Technical Specifications
1 x 3-pin phoenix Receiver: 1 x female HDMI port Receiver: 1 x female HDMI port, 1 x 3.5 jack Transmission Max Distance (1080P) 230ft / 70m over CAT6/6a/7 Max Distance (UHD/4K) 131ft / 40m over CAT6/6a/7 QUICK GUIDE / DL-1H1V-WPKT-H2 AND DL-2H-WPKT-H2... - Page 7 Thank you for your purchase. For technical support please call our toll-free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com 800-530-8998 QUICK GUIDE / DL-1H1V-WPKT-H2 AND DL-2H-WPKT-H2...
