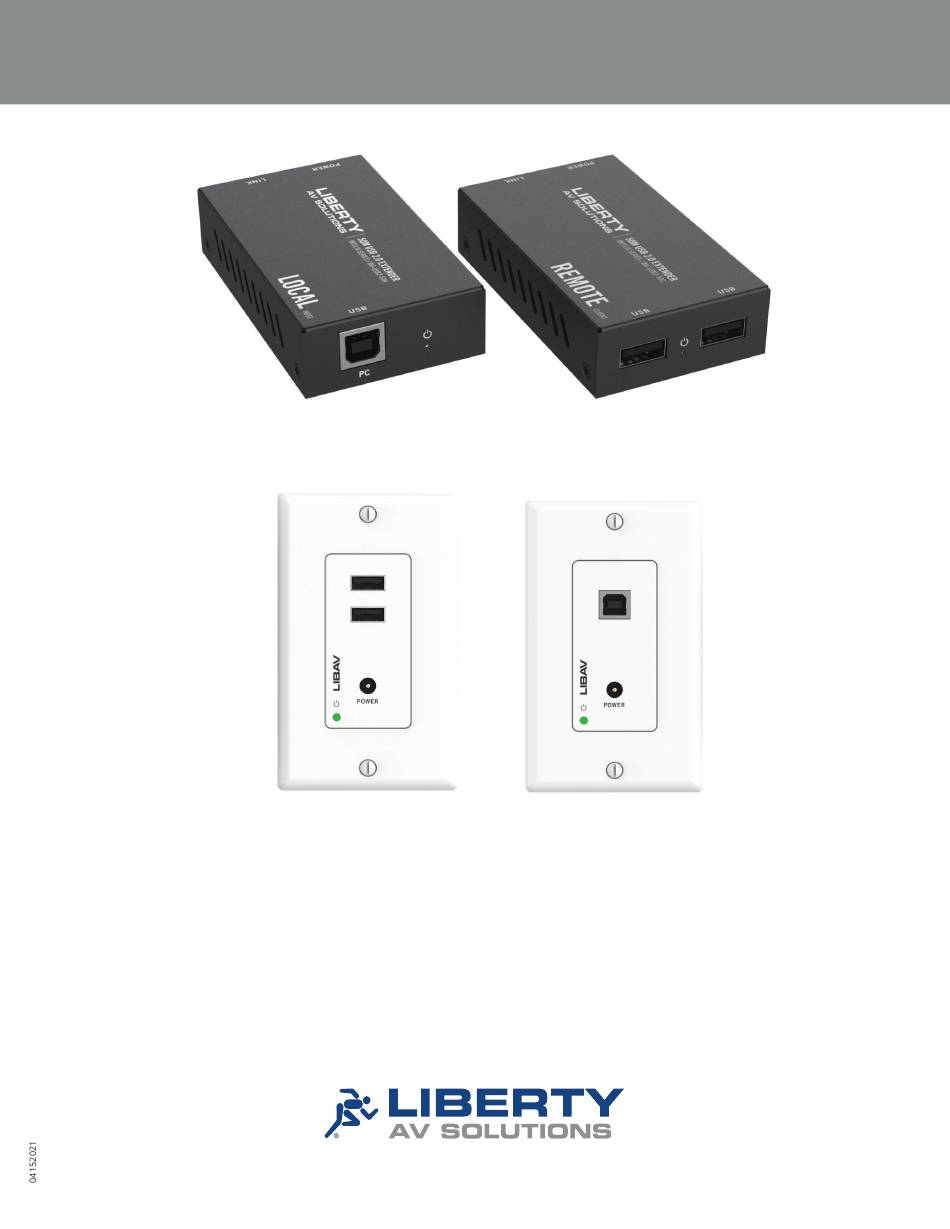

  • Page 1 QUICK GUIDE INT-USB2-50H INT-USB2-50C INT-USB2-50CWP INT-USB2-50HWP 50M USB2.0 EXTENDER SET Local & Remote Units Sold Separately www.libav.com 800.530.8998...

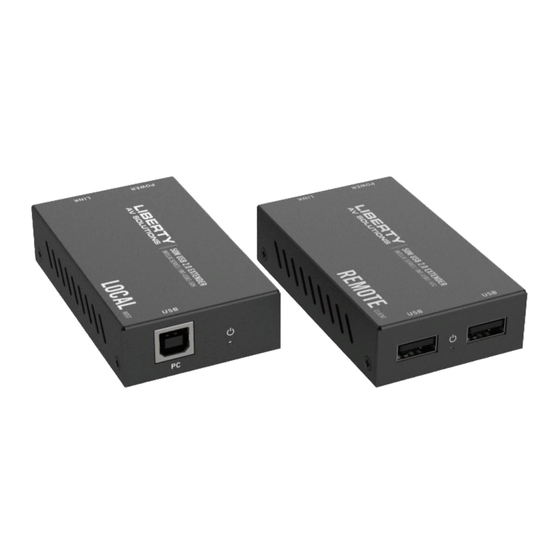

  • Page 2 PRODUCT OVERVIEW Liberty’s 2.0 USB Extender set from the Intelix series offers you the flexibility of choosing between a wall plate and a traditional unit for either the Local or Remote side. Once paired, these will expand the computer’s USB port to a two-port powered USB hub. These devices provide the ability to extend up to two USB 2.0 peripherals 50 meters away from the computer, way beyond the typical 5-meter limitation of only using one CAT6 cable.
  • Page 3 REMOTE PRODUCT BREAKDOWN INT-USB2-50C REAR FRONT 1. DC Power 2. USB 2.0 Type A for Periphials 3. LED Indicator for Power Status 4. Female RJ45 for Link Connection 5. Phoenix Connector - only power the device on the front or back INT-USB2-50CWP FRONT REAR...
  • Page 4 LOCAL PRODUCT BREAKDOWN INT-USB2-50H REAR FRONT 1. DC Power 2. USB 2.0 Type B for Computer 3. LED Indicator for Power Status 4. Female RJ45 for Link Connection 5. Phoenix Connector - for optional power connection. Note: Only power the device on the front or back.
  • Page 5 APPLICATION DIAGRAM Select either a wall plate or box for either the Local or Remote side. The host/local and remote/client are interchangable and are purchased separately. Below is an example showing all four products. QUICK GUIDE / INT-USB2-**...
  • Page 6 TECHNICAL SPECIFICATIONS Model INT-USB2-50C INT-USB2-50CWP INT-USB2-50H INT-USB2-50HWP Physical Parameter Case Material Industrial grade Metal Chassis with metal brackets or wall plate Dimensions 82mm(W)x49m- 45mm 82mm(W)x49m- 45mm m(D)x20mm(H) (W)×103mm m(D)x20mm(H) (W)×103mm (D)×21mm (H) (D)×21mm (H) Weight 100g 102g 100g 102g Power Protection...
  • Page 7 Thank you for your purchase. For Technical Support please call our toll-free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com 800-530-8998 QUICK GUIDE / INT-USB2-**...
