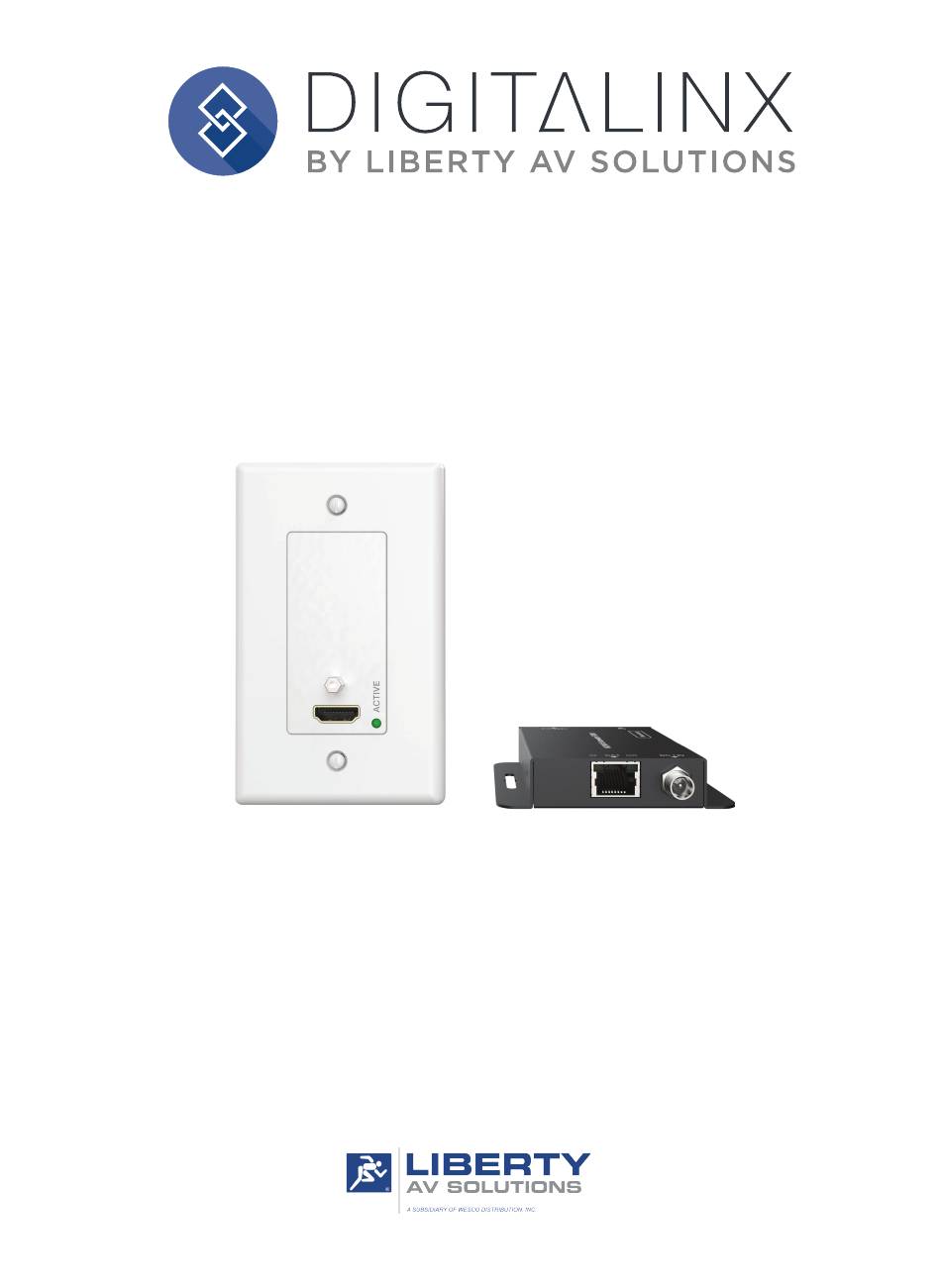

- Page 1 DL-HD50C-WPKT-W Install Guide Phone: 719-260-0061 11675 Ridgeline Drive Rev 201020 Colorado Springs., CO Toll-Free: 800-530-8998 Fax: 719-260-0075 80921...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
☆ Support POC function (Only from receiver to transmitter) 3. Package Contents ① 1 × HDMI Wall Plate Transmitter ② 1 × Digitalinx DL-HD50C-WPKT-W Receiver ③ 1 × Cover Plate ④ 1 × 12V/1A Power Supply with multi-country standard adapters... -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 1.3 HDCP Compliance HDCP 1.4 Video Bandwidth 4.85 Gbps Video Resolution 480P60~1920x1080@60Hz HDMI Audio Formats PCM2.0/5.1/7.1CH, Dolby Digital, Dolby True HD, DTS Transmission 50M (1080P) Human-body Model: ±8kV (Air-gap discharge), ESD Protection ±4kV (Contact discharge) Connection Input: 1×HDMI Type A [19-pin female] Transmitter... -
Page 5: Operation Controls And Functions

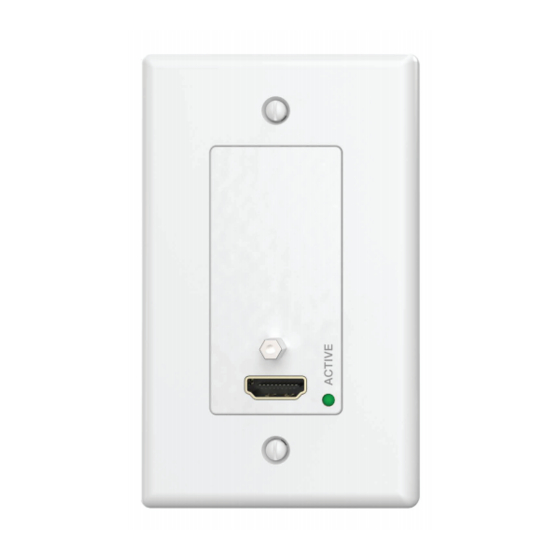

5. Operation Controls and Functions 5.1 Transmitter Panel HDMI IN Name Function Description HDMI signal input port, connect to HDMI source device HDMI IN port such as DVD Blu-ray player or Laptop with HDMI cable. HDMI signal input indicator. When the transmitter is ACTIVE LED powered on or when there is HDMI signal input, the green LED will be on. -
Page 6: Application Example
6. Application Example CAT5e/6/6a Cable Transmitter Receiver DC 12V HDMI OUT HDMI IN Power Adapter TV or Monitor Laptop The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
