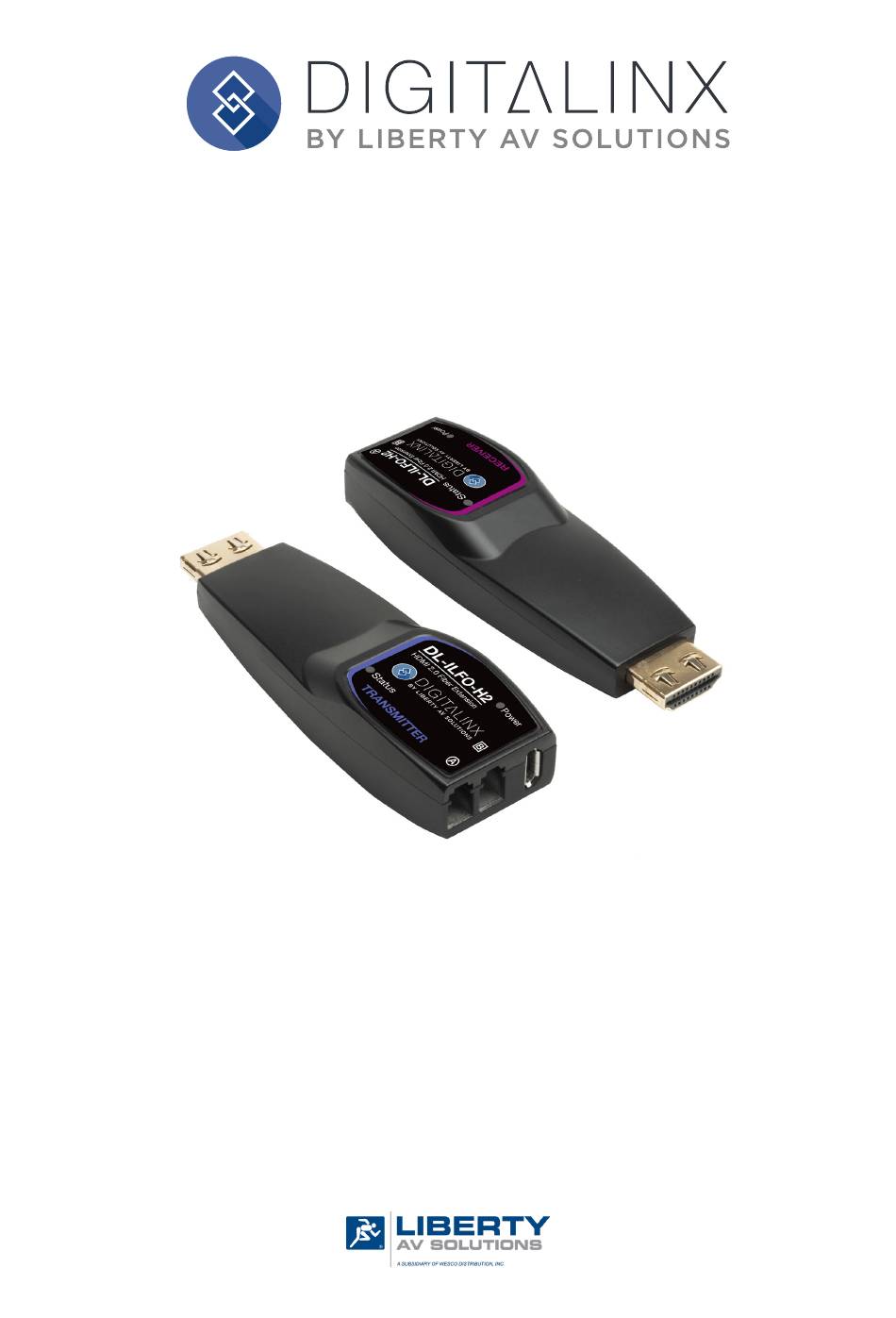

- Page 1 DL-ILFO-H2 Install Guide Rev 200921 11675 Ridgeline Drive Phone: 719-260-0061 Colorado Springs, CO Toll-Free: 800-530-8998 80921 Fax: 719-260-0075...
-
Page 3: Product Overview

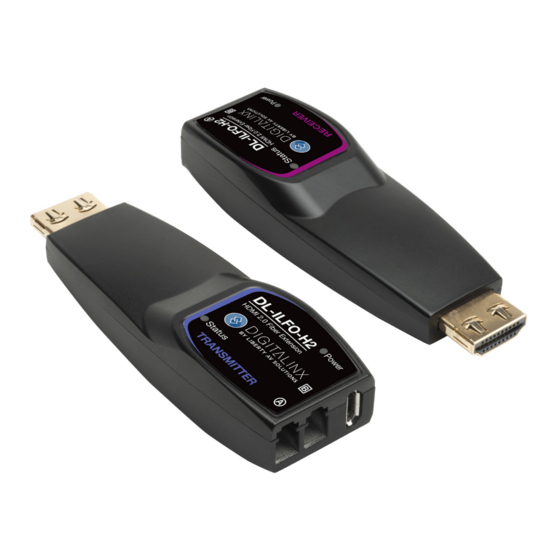

DL-ILFO-H2 Owners Manual Product Overview The DigitaLinx DL-ILFO-H2 HDMI 2.0 extender set extends uncompressed HDMI audio and video up to 200m / 660’ using a duplex multi-mode OM3 fiber cable. The DL-ILFO-H2 Supports HDMI 2.0b up to 18Gbps, CEC, HDR10, HDR10+ Dolby Vision and HDCP 2.2 as well as High Definition Dolby and DTS audio formats. -
Page 4: Installation Instructions
DL-ILFO-H2 Owners Manual Installation Instructions Connect Fiber Cables to Extenders Connect a duplex LC OM3 optical fiber cable between the transmitter and the receiver, note that each fiber channel should be connected as (A) to (A) and (B) to (B) respectively. The maximum length for the OM3 fiber cable is 200m / 660’. - Page 5 DL-ILFO-H2 Owners Manual Connect Fiber Extender to Devices Connect the DL-ILFO-H2 transmitter to the HDMI source, connect the receiver to the TV display. NOTE: Be sure the extender device labeled TRANSMITTER is connected to the HDMI source, and the device labeled RECEIVER is connected to the TV display.
-
Page 6: Technical Specifications
DL-ILFO-H2 Owners Manual Technical Specifications Supported Audio and Video Video Compliance HDMI 2.0b, HDCP 2.2, and CEC (Consumer Electronics Control) Input / Output Resolution Support All resolutions are supported up to 4096x2160 / 60Hz; 4:4:4; 8 bit deep color Maximum Pixel Clock 600MHz Embedded Audio LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24,... - Page 8 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com Digitalinx is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
