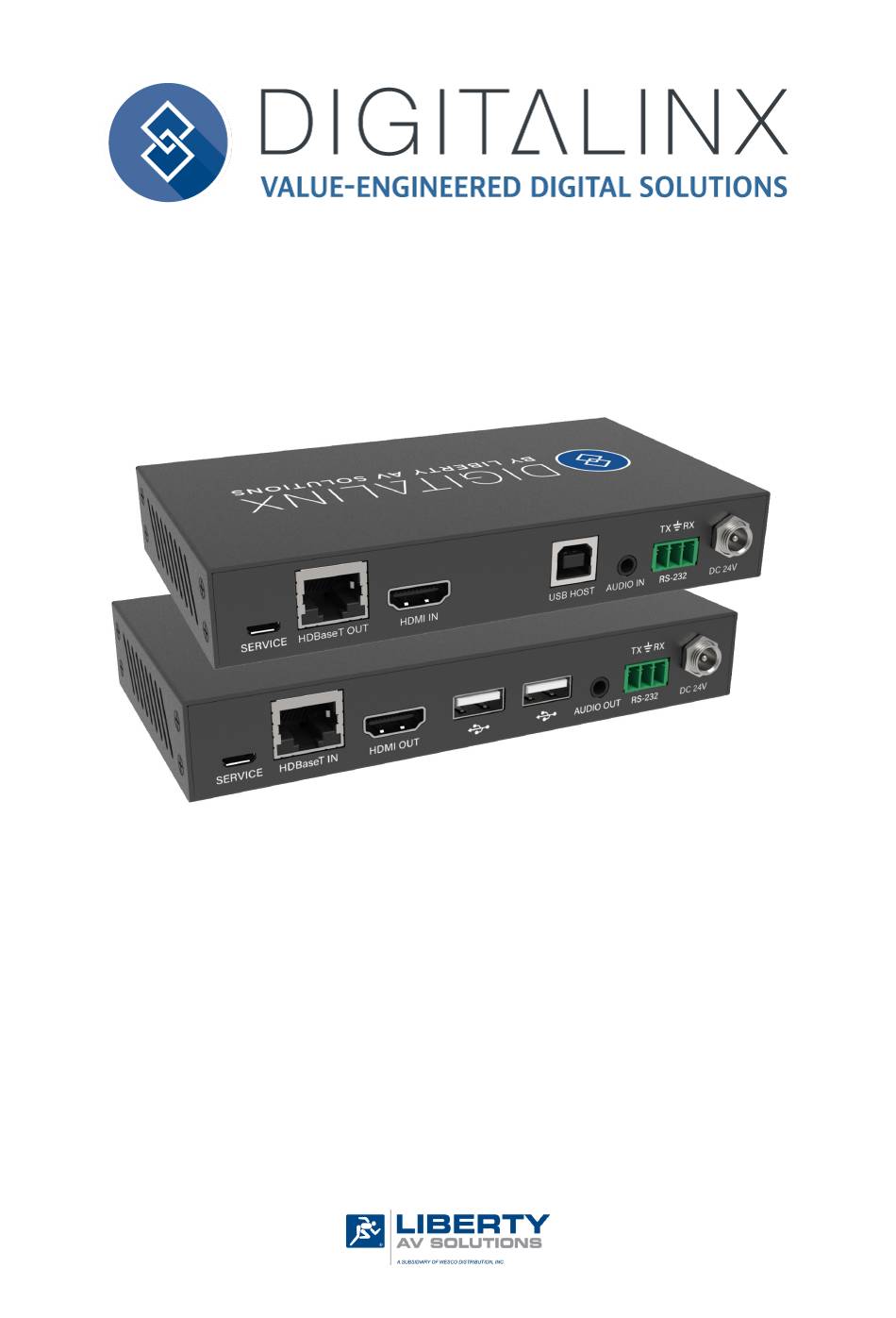

- Page 1 DL-1H1A1U-B Install Guide Rev 200221 11675 Ridgeline Drive Phone: 719-260-0061 Colorado Springs, CO Toll-Free: 800-530-8998 80921 Fax: 719-260-0075...
-
Page 2: Product Overview
DL-1H1A1U-B Install Guide Product Overview The Digitalinx DL-1H1A1U-B HDBaseT 2.0 extender set transmits HDMI, audio , USB High Speed (up to 190Mbps) and RS232 over single category 6 twisted pair cable. The DL-1H1A1U-B can transmit 4K resolutions up to 4K@60Hz, 4:2:0 up to 40m / 120’... -

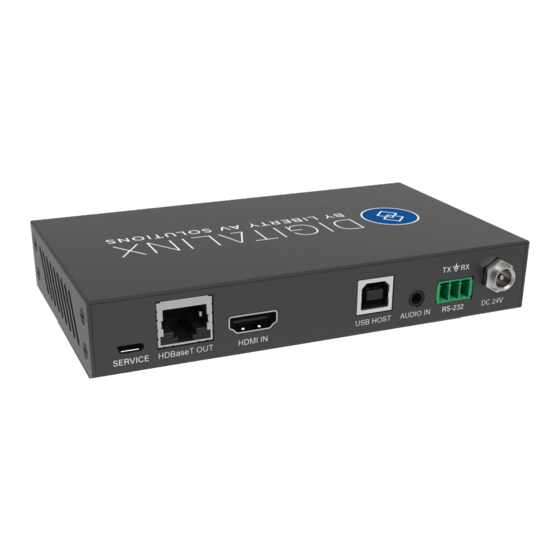

Page 3: Transmitter / Receiver View
DL-1H1A1U-B Install Guide Transmitter / Receiver View Transmitter Front / Back View 1. POWER LED • When LED is ON, transmitter is powered on • When LED is OFF, transmitter is powered off 2. LINK LED • When LED is ON, transmitter and receiver is properly connected with Category cable •... - Page 4 DL-1H1A1U-B Install Guide Receiver Front / Back View 1. POWER LED • When LED is ON, receiver is powered on • When LED is OFF, receiver is powered off 2. LINK LED • When LED is ON, transmitter and receiver is properly connected with Category cable •...
- Page 5 DL-1H1A1U-B Install Guide Connectivity Instructions 1. Verify all components included with the extender set are present before installation. 2. If the extenders are going to be permanently mounted to a surface, attach the included mounting brackets with the supplied screws. 3.
-
Page 6: Cabling Requirements
DL-1H1A1U-B Install Guide Cabling Requirements HDBaseT Cabling To ensure proper performance of the DL-1H1A1U-B, it is recommended that you use solid core, shielded Category 6 F/UTP cabling at a minimum. Category 5e F/UTP may perform well but may not support power over HDBaseT reliably. When using shielded category cabling ALWAYS... -
Page 7: Technical Specifications
DL-1H1A1U-B Install Guide Technical Specifications VIDEO Video Inputs (TX) (1) HDMI Video Input Connector (TX) (1) HDMI type A Input Video Signal HDMI Video Output (RX) (1) HDMI Video Output Connector (RX) (1) HDMI type A Output Video Signal HDMI Input Resolutions Supported Up to 3840 x 2160 @ 60Hz, 4:2:0, 8bit color depth Standards... - Page 8 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportli- bav@libav.com www.libav.com Digitalinx is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
