- Page 1 MS-550 (MS-350 series) Media Station Quick Installation Guide ENGLISH AREC Inc.© All Rights Reserved 2016. l www.arec.com All information contained in this document is Proprietary...
- Page 2 This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Hereby, AREC Inc., declares that this Media Station is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
- Page 3 MS-550 Quick Installation Guide CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. – the ventilation should not be impeded by covering the ventilation openings with items, such as newspapers,table-cloths, curtains, etc.: –...
-
Page 4: Specifications

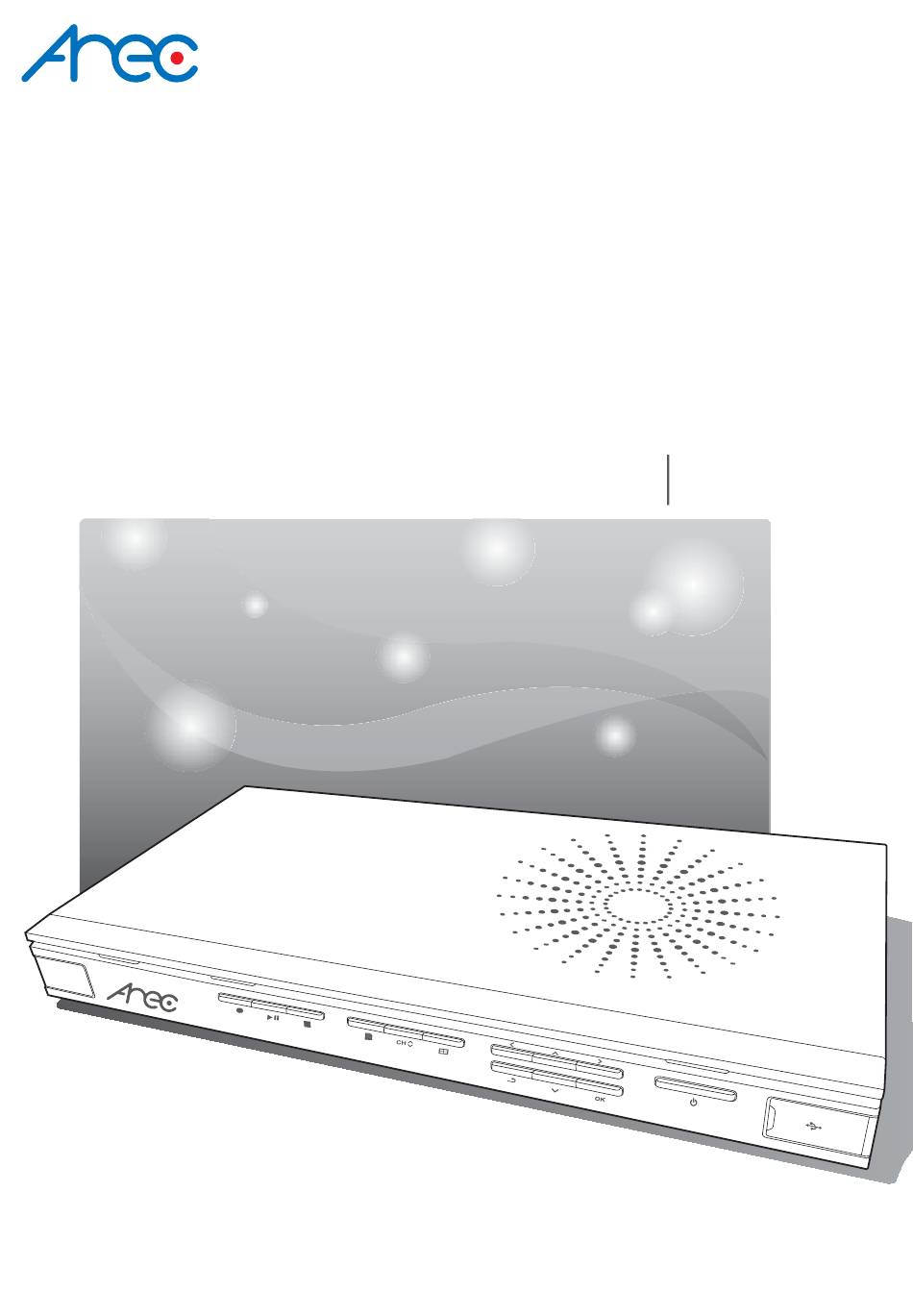

MS-550 Quick Installation Guide Introduction Featuring a compact and stand-alone design, AREC MS-550 Media Station consists of diverse features and functionality, including multi-signals capturing, recording synchronously, codec, streaming online, multi-channel split screen, live broadcasting, and web-based video switcher, providing complete lecture capture solution. -
Page 5: Product Appearance
MS-550 Quick Installation Guide Product Appearance Front Back Name Brief introduction Remote Control receiver Remote Control receiving area Led light Bluetooth/Record/Power Function key Record/Play/Pause/Stop/Menu/Channel/Preview Layout Select key: Up/Down/Left/Right /Back/OK Power Power on/ off devices USB port Export document by driving USB flash drive into USB port... -
Page 6: Remote Controller
MS-550 Quick Installation Guide Remote Controller Name Brief introduction Power Power on/ off devices Resolution Adjust the output resolution A/B/C/D A：Export the storage device B/C/D：User Define Prev Index Jump to previous index play Info Display the channel information Next Index... - Page 7 MS-550 Quick Installation Guide Connection AREC CI-200 Network Camera AREC TP-100 projector AREC Auto-Tracking System AM-500 Wireless Speaker Microphone Power Video output VGA / HDMI Audio output Wireless audio receiver Digital I/O Audio input Video input VGA / HDMI eSATA Hard drive microphone amplifier...
- Page 8 MS-550 Quick Installation Guide Connection Name Brief introduction Power Power connection Video input Video input for VGA or HDMI cables. For example: Connected to notebook or document cam. Video output Video output for VGA or HDMI cables. For example: Connected to projector or TV.
-
Page 9: Product Setup
MS-550 Quick Installation Guide Product setup Initial installation Initial installation Get IP address from About option in Setup item of the host output interface main menu and Get IP address from About option in Setup item of the host output interface main menu and... - Page 10 MS-550 Quick Installation Guide Step 4：Click Discovery Refresh to auto scan web cam and auto tracking cloud connected to host. You may click button to manual add web cam and auto tracking cloud by input specific IP or MAC address.
- Page 11 MS-550 Quick Installation Guide Step 6：Set up name/video source/tracking source/tracking mode of network image input channel by selecting + icon in image sensor option in sensor setup tab. Click Tool symbol Channel Configuration page and the source setup page displays.
- Page 12 MS-550 Quick Installation Guide Step 7：After the sensor is set up successfully, click Apply to display image. You may switch between split display screens with remote controller. Step 8：Set up local storage. It is recommended to install one whole new hard disk for this.
- Page 13 MS-550 Quick Installation Guide Battery Safety Messages Please store the battery at cool and dry places. Please do not randomly discard used batteries; please collect the batteries and drop them at specific recycling locations. If the product is not used for long periods of time, please remove the batteries from the product.
- Page 14 AREC Inc.© All Rights Reserved 2016. l www.arec.com All information contained in this document is Proprietary Made in Taiwan Version：1.9 Date : 2016.11.1...
