Summary of Contents for Arec LS-110

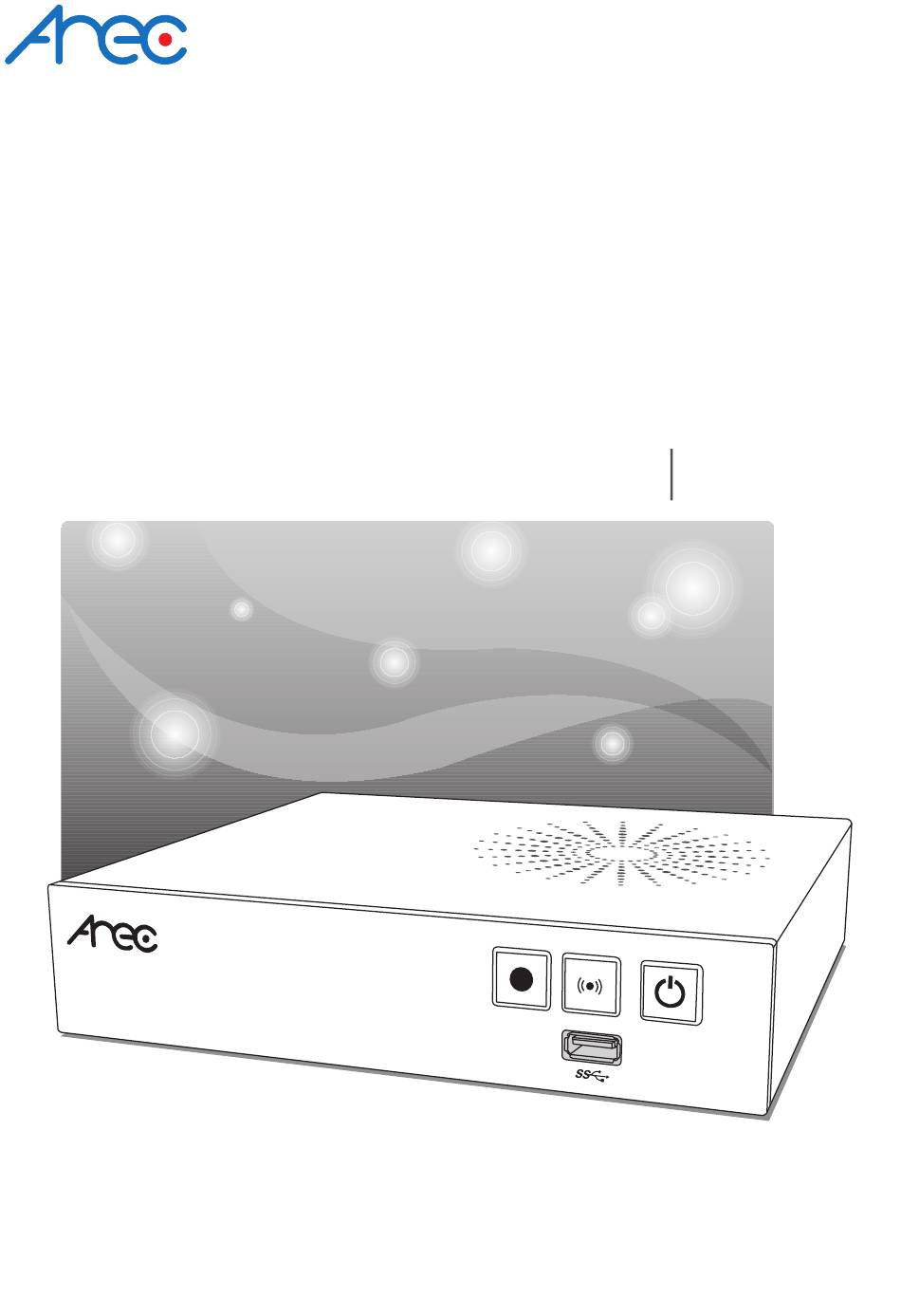

- Page 1 LS-110 Media Station Quick Installation Guide ENGLISH AREC Inc.© All Rights Reserved 2021. l www.arec.com All information contained in this document is Proprietary...
- Page 2 Notice: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Hereby, AREC Inc., declares that this Media Station is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.
- Page 3 LS-110 Quick Installation Guide CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. – the ventilation should not be impeded by covering the ventilation openings with items, such as newspapers,table-cloths, curtains, etc.: –...
-
Page 4: Specifications
LS-110 Quick Installation Guide Introduction Featuring a compact and stand-alone design, AREC LS-110 Media Station consists of diverse features and functionality, including multi-signals capturing, recording synchronously, codec, streaming online, live broadcasting, and web-based monitor page, providing complete presentation or lecture capture solution. -
Page 5: Product Appearance
Network port RJ-45 Ethernet connector for network connection RS-232 Captive screw connector for control over RS-232 Reset button Restoring devices to its factory default state NOTE: The LS-110 can detect and record to USB storage devices using FAT32, NTFS file systems. - Page 6 LS-110 Quick Installation Guide Connection notebook Power document cam external hard disk Speaker Audio output Video input HDMI USB mouse RS-232 Speakerphone Video output HDMI Video output HDMI Line audio input USB drive amplifier USB Keyboard projector projector network...
- Page 7 LS-110 Quick Installation Guide Accessing the Administrator pages Use the RJ-45 Ethernet cable to connect an IP-based network to the LAN port. Enter the IP address displayed in the lower right side of the screen in your browser to access the System Administration webpage.
- Page 8 ]. Then the camera is ready for video input selection. Select the desired camera by its IP address. For video source of encoder, enter RTSP or RTP connection URL. * For instance, the camera and LS-110 connected under the same router with the same LAN address. LS-110(192.168.0.10) Router(192.168.0.1)
- Page 9 LS-110 Quick Installation Guide Step 2: Set up audio volume in [ Audio ] of [ Media I/O Step 3: Set up date and time of host machine in [ System settings ] of [ System Getting start a recording...
- Page 10 LS-110 Quick Installation Guide Start a recording via the Online director Entering the Online director webpage via [System Administration] by clicking the [ ] button and opening a new tab; or log in Online director from the initial login page with default username director and password director.
- Page 11 LS-110 Quick Installation Guide CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS Important Security Policy Precautions 1.Please open the product package carefully; we recommend you keep this packaging for future transport, storage or maintenance use.
- Page 12 AREC Inc.© All Rights Reserved 2021. l www.arec.com All information contained in this document is Proprietary Made in Taiwan Date : 2021.3.1 Version : 2.20...
