  • Page 1 KL-3 Media Station Quick Installation Guide ENGLISH AREC Inc.© All Rights Reserved 2020. l www.arec.com All information contained in this document is Proprietary...
  • Page 2 Notice: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Hereby, AREC Inc., declares that this Media Station is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.
  • Page 3 KL-3 Quick Installation Guide CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. – the ventilation should not be impeded by covering the ventilation openings with items, such as newspapers,table-cloths, curtains, etc.: –...
  • Page 4: Specifications

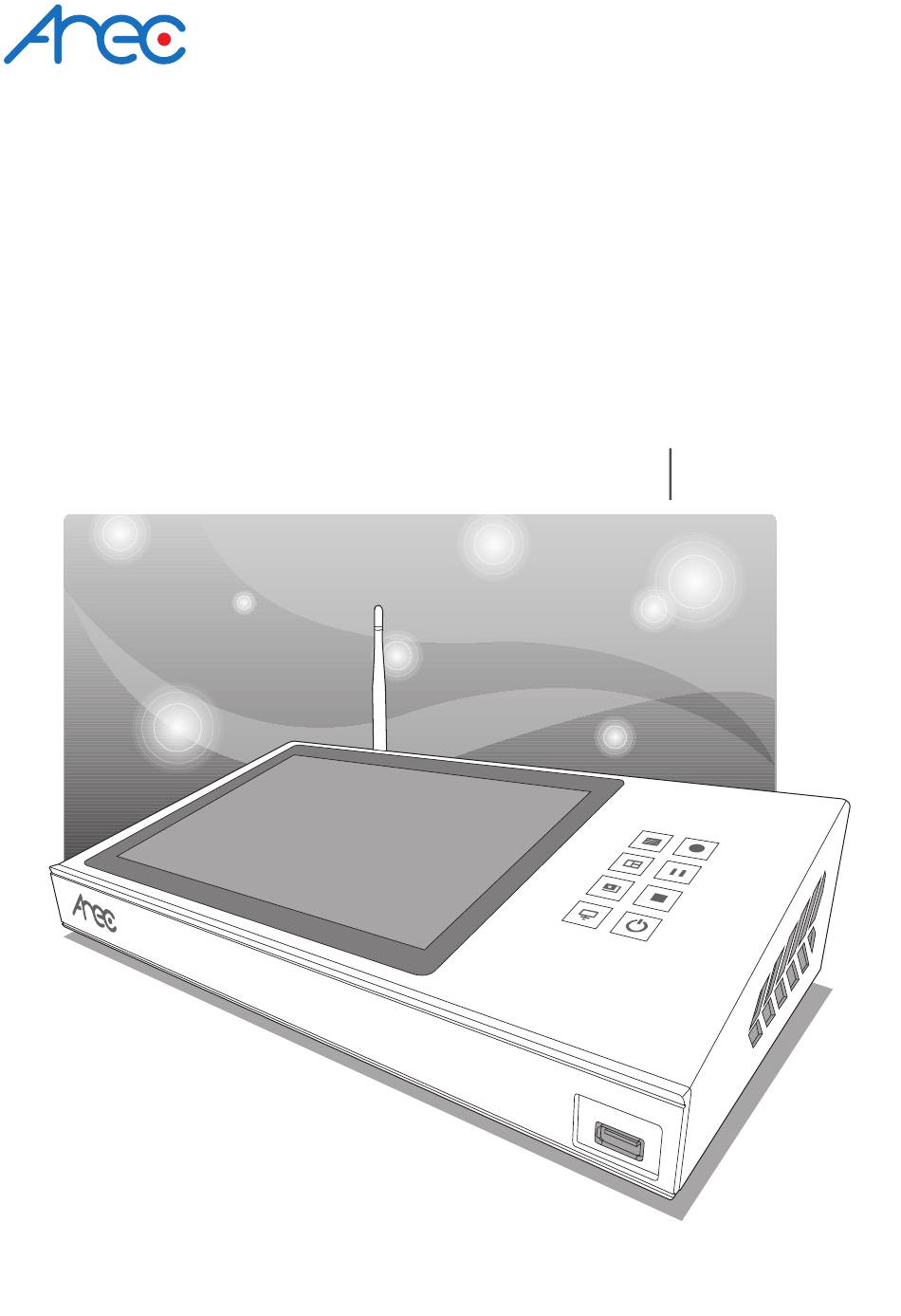

    KL-3 Quick Installation Guide Introduction Featuring a compact and stand-alone design, AREC KL-3 Media Station consists of diverse features and functionality, including multi-signals capturing, recording synchronously, codec, streaming online, live broadcasting, and web-based monitor page, providing complete presentation or lecture capture solution.
  • Page 5: Product Appearance

    KL-3 Quick Installation Guide Product Appearance Top View Back View 11 12 13 14 Name Brief introduction 10.1” LCD Display Preview mixed recording Background function key Select preference background Layout function keys Select preference layout Record function keys Control the Record, Pause, Stop function...
  • Page 6 KL-3 Quick Installation Guide Connection Setting PC AREC Wireless Microphone projector Video output VGA / HDMI AREC Speaker Network Camera Audio output Power RS-232 Line audio input Mic audio input Video input VGA / HDMI network amplifier RS-232 notebook USB drive...
  • Page 7 KL-3 Quick Installation Guide Accessing the Administrator pages Connect PC to the setting port of Media Station with standard network cable.Open up the browser, and input 192.168.11.254 in the broswer page. Log in Administrator [ ] with username admin and password admin, then entering System Administration webpages.
  • Page 8 KL-3 Quick Installation Guide Setup Step 1: Set up video input name, signal type, video source, PTZ control in [ Video inputs ] of Media I/O ]. While choosing “video port” as the [ Signal type ], there will be an option of “VGA”...
  • Page 9 KL-3 Quick Installation Guide Step 2: Adjust audio volume in [ Audio ] of [ Media I/O ] if necessary. Step 3: Change “Device description” in [ System settings ] of [ System ] to identify this device. If necessary, set up date and time information in the same page and switch to [ Network to check network settings.
  • Page 10 KL-3 Quick Installation Guide Start a recording via the Online director Entering the Online director webpage via [ System Administration ] by clicking the [ ] button and opening a new tab; or log in Online director from the initial login page with default username director and password director.
  • Page 11 KL-3 Quick Installation Guide CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS Important Security Policy Precautions 1.Please open the product package carefully; we commend you keep this packaging for future transport, storage or maintenance use.
  • Page 12 AREC Inc.© All Rights Reserved 2020. l www.arec.com All information contained in this document is Proprietary Made in Taiwan Date : 2020.2.27 Version : 2.6...
