PR electronics 9106 Product Manual

Hart transparent repeater
Hide thumbs Also See for 9106:
Table of Contents

Advertisement

Quick Links

Download this manual

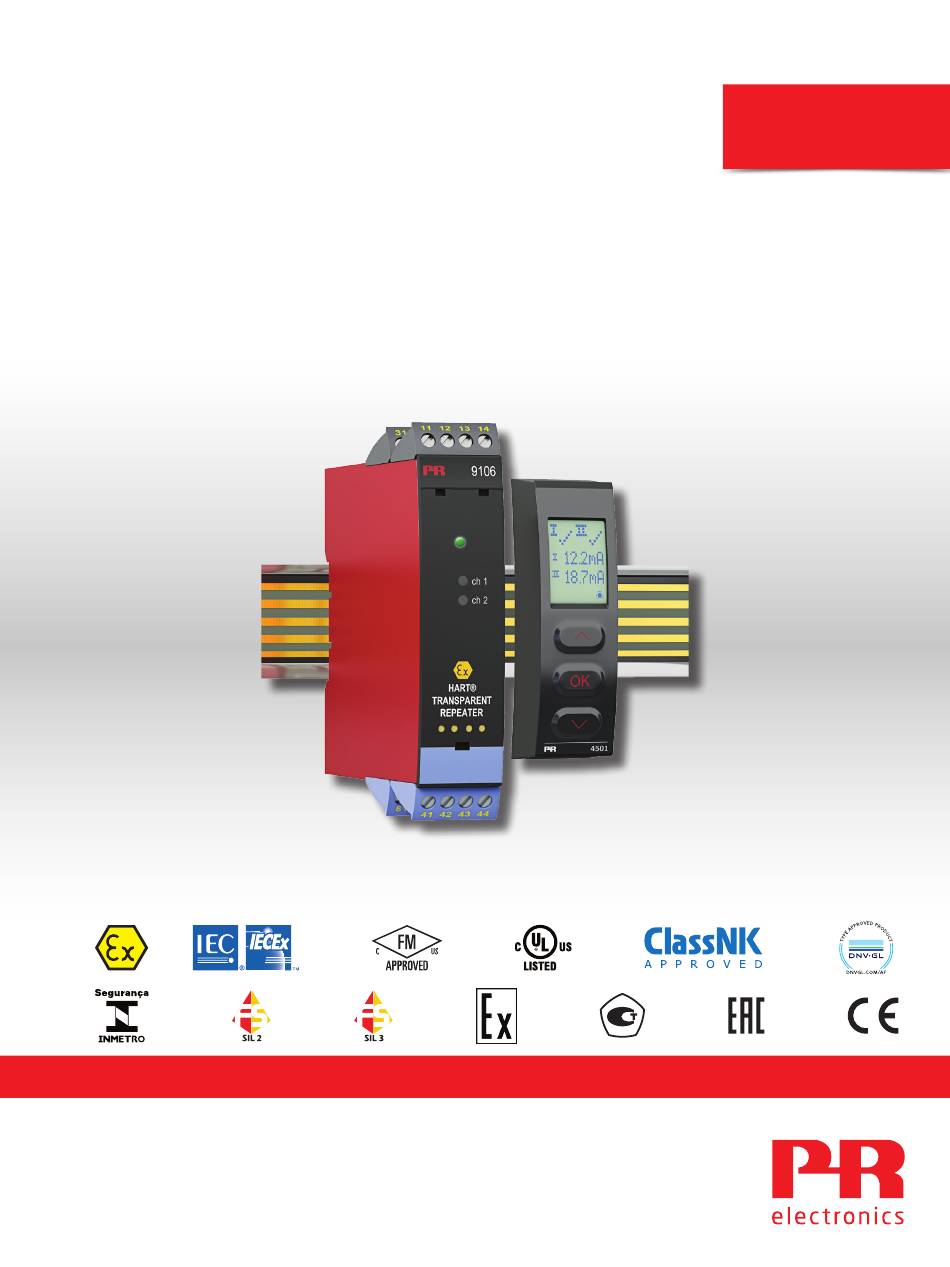

Product manual
9106
HART transparent repeater
T E M P E R AT U R E
|
I . S . I N T E R FA C E S
No. 910 6V10 6 - UK
Produc t ver sion: 910 6 - 0 02
|
CO M M U N I C AT I O N I N T E R FA C E S
|
M U LT I F U N C T I O N A L
|
I S O L AT I O N
PERFORMANCE
MADE
SMARTER
|
D I S P L AY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9106 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PR electronics 9106

Summary of Contents for PR electronics 9106

  • Page 1 PERFORMANCE MADE SMARTER Product manual 9106 HART transparent repeater T E M P E R AT U R E I . S . I N T E R FA C E S CO M M U N I C AT I O N I N T E R FA C E S...
  • Page 2 6 Product Pillars to meet your every need Individually outstanding, unrivalled in combination With our innovative, patented technologies, we make signal conditioning smarter and simpler. Our portfolio is composed of six product areas, where we offer a wide range of analog and digital devices covering over a thousand applications in industrial and factory automation.

  • Page 3: Table Of Contents

    Document history ..................9106 - Product version 9106-002...

  • Page 4: Warning

    General mounting, wire connection and disconnection. Troubleshooting the device. Repair of the device and replacement of circuit breakers must be done by PR electronics A/S only. Warning Do not open the front plate of the device as this will cause damage to the connector for the display / programming front PR 45xx.

  • Page 5: How To Demount System 9000

    To the extent the instructions in this manual are not strictly observed, the custom er cannot advance a demand against PR electronics A/S that would otherwise exist according to the concluded sales agreement. How to demount system 9000 Picture 1: By lifting the bottom lock, the device is detached from the DIN rail. 9106 - Product version 9106-002...

  • Page 6: Application

    • SIL2 / SIL3 Full Assessment and certified acc. to IEC 61508 Application • 9106 is a 1- or 2-channel isolated 1:1 repeater barrier. • The device supplies 2-wire SMART transmitters and can also be used for 2-wire SMART current sources. HART & BRAIN protocols are supported and are transferred bi-directionally.

  • Page 7: Applications - 9106Axxx

    No connection Power connection: Channel 2 Supply - 2-wire transmitter Supply +19.2...31.2 VDC Device status N.C. Current Device status Same power rail as above Zone 2 & Cl. 1, Div. 2, gr. A-D or Safe Area 9106 - Product version 9106-002...

  • Page 8: Applications - 9106Bxxx

    Current Device status Zone 0, 1, 2, Same power rail as above 20, 21, 22, M1 & Cl. I/II/III, Div. 1 Zone 2 & Cl. 1, Div. 2, gr. A-D gr. A-G or Safe Area 9106 - Product version 9106-002...

  • Page 9: Pr 45Xx Display / Programming Front

    Using Modbus output via 4511 When using the digital output of the 4511 and no load on the output terminals of the 9106, the output terminals need to be shorted to make sure that the 9106 does not overheat.

  • Page 10: Order

    : -U9 FM, INMETRO, EAC-Ex Example: 9106B2B Accessories 4501 = Display / programming front 4511 = Communication enabler ST9106-01 = Short-circuit bridge for 9106 output 9400 = Power rail 9404 = Module stop for rail 9410 = Power control unit 9421...
  • Page 11 Max. power dissipation is the maximum power dissipated by the device. If the 9106 is used with the 45xx, then add 40 mW to the max. power dissipation and 70 mW to the max. required power for each device with the 45xx.
  • Page 12 EAC Ex ......... . RU C-DK.GB08.V.00410 Functional Safety: SIL2 Certified & Fully Assessed acc. to IEC 61508 SFF> 60% - type A component SIL3 Applicable through redundant structure (HFT=0) 9106 - Product version 9106-002...

  • Page 13: Visualisation In 45Xx Of Hardware / Software Error

    Visualisation in 45xx of hardware / software error Readout at hardware error Error search Readout Cause Communications test 45xx and 9106 NO.CO Connection error Configuration error or CRC mismatch, recovery EEprom error - check configuration FL.ER configuration is loaded User error...

  • Page 14: Connections

    2-wire transmitter Current Current Outputs: Current Passive 2-wire Current Passive 2-wire HART communication is possible directly on the input and output terminals if the output load impedance is > 250 Ohm & < 600 Ohm. 9106 - Product version 9106-002...

  • Page 15: Block Diagram

    16.0mA Ch. 1 status, Red Ch. 2 status, Red FLASH Status relay N.C. Status relay N.C. 2-wire transmitter 2-wire supply 4...20 mA Channel 1 Gnd. 2-wire supply 2-wire transmitter 4...20 mA Channel 2 Gnd. 9106 9106 - Product version 9106-002...

  • Page 16: Signal Error Indications Without Display Front

    Ch. 2, signal limit exceeded Blinking Blinking De-energized ON (if activated) Ch. 2, fixed loop break limit Blinking Flashing De-energized exceeded (if activated) Blinking : 50% ON and 50% OFF Flashing : 8% ON and 92% OFF 9106 - Product version 9106-002...

  • Page 17: Configuration / Operating The Function Keys

    In general When configuring the 9106, you will be guided through all parameters and you can choose the settings which fit the application. For each menu there is a scrolling help text which is automatically shown in line 3 on the display.

  • Page 18: Routing Diagram

    In case of loop break, 0.0 is shown for 5 sec. followed by txt 19. Line 1 symbols: Line 3 shows the same as line 2, only for channel 2.  = OK. Flashing œ = error. Line 4 shows status for communication. 9106 - Product version 9106-002...

  • Page 19: Routing Diagram, Advanced Settings (Adv.set)

    Txt 11 Txt 11 9999 0000 PASS 0000 SETUP EN.PASS NEW.PAS Txt 6 Txt 15 Txt 16 To default state 1.0 LANG SETUP LANGUA Txt 6 Txt 17 RAIL SETUP RAIL.EN Txt 6 Txt 5 9106 - Product version 9106-002...

  • Page 20: Help Text Overview

    Enable password protection [EN.PASS] [16] Set new password [NEW.PAS] [17] Select language [LANGUA] [18] Loop signal limit exceeded [19] Loop wire breakage [20] No communication - check connections Eeprom error - check configuration [21] [22] Hardware error 9106 - Product version 9106-002...

  • Page 21: Iecex Installation Drawing

    For installation on Power Rail in Zone 2, only Power Rail type 9400 supplied by Power Control Unit type 9410 (Type Examination Certificate KEMA 07ATEX0152 X) is allowed. Revision date: Version Revision Prepared by: Page: 2016-11-30 V5 R0 9106 - Product version 9106-002...
  • Page 22 33.17 mH 54.42 mH 3.86 mH 15.43 mH 30.86 mH 50.64 mH -------- 223 µH/Ω 447 µH/Ω 733 µH/Ω --------- 234 µH/Ω 468 µH/Ω 769 µH/Ω Revision date: Version Revision Prepared by: Page: 2016-11-30 V5 R0 9106 - Product version 9106-002...
  • Page 23 Ex input: External current source CH1 (terminal 41,42) CH2 (terminal 51,52) 0 mA 0 mW 30 V 120 mA 0.85 mA 2 nF 0 μH Revision date: Version Revision Prepared by: Page: 2016-11-30 V5 R0 9106 - Product version 9106-002...
  • Page 24 33.17 mH 54.42 mH 3.86 mH 15.43 mH 30.86 mH 50.64 mH -------- 223 µH/Ω 447 µH/Ω 733 µH/Ω --------- 234 µH/Ω 468 µH/Ω 769 µH/Ω Revision date: Version Revision Prepared by: Page: 2016-11-30 V5 R0 9106 - Product version 9106-002...
  • Page 25 Ex input: External current source 1 to 2 CH1 (terminal 42) CH2 (terminal 51) 0 mA 30 V 120 mA 0.85 W 4 nF 0 μH Revision date: Version Revision Prepared by: Page: 2016-11-30 V5 R0 9106 - Product version 9106-002...

  • Page 26: Atex Installation Drawing

    For installation on Power Rail in Zone 2, only Power Rail type 9400 supplied by Power Control Unit type 9410 (Type Examination Certificate KEMA 07ATEX0152 X) is allowed. Revision date: Version Revision Prepared by: Page: 2016-11-30 V5 R0 9106 - Product version 9106-002...
  • Page 27 33.17 mH 54.42 mH 3.86 mH 15.43 mH 30.86 mH 50.64 mH -------- 223 µH/Ω 447 µH/Ω 733 µH/Ω --------- 234 µH/Ω 468 µH/Ω 769 µH/Ω Revision date: Version Revision Prepared by: Page: 2016-11-30 V5 R0 9106 - Product version 9106-002...
  • Page 28 Ex input: External current source CH1 (terminal 41,42) CH2 (terminal 51,52) 0 mA 0 mW 30 V 120 mA 0.85 mA 2 nF 0 μH Revision date: Version Revision Prepared by: Page: 2016-11-30 V5 R0 9106 - Product version 9106-002...
  • Page 29 33.17 mH 54.42 mH 3.86 mH 15.43 mH 30.86 mH 50.64 mH -------- 223 µH/Ω 447 µH/Ω 733 µH/Ω --------- 234 µH/Ω 468 µH/Ω 769 µH/Ω Revision date: Version Revision Prepared by: Page: 2016-11-30 V5 R0 9106 - Product version 9106-002...
  • Page 30 Ex input: External current source 1 to 2 CH1 (terminal 42) CH2 (terminal 51) 0 mA 30 V 120 mA 0.85 W 4 nF 0 μH Revision date: Version Revision Prepared by: Page: 2016-11-30 V5 R0 9106 - Product version 9106-002...

  • Page 31: Fm Installation Drawing

    Warning: The Loop Supply and Current Input terminals for the same channel shall not be applied at the same time. The wiring of unused terminals is not allowed. Revision date: Version Revision Prepared by: Page: 2019-04-04 V5 R0 9106 - Product version 9106-002...
  • Page 32 0.670F 2.24 F 3.85 mH 15.43 mH 30.86 mH 4.14 mH 16.58 mH 33.17 mH -------- 223 µH/Ω 447 µH/Ω --------- 234 µH/Ω 468 µH/Ω Revision date: Version Revision Prepared by: Page: 2019-04-04 V5 R0 9106 - Product version 9106-002...
  • Page 33 Ex input : External current source CH1 (terminal 41,42) CH2 (terminal 51,52) 0 mA 0 mW 30 V 120 mA 0.85 W 2 nF 0 μH Revision date: Version Revision Prepared by: Page: 2019-04-04 V5 R0 9106 - Product version 9106-002...
  • Page 34 0.818F 2.85 F 4.14 mH 16.58 mH 33.17 mH 3.85 mH 15.43 mH 30.86 mH -------- 223 µH/Ω 447 µH/Ω --------- 234 µH/Ω 468 µH/Ω Revision date: Version Revision Prepared by: Page: 2019-04-04 V5 R0 9106 - Product version 9106-002...
  • Page 35 Ex input : External current source 1 to 2 (terminal 91,92,93,94,95) CH1 (terminal 42) : 253V, max 400Hz CH2 (terminal 51) 0 mA 30 V 120 mA 0.85 W 4 nF 0 μH Revision date: Version Revision Prepared by: Page: 2019-04-04 V5 R0 9106 - Product version 9106-002...

  • Page 36: Ul Installation Drawing

    For Installation in Div2/Zone2 the following must be observed. The 4501 programming module is to be used solely with PR electronics modules. It is important that the module is undamaged and has not been altered or modified in any way. Only 4501 modules free of dust and moisture shall be installed.
  • Page 37 The 9106B may also be connected to a simple apparatus as defined in Article 504.2 and installed and temperature classified in accordance with Article 504.10(D) of the National Electrical Code (ANSI/NFPA 70), or other local codes, as applicable. Revision date: Version Revision Prepared by: Page: 2019-06-20 V1 R0 9106 - Product version 9106-002...
  • Page 38 32 VAC / 32 VDC Power max.: 62,5 VA / 32 W 16 VA / 32 W Current max.: 0.5 AAC / 0.3 ADC 0.5 AAC / 1 ADC Revision date: Version Revision Prepared by: Page: 2019-06-20 V1 R0 9106 - Product version 9106-002...
  • Page 39 3.86 mH 15.43 mH 30.86 mH La or L 4.15 mH 16.59 mH 33.17 mH -------- 223 µH/Ω 447 µH/Ω --------- 234 µH/Ω 468 µH/Ω Revision date: Version Revision Prepared by: Page: 2019-06-20 V1 R0 9106 - Product version 9106-002...
  • Page 40 0 mA 0 mW Vmax or U : 30 V Imax or I 120 mA Pmax or P : 0.85 W 2 nF 0 μH Revision date: Version Revision Prepared by: Page: 2019-06-20 V1 R0 9106 - Product version 9106-002...
  • Page 41 4.15 mH 16.59 mH 33.17 mH La or L 3.86 mH 15.43 mH 30.86 mH -------- 223 µH/Ω 447 µH/Ω --------- 234 µH/Ω 468 µH/Ω Revision date: Version Revision Prepared by: Page: 2019-06-20 V1 R0 9106 - Product version 9106-002...
  • Page 42 Voc or U Isc or I 0 mA Vmax orU 30 V Imax or I 120 mA Pmax or Pi: 0.85 W 4 nF 0 μH Revision date: Version Revision Prepared by: Page: 2019-06-20 V1 R0 9106 - Product version 9106-002...
  • Page 43 Para a instalação de trilho de energia na Zona 2, apenas o trilho de alimentação Rail 9400 fornecido pela Unidade de Controle de Potência 9410 é permitido. Revision date: Version Revision Prepared by: Page: 2016-11-30 V5 R0 9106 - Product version 9106-002...

  • Page 44: Desenho De Instalaçao Inmetro

    33,17 mH 54,42 mH 3,86 mH 15,43 mH 30,86 mH 50,64 mH -------- 223 µH/Ω 447 µH/Ω 733 µH/Ω --------- 234 µH/Ω 468 µH/Ω 769 µH/Ω Revision date: Version Revision Prepared by: Page: 2016-11-30 V5 R0 9106 - Product version 9106-002...
  • Page 45 Entrada Ex: Fonte de corrente externa CN1 (terminal 41,42) CN2 (terminal 51,52) 0 mA 0 mW 30 V 120 mA 0,85 W 2 nF 0 μH Revision date: Version Revision Prepared by: Page: 2016-11-30 V5 R0 9106 - Product version 9106-002...
  • Page 46 33,17 mH 54,42 mH 3,86 mH 15,43 mH 30,86 mH 50,64 mH -------- 223 µH/Ω 447 µH/Ω 733 µH/Ω --------- 234 µH/Ω 468 µH/Ω 769 µH/Ω Revision date: Version Revision Prepared by: Page: 2016-11-30 V5 R0 9106 - Product version 9106-002...
  • Page 47 Entrada Ex: Fonte de corrente externa 1 a 2 CN1 (terminal 42) CN2 (terminal 51) 0 mA 30 V 120 mA 0,85 W 4 nF 0 μH Revision date: Version Revision Prepared by: Page: 2016-11-30 V5 R0 9106 - Product version 9106-002...
  • Page 48 The following list provides notes concerning revisions of this document. Rev. ID Date Notes 1703 Installation drawings updated Ex barrier data changed Specifications for max. required power added 1931 9106A-version included in manual Variant with UL 913 approval added CCOE approval discontinued 9106 - Product version 9106-002...

  • Page 49: Document History

    We are near you, all over the world Our trusted red boxes are supported wherever you are All our devices are backed by expert service and a 5-year business with a global reach. This means that we are warranty. With each product you purchase, you receive always nearby and know your local markets well.
  • Page 50 Benefit today from PERFORMANCE MADE SMARTER PR electronics is the leading technology company specialized in making industrial process control safer, more reliable and more efficient. Since 1974, we have been dedicated to perfecting our core competence of innovating high precision technology with low power consumption.
