PR electronics 9106B Product Manual

Hart transparent repeater
Hide thumbs Also See for 9106B:
Table of Contents

Advertisement

Quick Links

Download this manual
Product manual
9106B
HART transparent repeater
T E M P E R AT U R E
|
I . S . I N T E R FA C E S
No. 910 6V105- UK
Produc t ver sion: 910 6 - 0 02
CCOE
|
CO M M U N I C AT I O N I N T E R FA C E S
|
M U LT I F U N C T I O N A L
|
I S O L AT I O N
PERFORMANCE
MADE
SMARTER
|
D I S P L AY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9106B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PR electronics 9106B

Summary of Contents for PR electronics 9106B

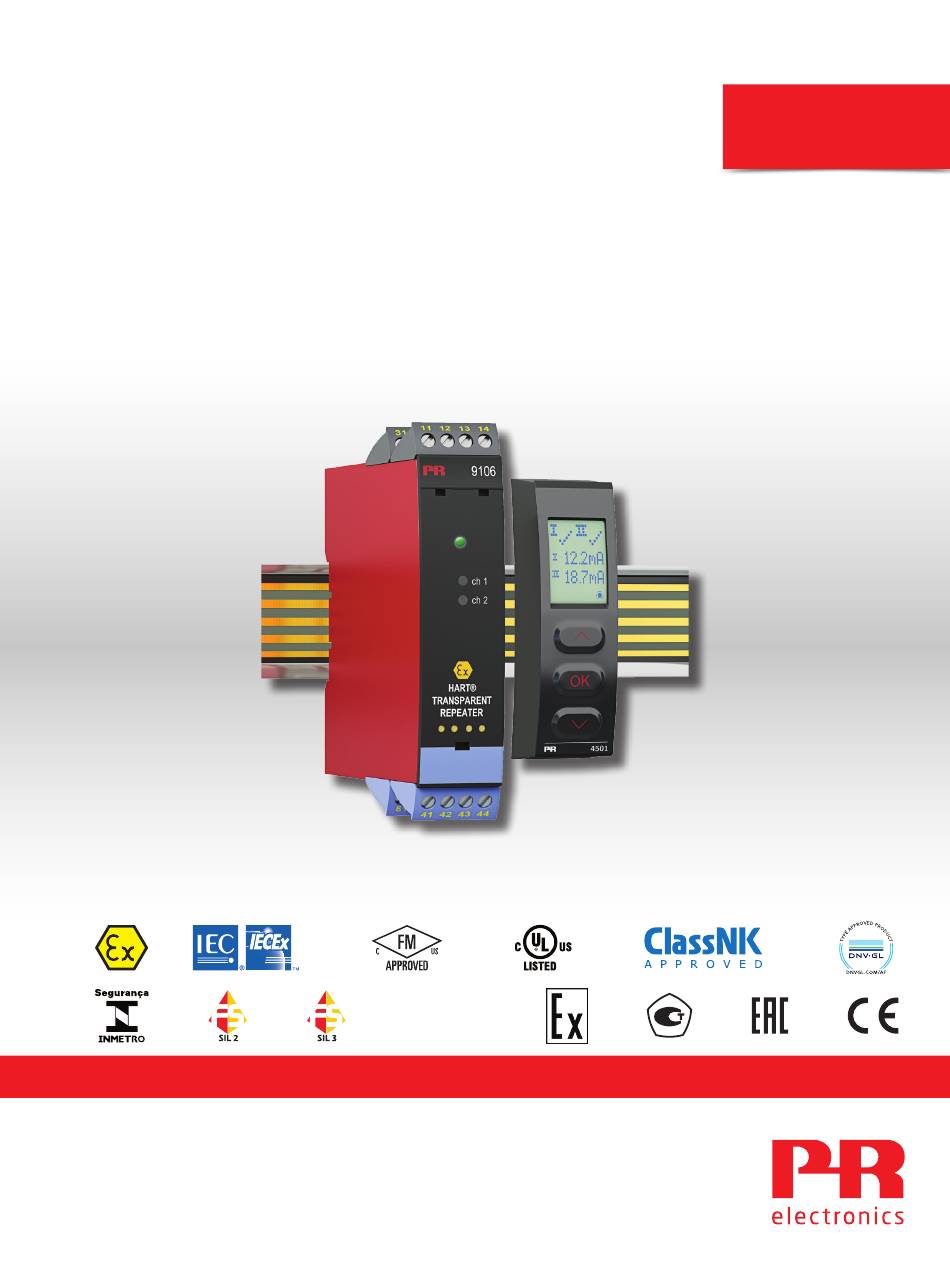

  • Page 1 PERFORMANCE MADE SMARTER Product manual 9106B HART transparent repeater CCOE T E M P E R AT U R E I . S . I N T E R FA C E S CO M M U N I C AT I O N I N T E R FA C E S...
  • Page 2 6 Product Pillars to meet your every need Individually outstanding, unrivalled in combination With our innovative, patented technologies, we make signal conditioning smarter and simpler. Our portfolio is composed of six product areas, where we offer a wide range of analog and digital devices covering over a thousand applications in industrial and factory automation.

  • Page 3: Table Of Contents

    HART TRANSPARENT REPEATER 9106B Table of contents Warning ....................

  • Page 4: Warning

    General mounting, wire connection and disconnection. Troubleshooting the device. Repair of the device and replacement of circuit breakers must be done by PR electronics A/S only. Warning Do not open the front plate of the device as this will cause damage to the connector for the display / programming front PR 4511/4501.

  • Page 5: How To Demount System 9000

    Should there be any doubt as to the correct handling of the device, please contact your local distributor or, alternatively, PR electronics A/S www.prelectronics.com The use of stranded wires is not permitted for mains wiring except when wires are fitted with cable ends.

  • Page 6: Application

    • 9106B can be mounted in the safe area or in zone 2 / Cl. 1, div. 2 and receive signals from zone 0, 1, 2 and zone 20, 21, 22 including mining / Class I/II/III, Div. 1, Gr. A-G.

  • Page 7: Applications

    Applications Input signals: Output signals: Analog, 4...20 mA Channel 1 Channel 1 2-wire transmitter Passive 2-wire Current Channel 2 Power rail Status relay signal Rail, supply + Rail, supply - No connection No connection Power connection: Channel 2 Supply - 2-wire transmitter Supply +19.2...31.2 VDC...

  • Page 8: Pr 4501 Display / Programming Front

    Functions and configuration options are described in the section ”Configuration / operating the function keys”. Application • Communications interface for modification of operational parameters in 9106B. • When mounted in the process, the display shows process values and device status. Technical characteristics •...

  • Page 9: Order

    Order Type Barrier version Unit channels 9106B Uo = 27.5 V Single Uo = 25.3 V Double Example : 9106B2B Accessories 4501 = Display / programming front 4511 = Communication enabler ST9106-01 = Short-circuit bridge for 9106 output 9400 = Power rail...
  • Page 10 Max. power Max. required Type Description dissipation power Passive input 9106B1A 1 ch. (Ex Uo 27.5 V) ≤ 0.8 W ≤ 1.1 W 9106B1B 2 ch. (Ex Uo 27.5 V) ≤ 1.2 W ≤ 1.9 W 9106B2A 1 ch. (Ex Uo 25.3 V) ≤...
  • Page 11 Ex barrier data: B1x: ......... . . Uo = 27.5 V Io = 92.6 mA Po = 0.64 W B2x: .

  • Page 12: Visualisation In 4511/4501 Of Hardware/Software Error

    Visualisation in 4511/4501 of hardware/software error Readout at hardware error Error search Readout Cause Communications test 4511/4501 and 9106 NO.CO Connection error Configuration error or CRC mismatch, recovery EEprom error - check configuration FL.ER configuration is loaded User error II ! / II ! Loop limit exceeded User error II ! / II !

  • Page 13: Connections

    Connections Power rail Supply and connections status relay 91 92 93 94 95 31 32 N.C. NC = no connection Ex inputs - SIL 2: 2-wire transmitter Current 2-wire transmitter Current Ex inputs - SIL 3: Current 2-wire transmitter Current Current Outputs: Current...

  • Page 14: Block Diagram

    16.0mA Ch. 1 status, Red Ch. 2 status, Red FLASH Status relay N.C. Status relay N.C. 2-wire transmitter 2-wire supply 4...20 mA Channel 1 Gnd. 2-wire supply 2-wire transmitter 4...20 mA Channel 2 Gnd. 9106B 9106 - Product version 9106-002...

  • Page 15: Signal Error Indications Without Display Front

    Signal error indications without display front List of LED and error signal indications Ch. 1: Ch. 2: Power rail Condition Green LED Status relay, N.C. signal status Device OK Blinking Energized No supply De-energized Device defective Blinking De-energized Ch. 1 defective (ch. 2 OK) Blinking De-energized Ch.

  • Page 16: Configuration / Operating The Function Keys

    Configuration / operating the function keys Documentation for routing diagram. In general When configuring the 9106, you will be guided through all parameters and you can choose the settings which fit the application. For each menu there is a scrolling help text which is automatically shown in line 3 on the display. Configuration is carried out by use of the 3 function keys: will increase the numerical value or choose the next parameter will decrease the numerical value or choose the previous parameter...

  • Page 17: Routing Diagram

    Routing diagram If no key is activated for 1 minute, the display will return to the default state 1.0 without saving configuration changes. 1 Increase value / choose next parameter 2 Decrease value / choose previous parameter 3 Save the chosen value and proceed to the next menu Hold 3 Back to previous menu / return to menu 1.0 without saving.

  • Page 18: Routing Diagram, Advanced Settings (Adv.set)

    Routing diagram, advanced settings (ADV.SET) DISP, PASS, LANG, RAIL LOOP DISP LOOP TAG1 TAG2 SETUP CONTRA DISP LIGHT TAGNO TAGNO Txt 6 Txt 9 Txt 12 Txt 10 Txt 11 Txt 11 9999 0000 PASS 0000 SETUP EN.PASS NEW.PAS Txt 6 Txt 15 Txt 16 To default...

  • Page 19: Help Text Overview

    Help text overview [01] Set correct password [PASS] [02] Enter advanced setup [ADV.SET] [03] Set low limit for loop error detection [LO.LIM1] [LO.LIM2] [04] Set high limit for loop error detection [HI.LIM1] [HI.LIM2] [05] Enable rail status signal output? [RAIL.ER] Enter display setup [SETUP] [06] Enter password setup [SETUP]...

  • Page 20: Appendix

    Appendix IECEx installation drawing ATEX Installation Drawing FM Installation Drawing Desenho de Instalaçao INMETRO Safety Manual 9106 - Product version 9106-002...

  • Page 21: Iecex Installation Drawing

    LERBAKKEN 10, 8410 RØNDE DENMARK IECEx Installation drawing For safe installation of 9106B the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
  • Page 22 9106QI01 LERBAKKEN 10, 8410 RØNDE DENMARK Hazardous area Non Hazardous area (terminal 11,12,13,14) Zone 0,1,2, 20, 21, 22 or Zone 2 (terminal 31,32,33,34) (terminal 91,92,93,94,95) -20 ≤Ta ≤ +60ºC : 253 V, max. 400 Hz 4501 9106 91 92 93 94 95 Power Rail 9106B1A, 9106B1B...
  • Page 23 9106QI01 LERBAKKEN 10, 8410 RØNDE DENMARK Hazardous area Non Hazardous area (terminal 11,12,13,14) Zone 0,1,2, 20, 21, 22 or Zone 2 (terminal 31,32,33,34) (terminal 91,92,93,94,95) -20 ≤Ta ≤ +60ºC : 253 V, max. 400 Hz 4501 9106 91 92 93 94 95 Power Rail 9106B1A, 9106B1B, 9106B2A, 9106B2B...
  • Page 24 9106QI01 LERBAKKEN 10, 8410 RØNDE DENMARK Hazardous area Non Hazardous area (terminal 11,12,13,14) Zone 0,1, 2, 20, 21, 22 or Zone 2 (terminal 31,32,33,34) (terminal 91,92,93,94,95) : 253 V, max. 400 Hz -20 ≤Ta ≤ +60ºC 4501 9106 91 92 93 94 95 Power Rail 9106B1A, 9106B1B...
  • Page 25 9106QI01 LERBAKKEN 10, 8410 RØNDE DENMARK (terminal 11,12,13,14) Hazardous area Non Hazardous area (terminal 31,32,33,34) Zone 0,1,2, 20, 21, 22 or Zone 2 (terminal 91,92,93,94,95) : 253 V, max. 400 Hz -20 ≤Ta ≤ +60ºC 4501 9106 91 92 93 94 95 Power Rail 9106B1A, 9106B1B, 9106B2A, 9106B2B...

  • Page 26: Atex Installation Drawing

    LERBAKKEN 10, 8410 RØNDE DENMARK ATEX Installation drawing For safe installation of 9106B the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
  • Page 27 9106QA01 LERBAKKEN 10, 8410 RØNDE DENMARK Hazardous area Non Hazardous area (terminal 11,12,13,14) Zone 0,1,2, 20, 21, 22 or Zone 2 (terminal 31,32,33,34) (terminal 91,92,93,94,95) -20 ≤Ta ≤ +60ºC : 253 V, max. 400 Hz 4501 9106 91 92 93 94 95 Power Rail 9106B1A, 9106B1B...
  • Page 28 9106QA01 LERBAKKEN 10, 8410 RØNDE DENMARK Hazardous area Non Hazardous area (terminal 11,12,13,14) Zone 0,1,2, 20, 21, 22 or Zone 2 (terminal 31,32,33,34) (terminal 91,92,93,94,95) -20 ≤Ta ≤ +60ºC : 253 V, max. 400 Hz 4501 9106 91 92 93 94 95 Power Rail 9106B1A, 9106B1B, 9106B2A, 9106B2B...
  • Page 29 9106QA01 LERBAKKEN 10, 8410 RØNDE DENMARK Hazardous area Non Hazardous area (terminal 11,12,13,14) Zone 0,1, 2, 20, 21, 22 or Zone 2 (terminal 31,32,33,34) (terminal 91,92,93,94,95) : 253 V, max. 400 Hz -20 ≤Ta ≤ +60ºC 4501 9106 91 92 93 94 95 Power Rail 9106B1A, 9106B1B...
  • Page 30 9106QA01 LERBAKKEN 10, 8410 RØNDE DENMARK (terminal 11,12,13,14) Hazardous area Non Hazardous area (terminal 31,32,33,34) Zone 0,1,2, 20, 21, 22 or Zone 2 (terminal 91,92,93,94,95) : 253 V, max. 400 Hz -20 ≤Ta ≤ +60ºC 4501 9106 91 92 93 94 95 Power Rail 9106B1A, 9106B1B, 9106B2A, 9106B2B...

  • Page 31: Fm Installation Drawing

    LERBAKKEN 10, 8410 RØNDE DENMARK FM Installation drawing For safe installation of 9106B the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
  • Page 32 9106QF01 LERBAKKEN 10, 8410 RØNDE DENMARK Hazardous Classified Location Unclassified Location or Class I/II/III, Division 1, Group A,B,C,D,E,F,G Hazardous Classified Location Zone 0,1, 2 Group IIC, IIB, IIA or Class I, Division 2, Group ABCD T4 Zone 20, 21 Class I Zone 2 Group IIC T4 -20 ≤Ta ≤...
  • Page 33 9106QF01 LERBAKKEN 10, 8410 RØNDE DENMARK Hazardous Classified Location Unclassified Location or Hazardous Classified Location Class I/II/III, Division 1, Group A,B,C,D,E,F,G Zone 0,1, 2 Group IIC, IIB, IIA or Class I, Division 2, Group ABCD T4 Zone 20, 21 Class I Zone 2 Group IIC T4 -20 ≤Ta ≤...
  • Page 34 9106QF01 LERBAKKEN 10, 8410 RØNDE DENMARK Hazardous Classified Location Unclassified Location or Class I/II/III, Division 1, Group A,B,C,D,E,F,G Hazardous Classified Location Zone 0,1, 2 Group IIC, IIB, IIA or Class I, Division 2, Group ABCD T4 Zone 20, 21 Class I Zone 2 Group IIC T4 -20 ≤Ta ≤...
  • Page 35 9106QF01 LERBAKKEN 10, 8410 RØNDE DENMARK Hazardous Classified Location Unclassified Location or Hazardous Classified Location Class I/II/III, Division 1, Group A,B,C,D,E,F,G Zone 0,1, 2 Group IIC, IIB, IIA or Class I, Division 2, Group ABCD T4 Zone 20, 21 Class I Zone 2 Group IIC T4 4501 -20 ≤Ta ≤...

  • Page 36: Desenho De Instalaçao Inmetro

    LERBAKKEN 10, 8410 RØNDE DENMARK INMETRO - Desenhos para Instalação Para instalação segura do 9106B o manual seguinte deve ser observado. O módulo deve ser instalado somente por profissionais qualificados que estão familiarizados com as leis nacionais e internacionais, diretrizes e normas que se aplicam a esta área.
  • Page 37 9106QB01 LERBAKKEN 10, 8410 RØNDE DENMARK Área de Risco Área de não Risco (terminais 11,12,13,14) Zona 0,1,2, 20, 21, 22 ou Zona 2 (terminais 31,32,33,34) (terminais 91,92,93,94,95) -20 ≤Ta ≤ +60ºC : 253 V, máx. 400 Hz 4501 9106 91 92 93 94 95 TRILHO DE ENERGIA 9106B1A, 9106B1B...
  • Page 38 9106QB01 LERBAKKEN 10, 8410 RØNDE DENMARK Área de Risco Área de não Risco (terminais 11,12,13,14) Zona 0,1,2, 20, 21, 22 ou Zona 2 (terminais 31,32,33,34) (terminais 91,92,93,94,95) -20 ≤Ta ≤ +60ºC : 253 V, máx. 400 Hz 4501 9106 91 92 93 94 95 TRILHO DE ENERGIA 9106B1A, 9106B1B, 9106B2A, 9106B2B...
  • Page 39 9106QB01 LERBAKKEN 10, 8410 RØNDE DENMARK Área de Risco Área de não Risco (terminais 11,12,13,14) Zona 0,1, 2, 20, 21, 22 ou Zona 2 (terminais 31,32,33,34) (terminais 91,92,93,94,95) : 253 V, máx. 400 Hz -20 ≤Ta ≤ +60ºC 4501 9106 91 92 93 94 95 TRILHO DE ENERGIA...
  • Page 40 9106QB01 LERBAKKEN 10, 8410 RØNDE DENMARK (terminais 11,12,13,14) Área de Risco Área de não Risco (terminais 31,32,33,34) Zona 0,1,2, 20, 21, 22 ou Zona 2 (terminais 91,92,93,94,95) : 253 V, máx. 400 Hz -20 ≤Ta ≤ +60ºC 4501 9106 91 92 93 94 95 TRILHO DE ENERGIA 9106B1A, 9106B1B, 9106B2A, 9106B2B...

  • Page 41: Document History

    Document history The following list provides notes concerning revisions of this document. Rev. ID Date Notes 1703 Installation drawings updated Ex barrier data changed Specifications for max. required power added 9106 - Product version 9106-002...
  • Page 42 We are near you, all over the world Our trusted red boxes are supported wherever you are All our devices are backed by expert service and a 5-year business with a global reach. This means that we are warranty. With each product you purchase, you receive always nearby and know your local markets well.
  • Page 43 Benefit today from PERFORMANCE MADE SMARTER PR electronics is the leading technology company specialized in making industrial process control safer, more reliable and more efficient. Since 1974, we have been dedicated to perfecting our core competence of innovating high precision technology with low power consumption.
