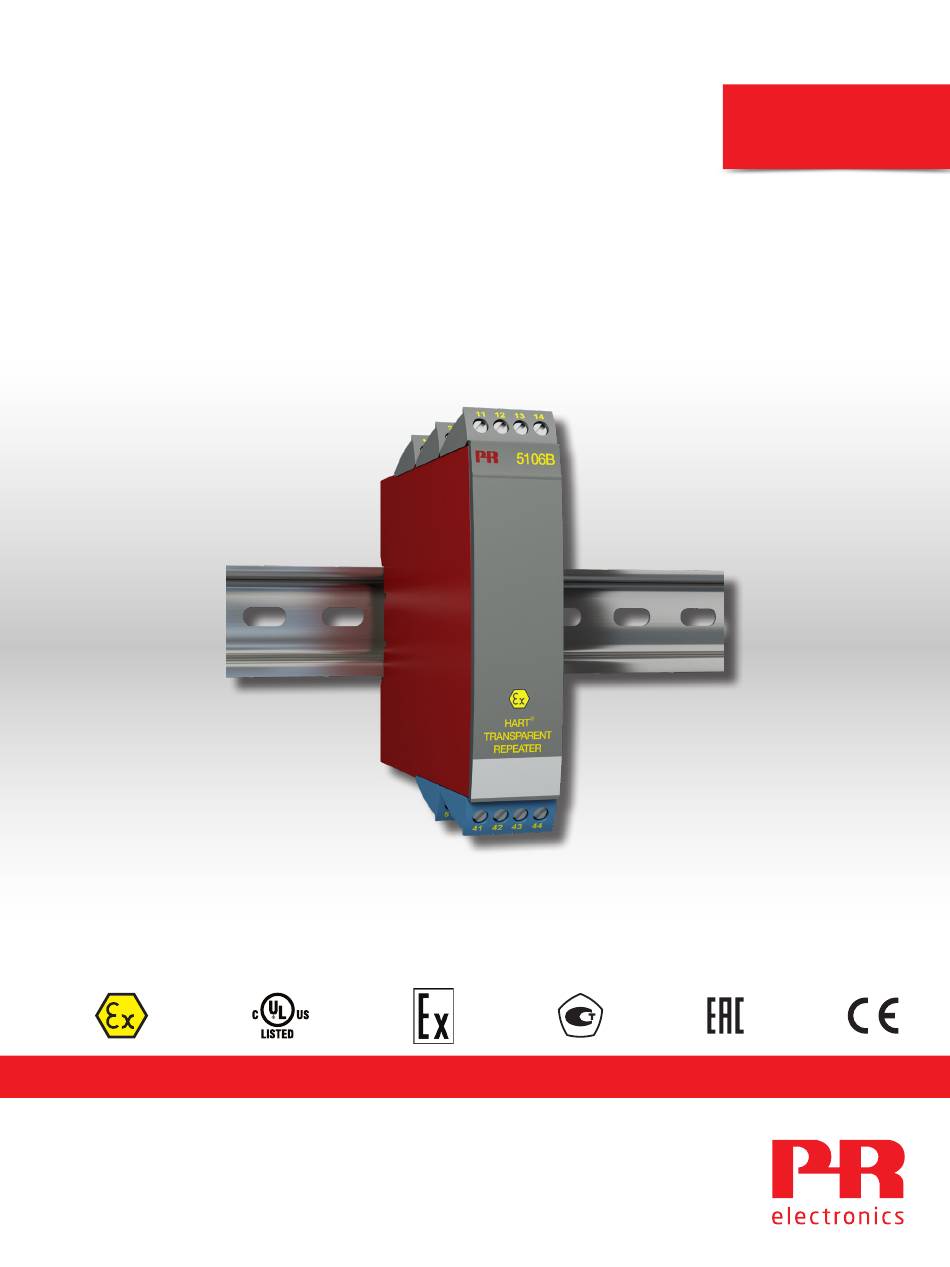

  • Page 1 PERFORMANCE MADE SMARTER Product manual 5106 HART transparent repeater T E M P E R AT U R E I . S . I N T E R FA C E S CO M M U N I C AT I O N I N T E R FA C E S...
  • Page 2 6 Product Pillars to meet your every need Individually outstanding, unrivalled in combination With our innovative, patented technologies, we make signal conditioning smarter and simpler. Our portfolio is composed of six product areas, where we offer a wide range of analog and digital devices covering over a thousand applications in industrial and factory automation.

  • Page 3: Table Of Contents

    HART transparent repeater 5106 Table of contents Warning ....................

  • Page 4: Warning

    General mounting, wire connection and disconnection. Troubleshooting the device. VOLTAGE Repair of the device and replacement of circuit breakers must be done by PR electronics A/S only. Warning SYSTEM 5000 must be mounted on a DIN rail according to DIN 60715.

  • Page 5: Safety Instructions

    Should there be any doubt as to the correct handling of the device, please contact your local distributor or, alternatively, PR electronics A/S www.prelectronics.com Mounting and connection of the device should comply with national legislation for mounting of electric materials, i.e. wire cross section, protective fuse, and location.

  • Page 6: How To Demount System 5000

    How to demount system 5000 First, remember to demount the connectors with hazardous voltages. Picture 1: By lifting the bottom lock, the device is detached from the DIN rail. Picture 2: By lifting the upper lock and pulling the front plate simultaneously the PCB can be removed.
  • Page 7 Applications 2-wire transmitter Output Supply Current, mA Output Supply 5116V104-UK...

  • Page 8: Application

    HART transparent repeater 5106 • 3- / 5-port 3.75 kVAC galvanic isolation • Low response time • 2-wire supply > 17 V • 1- or 2-channel version • Universal AC or DC supply Application • Power supply and signal isolator with 2-way HART communication for 2-wire transmitters.

  • Page 9: Order

    Order Type Version Input Output Channels 5106 Standard 4…20 mA : B 4…20 mA Single [EEx ia] II C 20...4 mA Double Electrical specifications Environmental conditions Operating temperature ....... . -20°C to +60°C Calibration temperature.
  • Page 10 Current input Measurement range ........3.5...23 mA Min.

  • Page 11: Connections

    Connections Connections are identical Supply: for channel 1 and channel 2. 24...230 VAC & 24...250 VDC Inputs: Input Input Current 41 / 51 41 / 51 42 / 52 42 / 52 43 / 53 43 / 53 44 / 54 44 / 54 C O M M U N I C AT I O N F O U N D AT I O N C O M M U N I C AT I O N F O U N D AT I O N...

  • Page 12: Block Diagram

    Block diagram 5116V104-UK...

  • Page 13: Ul Control Drawing 5106Qu01

    UL Control Drawing 5106QU01 Hazardous (Classified) Location Nonhazardous Class I, Division 1, Group A,B,C,D Associated apparatus Class I , Zone 0 and 1, Group IIC Galvanically Isolated Class II, Division 1 Group E, F, G Intrinsically safe apparatus entity parameters: Vmax.

  • Page 14: Document History

    Document history The following list provides notes concerning revisions of this document. Rev. ID Date Notes 2507 New EAC Ex certificate. 5116V104-UK...
  • Page 15 We are near you, all over the world Our trusted red boxes are supported wherever you are All our devices are backed by expert service and a 5-year business with a global reach. This means that we are warranty. With each product you purchase, you receive always nearby and know your local markets well.
  • Page 16 Benefit today from PERFORMANCE MADE SMARTER PR electronics is the leading technology company specialized in making industrial process control safer, more reliable and more efficient. Since 1974, we have been dedicated to perfecting our core competence of innovating high precision technology with low power consumption.
