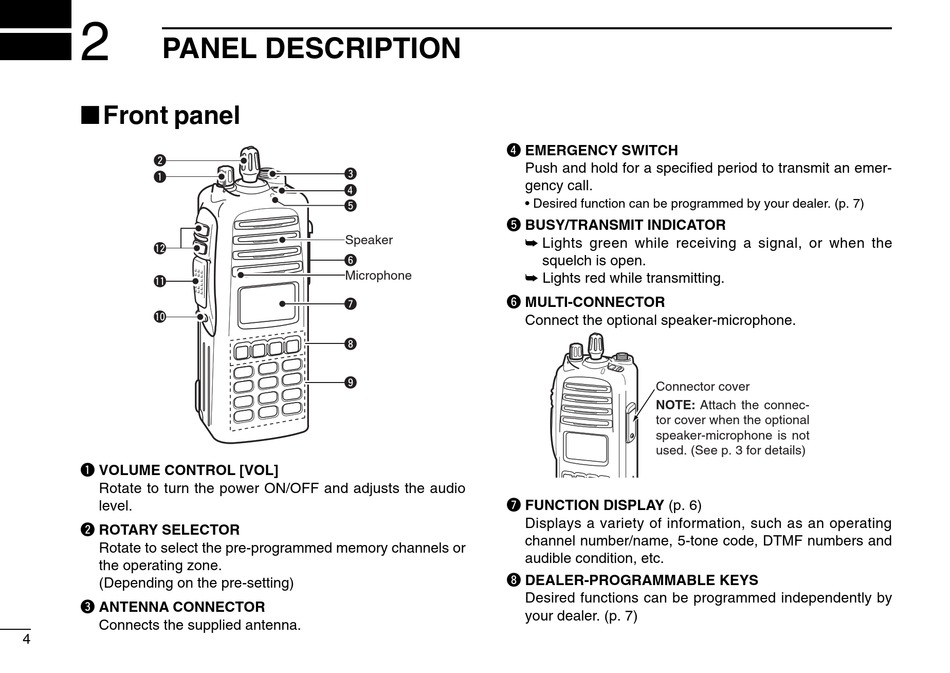

PANEL DESCRIPTION

I Front panel

w
q
!2
!1
!0
q VOLUME CONTROL [VOL]
Rotate to turn the power ON/OFF and adjusts the audio
level.
w ROTARY SELECTOR
Rotate to select the pre-programmed memory channels or
the operating zone.
(Depending on the pre-setting)
e ANTENNA CONNECTOR
Connects the supplied antenna.
4
r EMERGENCY SWITCH
e
r
t
t BUSY/TRANSMIT INDICATOR
Speaker
y
Microphone
y MULTI-CONNECTOR
u
i
o
u FUNCTION DISPLAY (p. 6)
i DEALER-PROGRAMMABLE KEYS
Push and hold for a specified period to transmit an emer-
gency call.
• Desired function can be programmed by your dealer. (p. 7)
➥ Lights green while receiving a signal, or when the
squelch is open.
➥ Lights red while transmitting.
Connect the optional speaker-microphone.
Connector cover
NOTE: Attach the connec-
tor cover when the optional
speaker-microphone is not
used. (See p. 3 for details)
Displays a variety of information, such as an operating
channel number/name, 5-tone code, DTMF numbers and
audible condition, etc.
Desired functions can be programmed independently by
your dealer. (p. 7)
