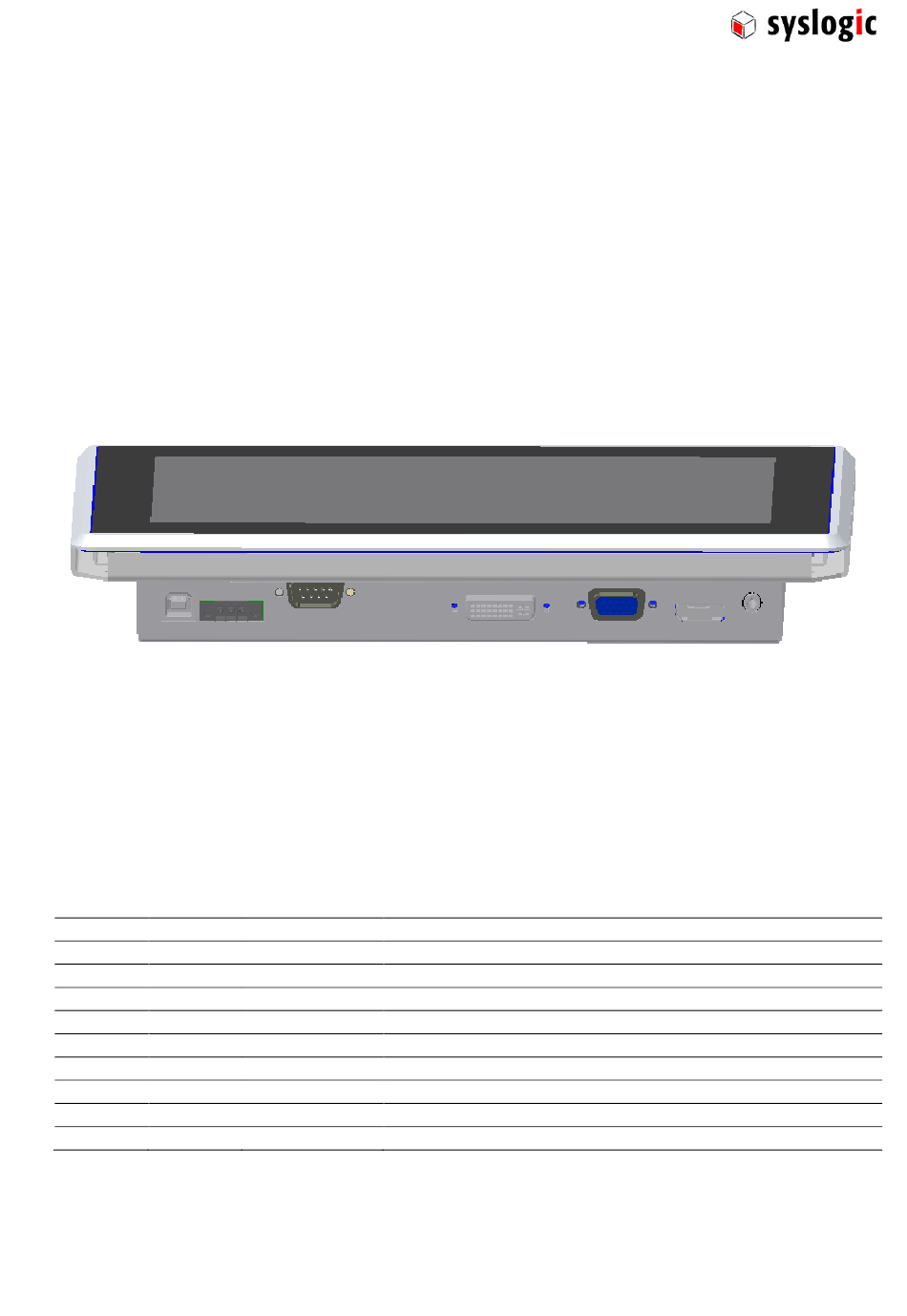

user documentation
TFT/PB101PU-xxxx
Document Ordercode: DOC/PROTOUCH-WIDE_MONITOR
Revision
Date
0.1
15.04.2019
0.2
26.04.2019
0.3
08.08.2019
1.0
08.06.2021
DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx
© 2021 Syslogic Datentechnik AG | All rights reserved
Author
Modification
D. Lagler
Preliminary version
D. Lagler
Replaced graphics in chapter 3.2.4
D. Lagler
Changed Pinout RS232
D. Scheiwiller
Released version
Page 1 of 37
Advertisement
Table of Contents
Related Manuals for syslogic TFT/PB101PU-C
Summary of Contents for syslogic TFT/PB101PU-C
- Page 1 Author Modification 15.04.2019 D. Lagler Preliminary version 26.04.2019 D. Lagler Replaced graphics in chapter 3.2.4 08.08.2019 D. Lagler Changed Pinout RS232 08.06.2021 D. Scheiwiller Released version DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Page 1 of 37 © 2021 Syslogic Datentechnik AG | All rights reserved...
-
Page 2: Table Of Contents
2.4.5 DisplayPort 2.4.6 USB Interface 2.4.7 Status LED 2.4.8 On Screen Display OSD (only on selected products) Menu tree 15 2.4.9 X1 (only on selected products) DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 2 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved... - Page 3 Use cases Fehler! Textmarke nicht definiert. 5 Firmware Software Structure Firmware Functions 6 Product Revision History Hardware Firmware Errata 7 Manufacturer Information Contact Warranty RMA Service DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 3 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved...
- Page 4 Additional grounding of the cable shields at the entry point of a cabinet Fig. 8 Isolated communication link Fig. 9 Non-isolated communication link with common chassis potential Fig. 10 TFT/HB101PU mechanical dimensions Related Documents DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 4 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved...
-
Page 5: Introduction
Note that the documentation for the products is constantly revised and improved. The right to change this documentation at any time without notice is therefore reserved. Syslogic is grateful for any help referring to errors or for suggestions for improvements. The following registered trademarks are used:... -
Page 6: Information Pictograms Indicate The Following
Syslogic Datentechnik AG. Syslogic Datentechnik AG does not accept any liability for damages arising from the use of any incorrect or incomplete information contained in this documentation or any information missing. -
Page 7: Items Delivered
This is a Class A product and not intended to be used in domestic environment. The product may cause electromagnetic interference. Appropriate measures must be taken. DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 7 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved... -
Page 8: Electro Static Discharge
The main functionality of the product is defined by the application program. The application program is not part of the delivery by Syslogic but is defined, developed and tested by the customer or a system-integrator for each specific application. Refer to the respective documentation for more information. -
Page 9: Maintenance And Repair
The products of the PROTOUCH-WIDE MONITOR family are not designed ready for operation for the end-user and are not intended for consumer applications. According to Waste Electrical and Electronic Equipment (WEEE) Directive (2002/96/EC) Syslogic takes back defective devices for proper disposal at the point of sale. -
Page 10: Product Description
Connections TFT/PB101PU-N001E 10.1” WXGA Flush mounting Displayport, DVI, VGA, USB TFT/PV101PU-N001E 10.1” WXGA VESA mounting Displayport, DVI, VGA, USB Tab. 1 Projected capacitive touch monitor versions DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 10 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved... -
Page 11: Accessories
Tab. 2 Projected capacitive touch panel accessories Features 2.4.1 TFT/PB101PU-N001E Ground fixation Power Displayport Supply Fig. 1 TFT/PB101PU-N001E (Front) Status LED OSD-Buttons Fig. 2 TFT/PB101PU-N001E (Back) DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 11 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved... -
Page 12: Power Supply
Maximum cable length allowed for display connection is 3 m. If longer cables are used, special overvoltage and filtering elements must be installed to comply with the requirements of EMI/RFI -certification. Only use high quality industrial devices with sufficient EMI compatibility. DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 12 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved... -
Page 13: Dvi
LANE3+ LANE 2- LANE 2+ LANE 1- LANE 1+ LANE 0- LANE 0+ C.E.C. AUX CH+ AUX CH- Hot Plug Detect Return for Power DP Power DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 13 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved... -
Page 14: Usb Interface
Enter sub-menu, decrease key or left key Enter sub-menu, increase key or right key Source Open Source select menu Power on/off Tab. 5 OSD key description DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 14 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved... -
Page 15: Menu Tree
PROTOUCH-WIDE MONITOR: user documentation DOC/PROTOUCH-WIDE_MONITOR; V1.0 Menu tree Fig. 3 OSD menu tree DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 15 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved... -
Page 16: X1 (Only On Selected Products)
BB: String of command function CC: String of set or get value DD: Blank string, normally 00 EE: added string to meet check sum Baud rate: 9600 DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 16 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved... -
Page 17: Tab. 7 Rs232 Communication Protocol
BF 10 00 00 30 Contrast 30 BF 10 23 00 0D Contrast 35 BF 10 5° 00 D6 Contrast 90 Tab. 7 RS232 communication protocol DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 17 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved... -
Page 18: Internal Connectors
Depending on the driver version and Operating System the PCT touch supports Multi-touch up to 5 points. Which means you can operate the touch screen with more than one finger for drawing or selecting. DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 18 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved... -
Page 19: Maintenance
Make sure the device has cooled down to room temperature Only open the device in an ESD protected area 2.7.1 Opening the device TFT/PB101PU Loosen the four screws fixing the housing Tool: Torx screwdriver T10 DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 19 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved... - Page 20 Carefully remove the electronics box Important Note Be careful not to tear the cables for display and touch Detach the cables to the display and touch DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 20 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved...
-
Page 21: Tft/Pv101Pu
Tool: Torx screwdriver T10, 1.0Nm 2.7.3 Replace fuse Locate the fuse right behind the power connector Extract with tweezers and replace with same type (Littelfuse 452004.MRL) DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 21 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved... -
Page 22: Cleaning The Glass Front
When cleaning during operation it may happen that input signals are generated. Prevent the system from unwanted and dangerous actions while the front is being cleaned. Make sure the device has cooled down to room temperature DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 22 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved... -
Page 23: Cleaning The Metal Housing
Make sure the device has cooled down to room temperature 2.7.6 Spare parts Designation Type Order number Power supply 24V Desktop Power Supply 60W - 3 pole PSU/DT24V60W-3A Fuse 4A slow-blow Littelfuse 452004.MRL DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 23 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved... -
Page 24: Installation Description
Fig. 5 Required Cut out PBxxxPU8 Mounting Angle: Mounting Angle must be 90° Cooling Space: To ensure cooling leave at least 10cm of free space around product. DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 24 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved... - Page 25 Reattach the mounting frame and fix it into place by reattaching the screws highlighted in red. Required torque: 1.3Nm The product is now installed properly. Wall Projected capacitive touch panel Fig. 7 Fully installed PROTOUCH-WIDE MONITOR DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 25 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved...
-
Page 26: Tft/Pv101Pu-N001E
To ensure cooling leave at least 10cm of free space around product. For best thermal performance use spacer M4 x 5mm between the VESA mounting frame and the device DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 26 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved... -
Page 27: Installation And Cabling
The AC/DC power supply must fulfil the requirements for EMI/RFI -certification. 3.2.3 Cabling the interfaces Use appropriate cabling for all interfaces. Shielded cabling is required to meet the EMI/EMC limits. DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 27 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved... -
Page 28: Grounding
It is better to clamp the shields onto a grounded copper rail. IIndustrial PC System Cabinet Clamping screw nonisolated Chassis shield Cables Fig. 8 Additional grounding of the cable shields at the entry point of a cabinet DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 28 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved... -
Page 29: Cabling Of Communication Links
It is better to clamp the shields onto a grounded copper rail. Fig. 9 Isolated communication link DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 29 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved... - Page 30 PROTOUCH-WIDE MONITOR: user documentation DOC/PROTOUCH-WIDE_MONITOR; V1.0 Fig. 10 Non-isolated communication link with common chassis potential DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 30 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved...
-
Page 31: Technical Data
Maximum ambient temperature is highly dependent on mounting, air flow and usage conditions. Do not connect to lines directly leaving a building without additional safety measures DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 31 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved... -
Page 32: Emi / Emc Specification
To fullfill class A of EN55032 and EN55024 a CE-conformal AC/DC power supply must be used. Cable length between power supply and device is limited to 3m. DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 32 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved... -
Page 33: Mechanical Data
Mechanical Data 4.3.1 TFT/HB101PU Fig. 11 TFT/HB101PU mechanical dimensions DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Page 33 of 37 © 2021 Syslogic Datentechnik AG | All rights reserved... -
Page 34: Firmware
– Capabilities of the device for each display data port Firmware Functions Some functions as brightness and contrast can be configured by the user using the OSD (2.4.8 or the serial port (2.4.9 DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Page 34 of 37 © 2021 Syslogic Datentechnik AG | All rights reserved... -
Page 35: Product Revision History
Therefore, this information may be incompatible with the prototyping board hardware. Device Identification (see product label) Panel file Remarks TFT/PB101PU-N001E TM1280800JVHG32-00_1280x800_V1 TFT/PV101PU-N001E TM1280800JVHG32-00_1280x800_V1 Tab. 16 Firmware Revision State DOC_PROTOUCH-WIDE_MONITOR_V1.0.docx Seite 35 von 37 © 2019 Syslogic Datentechnik AG | All rights reserved... -
Page 36: Errata
This paragraph lists some important errata of the current boards to enable workarounds in user software. Additional errata might be present, but a workaround is already implemented in the firmware. Note that prototype board errata (boards with revision #0) are not listed here. Contact Syslogic technical support for prototype board information. -
Page 37: Seite 2 Von
RMA Service Syslogic offers a Return Material Authorization process to simplify handling of devices that needs to be returned to the manufacturer. Please follow the instructions on our web page: https://www.syslogic.com...
