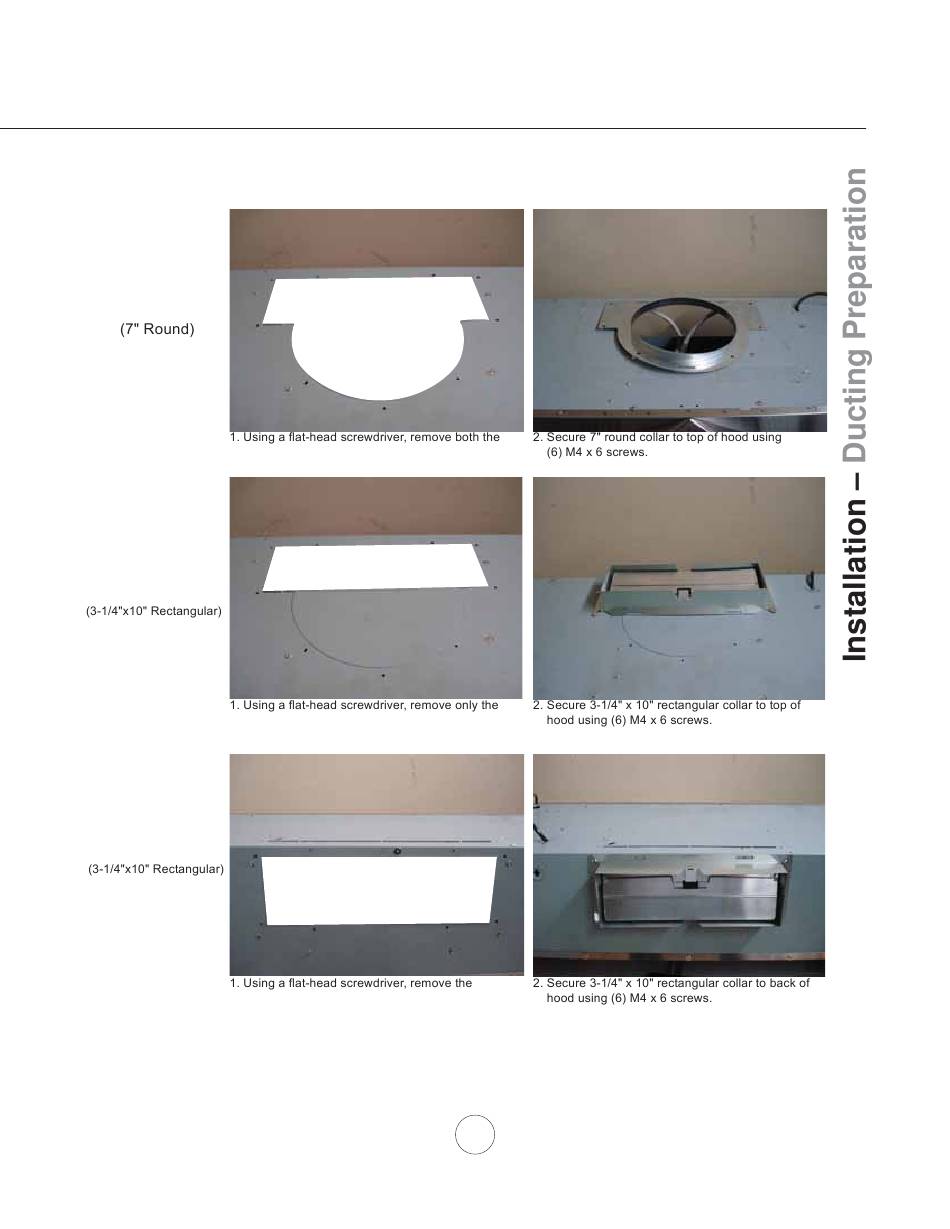

Note: If using hood in recirculating mode skip these steps and turn to page 12.
1 6
Vertical Ducting
2 5
3 4
rectangular and round knock-out plates located on
top of hood
4
3
5
2
Vertical Ducting
6
1
rectangular section of the knock-out plate located
on top of hood.
Horizontal Ducting
4
1 5
2
6
3
rectangular knock-out plate located on back of
hood.
