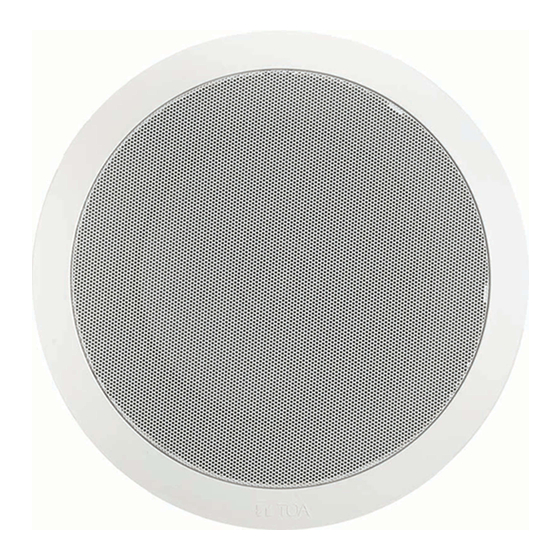

Toa PC-668R Installation Manual

CEILING MOUNT SPEAKERS
Thank you for purchasing TOA's Ceiling Mount Speaker.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

1. SAFETY PRECAUTIONS

• Before installation or use, be sure to carefully read
all the instructions in this section for correct and
safe operation.
• Be sure to follow all the precautionary instructions
in this section, which contain important warnings
and/or cautions regarding safety.
• After reading, keep this manual handy for future
reference.
WARNING
Indicates a potentially hazardous situation
which, if mishandled, could result in death or
serious personal injury.
• Install the unit only in a location that can
structurally support the weight of the unit and the
mounting bracket. Doing otherwise may result in
the unit falling down and causing personal injury
and/or property damage.
• Since the unit is designed for in-door use, do not
install it outdoors. If installed outdoors, the aging of
parts causes the unit to fall off, resulting in personal
injury. Also, when it gets wet with rain, there is a
danger of electric shock.

2. SPECIFICATIONS

Model No.
Rated Input
Rated Impedance
Sensitivity
(500 – 5,000 Hz, pink noise)
Frequency Response
Speaker Component
Dimensions for Fixing Hole
Ceiling Thickness for Mounting
Speaker Mounting Method
Input Connector
Finish
Dimensions
Weight
Accessory
Note: The design and specifications are subject to change without notice for improvement.
PC-668R-AS
15 W (100 V, 70 V line)
100 V line: 670 (15 W), 1 k (10 W), 2 k (5 W), 3.3 k (3 W)
70 V line: 330 (15 W), 670
65 – 20,000 Hz (at 20 dB below peak)
Not Aplicable
Baffle: polypropylene resin, white (RAL 9016 equivalent)
Grille: Surface-treated steel plate net, white (RAL 9016 equivalent), paint
ø280 x 90 (d) mm (ø11.02" x 3.54")
0.96 kg (2.12 lb)
INSTALLATION MANUAL
PC-668RC-AS
• Do not use other methods than specified to mount
the bracket. Extreme force is applied to the unit
and the unit could fall off, possibly resulting in
personal injuries.
CAUTION
Indicates a potentially hazardous situation
which, if mishandled, could result in moderate
or minor personal injury, and/or property
damage.
• Avoid touching the unit's sharp metal edge to
prevent injury.
• To avoid electric shocks, be sure to switch off the
amplifier's power when connecting speakers.
• Do not operate the unit for an extended period of
time with the sound distorting. This is an indication
of a malfunction, which in turn can cause heat to
generate and result in a fire.
(7.5 W), 1 k (5 W), 2 k (2.5 W), 3.3 k (1.5 W)
96 dB (1 W, 1 m)
20 cm (8") double cone type
ø250 ± 5 mm (ø9.84" ±0.2")
5 – 25 mm (0.2" – 0.98")
Spring clamp
Paper pattern ........ 1
PC-668R-AS
PC-668RC-AS
Push-in connector
0.97 kg (2.14 lb)
