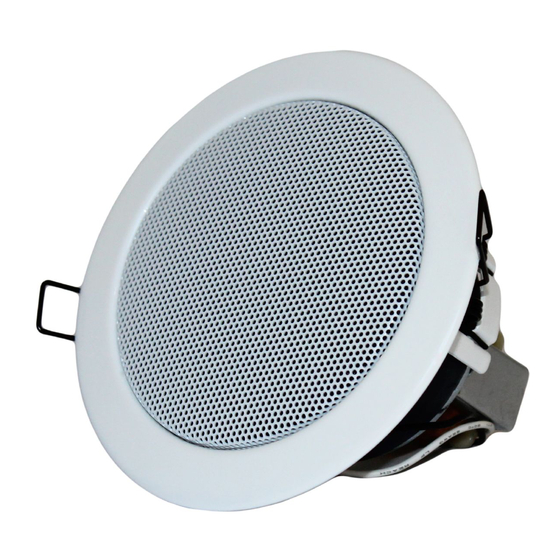

Ceiling Mount Speaker

■ DESCRIPTION

Designed for simple installation. The TOA PC-
6WM-EB Ceiling Mount Speaker is of all metallic
construction and small diameter .
Using spring clips the unit can be quickly installed
in a ceiling.
The input impedance can be easily changed by
changing the connecting terminal.

■ SAFETY PRECAUTIONS

Be sure to follow at the precautionary instructions
in this section, which contain important warnings
and/or cautions regarding safety.
WARNING
Indicates a potentially hazardous situation which,
if mishandled, could result in death or serious
personal injury.
Install the speaker only in a location that can
structurally support the weight of the speaker
and the mounting bracket.
Tighten all thumb screws securely.
Do not install the speaker in outdoor or place
near the sea and indoor swimming pool. The
parts are corroded, causing the speaker to fall.
CAUTION
Indicates a potentially hazardous situation which,
if mishandled, could result in moderate or minor
personal injury, and/or property damage.
Do not touch the sharp edge of metal fittings.
To avoid electric shocks, be sure to switch off
the amplifier power when connecting the
speaker.
Traceability Information for EU (EMC directive 2004/108/EC); manufacturer:
Tel.: +49-(0)40-25 17 19-0 ♦ Fax: +49-(0)40-25 17 19-98 ♦ URL:
PC-6WM-EB Instruction Manual
TOA Electronics Europe GmbH
Süderstraße 282 ♦ 20537 Hamburg ♦ Germany
TOA Corporation
Instruction Manual
PC-6WM-EB

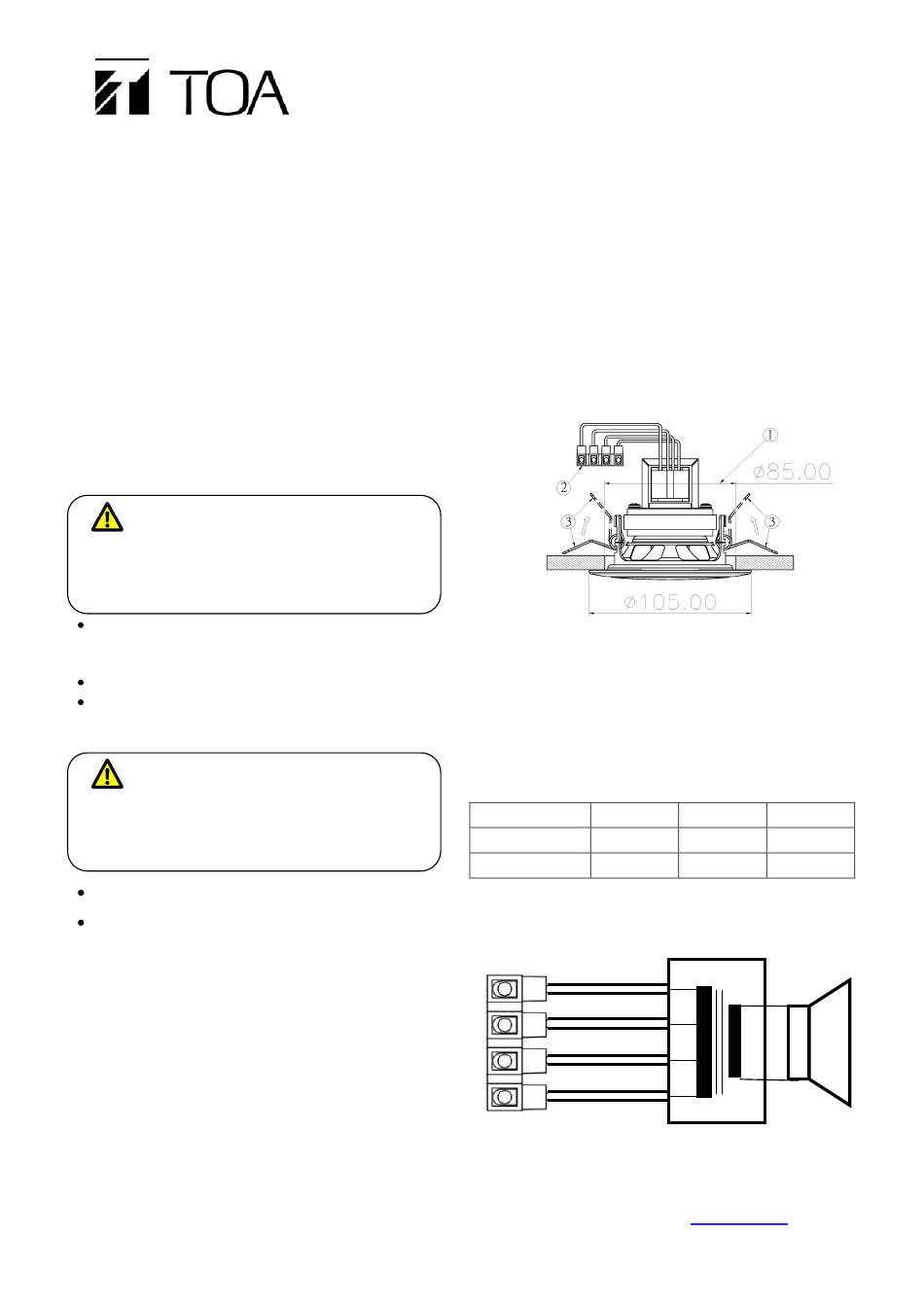

■ INSTALLATION

1. Cutting a φ85mm +5 mm hole.
2. Connecting the input and output cable to
transformer terminal.
3. Pluck the spring up then the speaker will be
fixture on ceiling.

■ IMPEDANCE CHANGE

There are four wires (Red:6W, Yellow:4W,
Green:2W and Black:Com.).Please connect the
speaker cables based on your prefarable wattage.
Power Rating
6W
Wire Color
Red
Impedance
1.7kΩ

■ WIRING DIAGRAM

Matching transformer
Green : 2W (5.0kΩ )
Yellow : 4W (2.5kΩ )
Red : 6W (1.7kΩ )
Black : COM
4W
2W
Yellow
Green
2.5kΩ
5.0kΩ
+
-
0
www.toa.eu
1
